INTERNAL BLOWER WIRING

Note: This range hood must be properly
grounded. The unit should be installed by a
qualified electrician in accordance with all
applicable national and local electrical
codes.

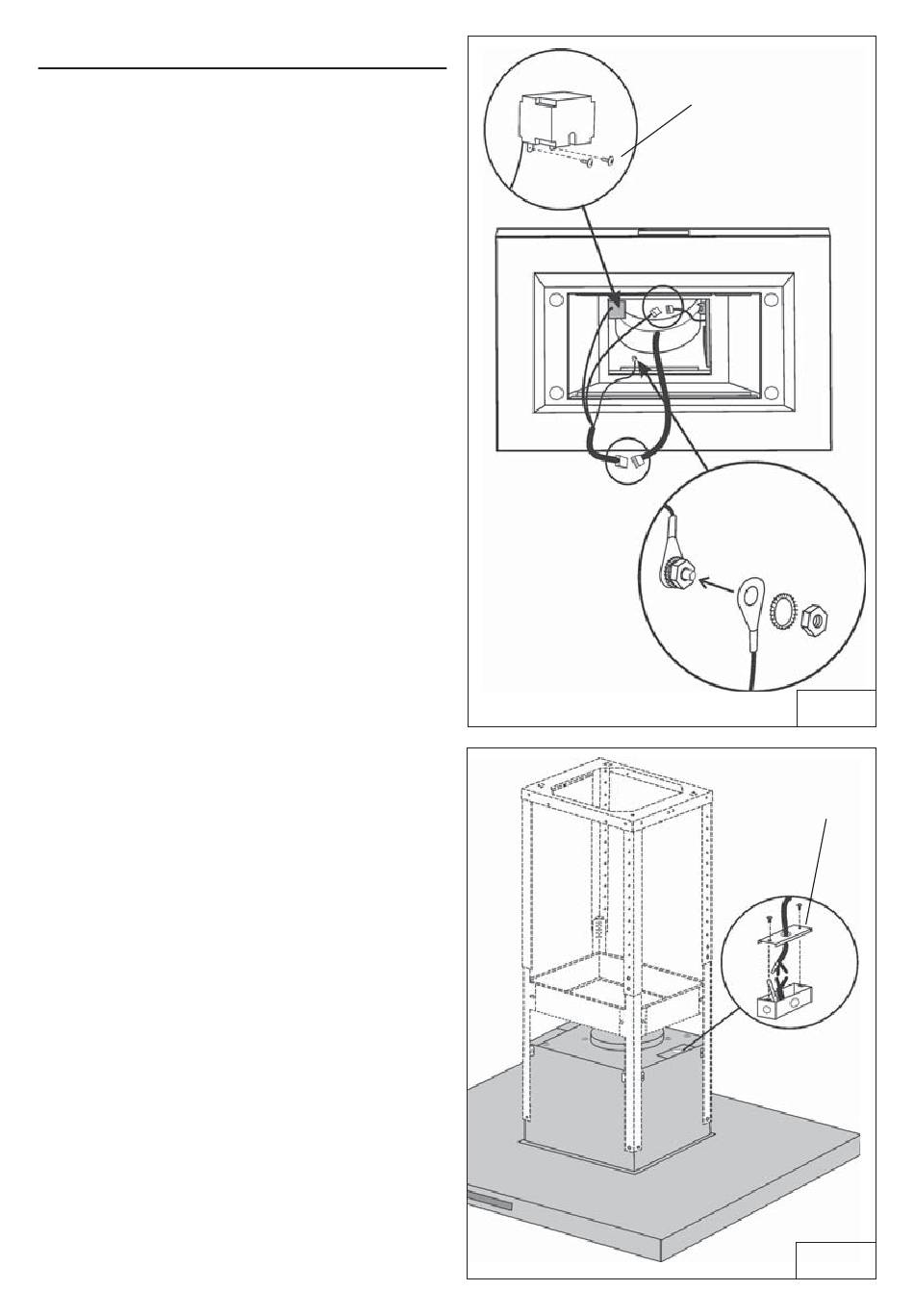

1. Secure capacitor box screwing the (2)
3.9x9.5 mm screws (Fig.13A)
2. Make connections (B,C, D) (Fig.13).
3. Remove the wiring box cover. Remove a
knockout from the wiring box (Fig.14E).
4. Secure the conduit to the wiring box
through a conduit connector.
5. Make electrical connections. Connect white
to white, black to black and green to ground.
6. Replace wiring box cover and screws.
Make sure that wires are not pinched
between cover and box.
A
C
- 18 -
MOUNTING SCREWS
3.9x6mm
B
GROUND
D
FIG.13
WIRING BOX
COVER
FIG.14
E
