Single & Dual Internal Blower Installation
Multiple blowers are compatible with AK8300BSX only. AK8200BS includes a 1000 CFM dual blower
only. For remote blower preparation instructions, turn to page 16.
Tornado II & Tornado III Use, Care, and Installation Guide
Installation Instructions

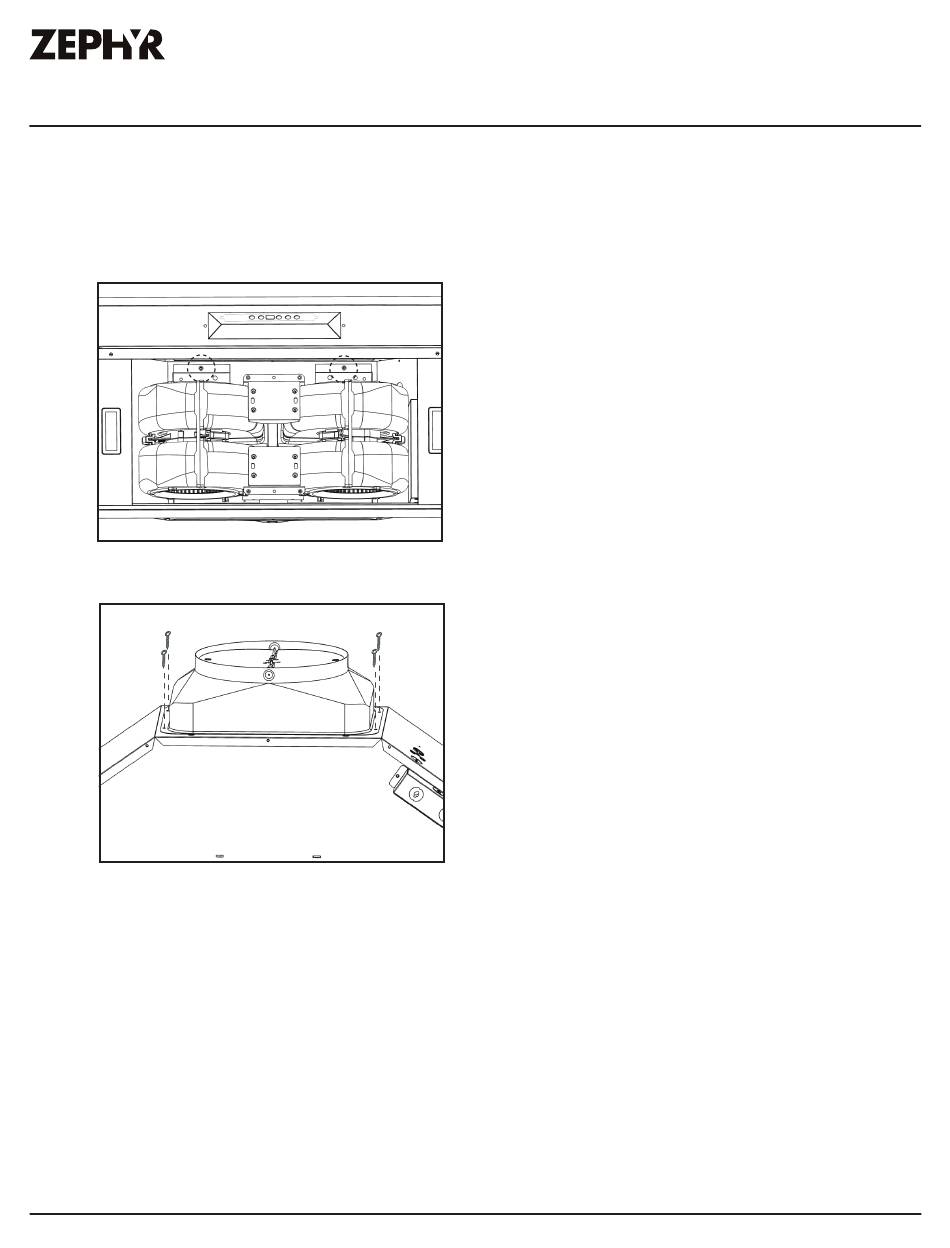

1. Position blower plate over the
bracket inside the back of the
hood and pivot up. Secure the
plate to hood with (2) 3/16x3/8"
screws.
2. Connect 6 pin male connector
from blower wiring to 6 pin female
connector in the power pack.
Single Blower - Connect 6" round
ductwork to blower collar.
Dual Blower - Place 10" round
adapter on top of power pack
and secure it with (4) M4x8
screws. Connect 10" round
ductwork to 8" round adapter.
15
