9.
Mount metal brackets to
double DIN Navigation
10. Attach Clips to new
facia plate
11. Connect all required circuit
points of double DIN head unit
Fix double DIN head unit with
4 screws
Re-install everything in reverse
order to finish installation
• Kia Rio 2011->
Compatible with Double-DIN devices:
Double-DIN Navigation
5
4
7
2
1

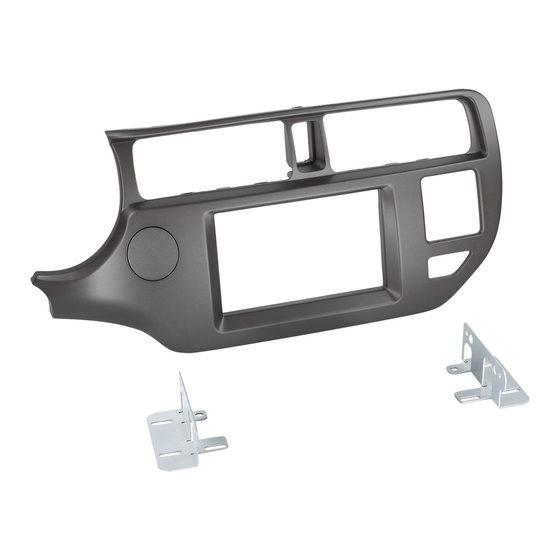

Double DIN Set contents
• (1) Facia Plate
• (2) Cover*
*(for models withoutengine start/stop button)
Installation Manual
Double DIN Kit
anthracite: 381178-29-1
black:
381178-29-2
6
• (3) Mounting bracket (L)
• (4) Mounting bracket (R)
• (5) flat headed screw
• (6) Clip
5
3
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for ACV 381178-29-1
Summary of Contents for ACV 381178-29-1
- Page 1 Installation Manual Double DIN Kit Mount metal brackets to double DIN Navigation anthracite: 381178-29-1 black: 381178-29-2 • Kia Rio 2011-> Compatible with Double-DIN devices: Double-DIN Navigation 10. Attach Clips to new facia plate 11. Connect all required circuit points of double DIN head unit...
- Page 2 Installation Manual Double DIN Kit Unclip OEM panel (see arrows) Remove air vents Remove panel Remove passenger air bag switch These parts need to be removed Models with start/stop: from OEM panel: Remove start / stop button Mount start / stop button - hazard light switch (1) to new facia plate - air vents (left / right) (2)
