5.
Connect all required circuit points
and place double DIN head unit
on dashboard. Fix head unit with
original screws
6.
Clip new facia plate into
OEM panel
7.
Place panel back on dash board
to fnish installation
Installation Manual
Double DIN Kit
black:
Kia Soul 2014->
Compatible with these double DIN devices
Double-DIN Navigation
4
3

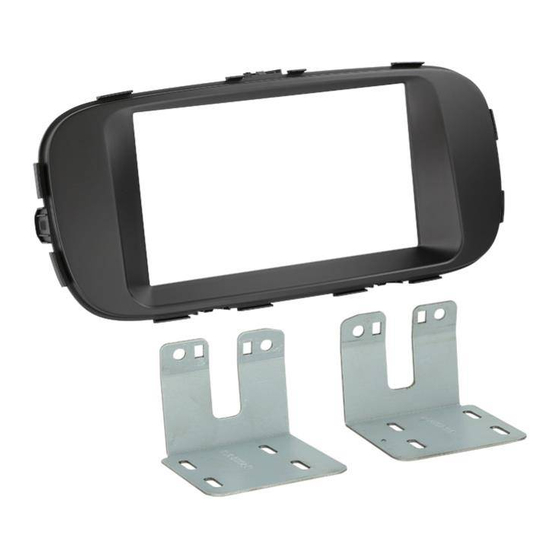

(1) Double DIN Facia Plate
(2) Mounting bracket (right)
381178-37-1
2
1
(3) Mounting bracket (left)
(4) Flat Headed Screw
4
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ACV 381178-37-1
Summary of Contents for ACV 381178-37-1
- Page 1 Installation Manual and place double DIN head unit Double DIN Kit on dashboard. Fix head unit with original screws black: 381178-37-1 Kia Soul 2014-> Clip new facia plate into OEM panel Compatible with these double DIN devices Double-DIN Navigation Place panel back on dash board...
- Page 2 Unclip panel Remove all screws of OEM head unit Unplug all connections and remove OEM head unit Mount mounting brackets to Double-DIN head unit unit front surface Remove panel and unplug all cables carefully ~32 mm...
