Installation Manual Double DIN Kit
(sample photo)
Mount the metal brackets to
double DIN head unit.
© 12/2008 ALL RIGHTS RESERVED. Technical changes possible. No liability for misprints.
(sample photo)
The position of the copper
coloured holder can be adjusted
to your needs for perfect fit.
(see sample)
9.
Connect all required circuit points
and push the double DIN head
unit in the metal frame until it
snaps in.
Place facia plate
Install everything in reverse order
to finish installation
• Mazda CX-7 2009->
Compatible with these double DIN devices
Double DIN Navigation
1
2

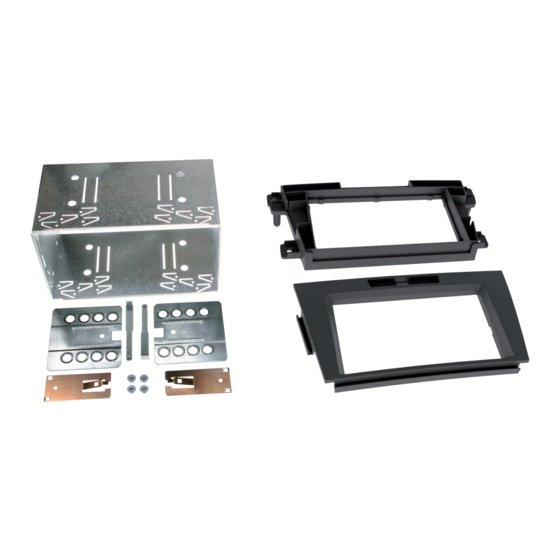

Double DIN Set contents
• (1) Metal Frame
• (3) Mounting Frame
• (2) Install Kit
• (4) Facia Plate
Installation Manual
Double DIN Kit
standard:
381170-08
3
4
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for ACV 381170-08
Summary of Contents for ACV 381170-08
- Page 1 Installation Manual Double DIN Kit Installation Manual Double DIN Kit standard: 381170-08 • Mazda CX-7 2009-> (sample photo) (sample photo) Compatible with these double DIN devices Double DIN Navigation Mount the metal brackets to The position of the copper double DIN head unit.
- Page 2 Installation Manual Double DIN Kit Installation Manual Double DIN Kit Mazda CX-7 OEM dashboard Unplug cable from panel Remove panel Unclip side panels at let Remove screws ( see arrows ) and right side Remove screws Remove OEM head unit 4.
