© 12/2008 ALL RIGHTS RESERVED. Technical changes possible. No liability for misprints.
9.
Fix OEM display with 2 screws
10. Remove clamps from Ford
OEM panel. Place clamps on
new facia plate
11. facia plate with mounted
OEM display
12. Connect all required circuit points
of Double-DIN Navigation, mount it
to Double DIN facia plate, place it
on the dashboard.
Connect cables of OEM display
fix facia plate with mounted OEM
display above Double-DIN Navigation
Ford Fiesta 2009->
Models with display only
Part-No.:
Colour
Double DIN
black
381114-21-1
silver
381114-21-2
Compatible with double DIN devices
Installation Manual
Double DIN Kit
Info: Hazard light switch by Ford
(No.: 15 19 127) may be required
Part-No.:
with pocket
281114-21-1
281114-21-2

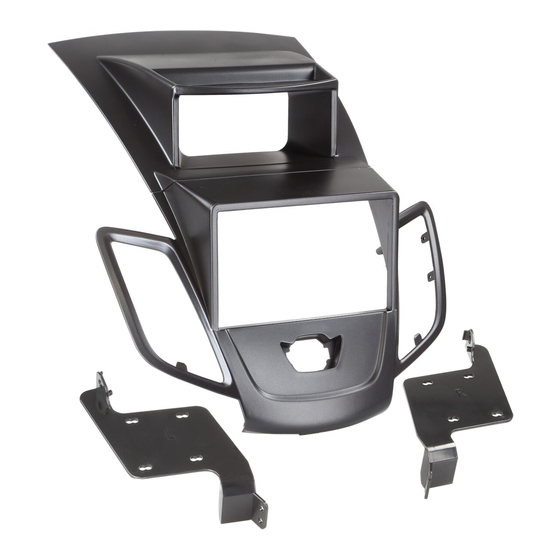

Display Holder
Facia Plate
