8.
Only Kia Picanto models with
Engine start / stop button:
Remove start / stop button
Mount start / stop button
to new facia plate
9.
Only Kia Picanto models without
Engine start / stop button:
close hole of Double DIN facia
place with cover and fix it with
screws
10. Place facia plate on dash
board
• Kia Picanto (TA) 05/2011->
Compatible with these Double-DIN devices:
Double-DIN Navigation
7
6
4

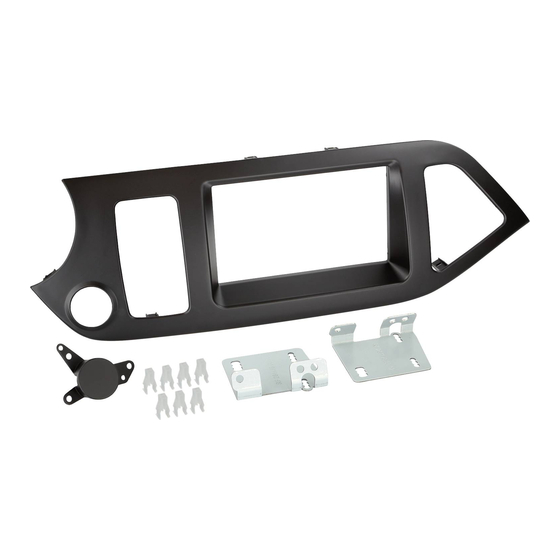

Double DIN Set contents
• (1) Facia Plate
• (2) Mounting bracket (R)
• (3) Mounting bracket (L)
Installation Manual
Double DIN Kit
Part-No.: 381178-30
3
5
1
• (4) Start/Stop Button cover
• (5) Clips
• (6) Self-tapping screw with collar
• (7) Flat headed screw
2
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ACV 381178-30
Summary of Contents for ACV 381178-30

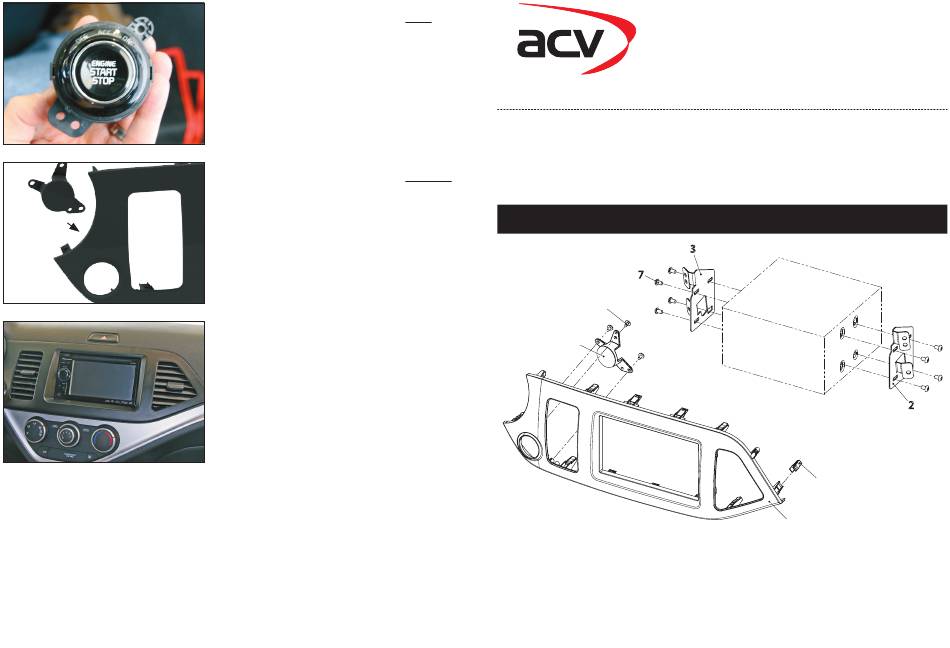

- Page 1 Installation Manual Only Kia Picanto models with Double DIN Kit Engine start / stop button: Remove start / stop button Part-No.: 381178-30 Mount start / stop button to new facia plate • Kia Picanto (TA) 05/2011-> Only Kia Picanto models without...
