© 09/2010 ALL RIGHTS RESERVED. Technical changes possible. No liability for misprints.

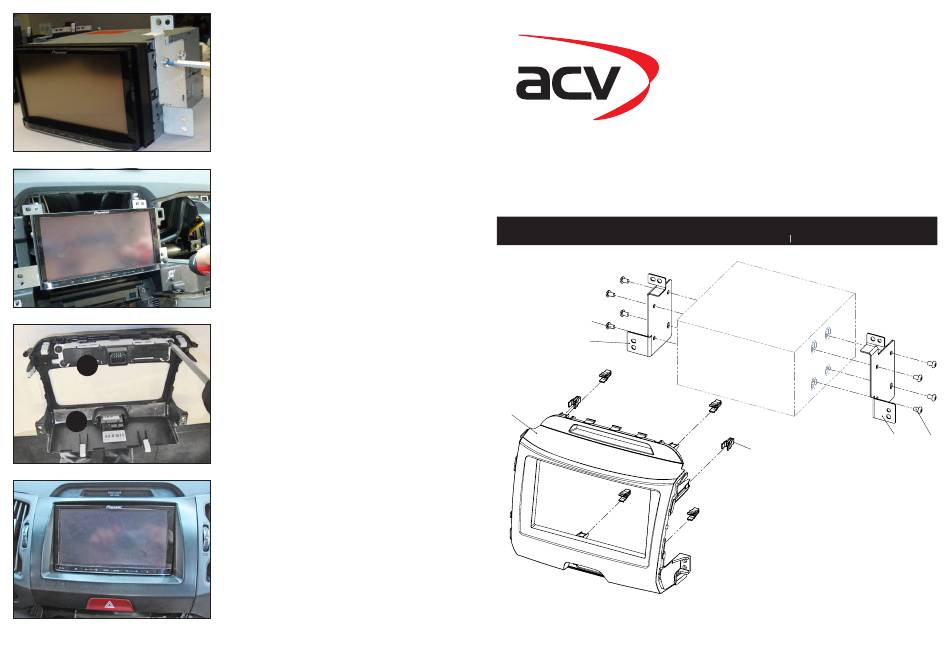

9.
Attach metal mounting
brackets to Double DIN
Navigation
10. Connect all required circuit points
Fix Double DIN Navigation on
dashboard
11. Remove hazard light switch (1)
from OEM head unit - attach it
to double DIN facia plate
Remove upper instrumental
panel (2) - attach it to double DIN
facia plate
Fix clips to double DIN facia plate
Place double DIN facia plate
Reinstall everything in reverse
order to finish installation
Kia Sportage III 2010->
Compatible with double DIN devices
Double-DIN Navigation
4
3
1
(1) Double DIN Facia Plate
(2) Mounting bracket (right)
Installation Manual
Double DIN Kit
black:
381178-28-1
grey:
381178-28-2
5
(3) Mounting bracket (left)
(4) Fixing screws
(5) Clips
2
4
Advertisement
Related Manuals for ACV 281178-28G-M
Summary of Contents for ACV 281178-28G-M
- Page 1 Attach metal mounting Installation Manual brackets to Double DIN Double DIN Kit Navigation black: 381178-28-1 grey: 381178-28-2 Kia Sportage III 2010-> 10. Connect all required circuit points Fix Double DIN Navigation on Compatible with double DIN devices dashboard Double-DIN Navigation 11.
- Page 2 Remove screws of OEM head unit Remove left side panel by pulling (left and right) it towards your direction Unclip right side panel Remove screws of OEM head unit Remove OEM head unit Remove right side panel by pulling Cut here: see white line it towards your direction (left side) Unclip left side panel...
