© 05/2013 ALL RIGHTS RESERVED. Technical changes possible. No liability for misprints.
• Kia Sorento III 11/2012->
Compatible with these double DIN devices
Double DIN Navigation
4
3
1
Kit Content
(1) facia plate
(2) mounting bracket right
(4) flat headed screw
(3) mounting bracket left
(5) self-tapping screw with collar

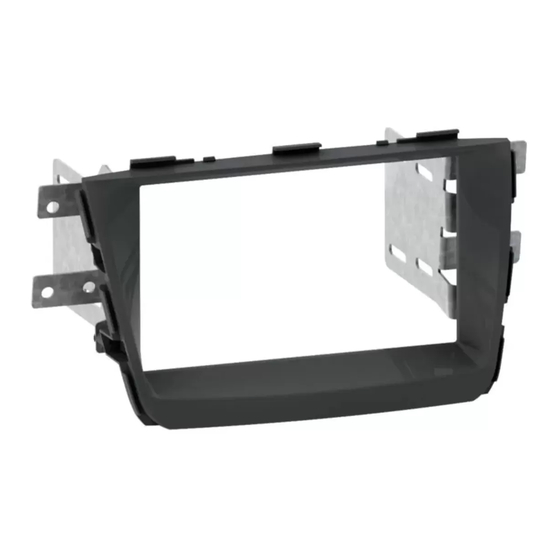

Installation Manual
Double DIN Kit
colour: black
part-no.: 381178-35
2
4
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ACV 381178-35
Summary of Contents for ACV 381178-35
- Page 1 Installation Manual Double DIN Kit colour: black part-no.: 381178-35 • Kia Sorento III 11/2012-> Compatible with these double DIN devices Double DIN Navigation Kit Content (1) facia plate (2) mounting bracket right (4) flat headed screw (3) mounting bracket left (5) self-tapping screw with collar ©...
- Page 2 Unclip and remove OEM panel Bend down metal in order to clear space for double DIN head unit Remove screws of air vents Mount facia plate and mounting brackets to double DIN head unit Remove air vents Remove screws of OEM head unit Remove OEM head unit Connect all required circuit points place double DIN head unit...
