9.
Attach mounting brackets to
Double DIN head unit
Attach facia plate to mounting
brackets
10. Connect all required circuit points
place Double DIN head unit
on dash board
11. Install everything in reverse order
to finish installation
• Kia Carens 2013->
Compatible with these double DIN devices
Double DIN Navigation
3
1

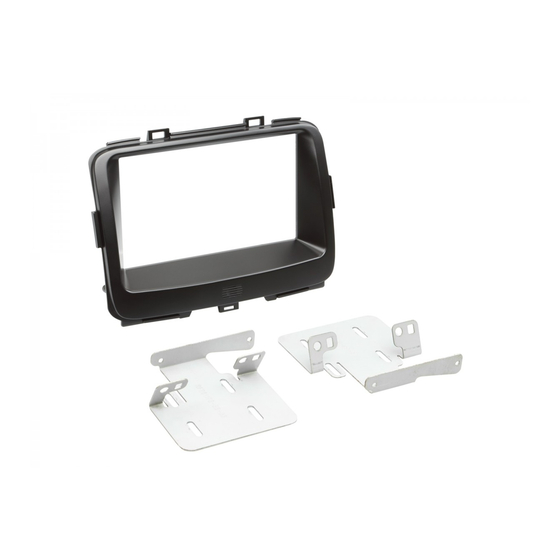

• (1) facia plate
• (2) mounting bracket right
• (3) mounting bracket left
All installation work must be performed by a qualified professional installer only.
The manufacturer / dealer is not liable for any kind of incidential or indirect damages.
Installation Manual
Double DIN Kit
colour
part-no.
black
381178-36
2
4
5
• (4) flat headed screw
• (5) self tapping screw with collar
