ACV 381114-24-1 Installation Manual

Installation Manual Double DIN Kit

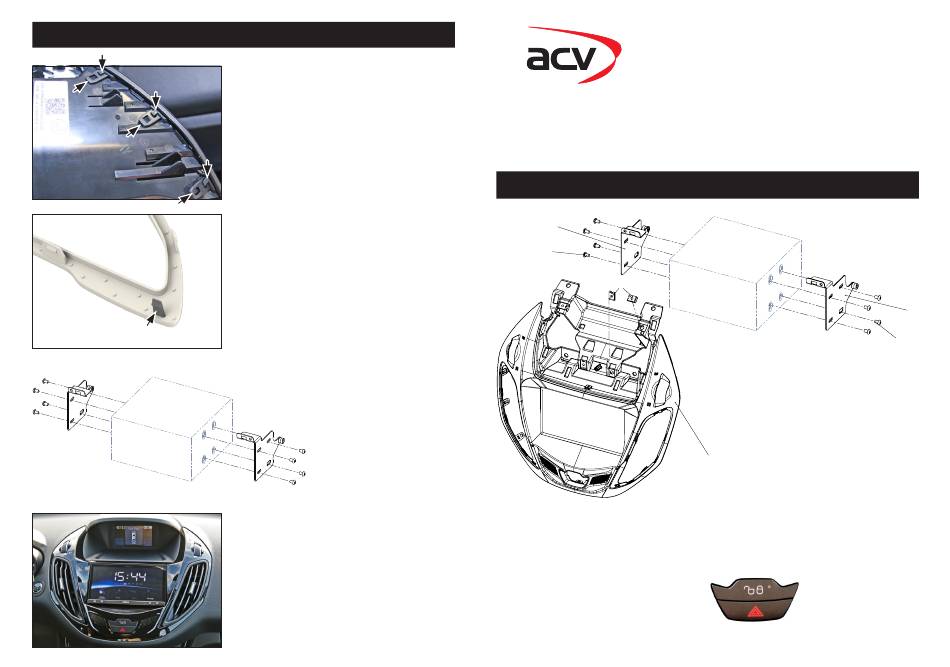

9. Remove air vents carefully
(double clipped /see arrows)
and air vent trim frames from
OEM panel.
10. cut away a pin on the rear side of
the trim frame (see arrow)
( Note: Does not apply for SONY
OEM head units! )
Attach air vents and air vents trim
frame to new facia plate
11. Attach mounting brackets to
Double DIN head unit and fix it
on dash board
12. A new hazard light switch by Ford
is required: part-no.: 1519127
Attach hazard light switch to new
facia plate
Connect all required circuit points
Reinstall everything in reverse
order to finish installation
• Ford B-MAX (JK8) 06/2012->
Compatible with these double DIN devices
Double DIN Navigation
3
4
5

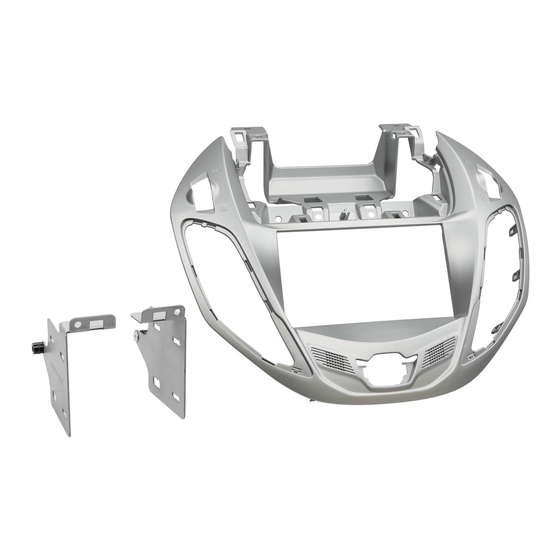

Double DIN Kit contents
(1) Facia Plate
(2) Mounting Bracket Right
(3) Mounting Bracket Left
(4) Flat Headed Screw
(5) speed nut
All installation work must be performed by a qualified professional installer only.
The manufacturer / dealer is not liable for any kind of incidential or indirect damages.
Installation Manual
Double DIN Kit
nestor silver 381114-24-1
piano black: 381114-24-2
1
A new hazard light switch by Ford
is required: part-no.: 1519127
2
4
