- 1 Remove the Panel Surrounding the OEM Head Unit.
- 2 Mount the Metal Brackets to the Double DIN Head Unit.
- 3 Remove the 4 Screws.
- 4 Place the Double DIN Metal Frame on the Dashboard.
- 5 Connect All Required Circuit Points to the Head Unit.
- 6 Reinstall Everything in Reverse Order to Finish Installation.
- Download this manual
© 03/2009 ALL RIGHTS RESERVED. Technical changes possible. No liability for misprints.
• Kia c'eed 2007
Compatible with double DIN devices
1
2

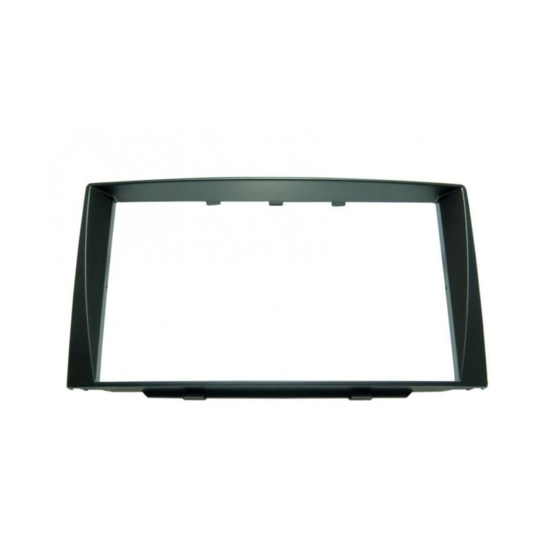

Double DIN Set contents
• (1) Metal Frame
• (2) Installation Kit
Installation Manual
Double DIN Kit
Part-No.: 381178-18
3
• (3) Facia Plate / Mounting frame
Advertisement
Table of Contents
Related Manuals for ACV 381178-18
Summary of Contents for ACV 381178-18
- Page 1 Installation Manual Double DIN Kit Part-No.: 381178-18 • Kia c‘eed 2007 Compatible with double DIN devices Double DIN Set contents • (1) Metal Frame • (2) Installation Kit • (3) Facia Plate / Mounting frame © 03/2009 ALL RIGHTS RESERVED. Technical changes possible. No liability for misprints.
- Page 2 Installation Manual Double DIN Kit 381178-18 Remove the panel surrounding the OEM head unit. (see arrows) (sample photo) (sample photo) Mount the metal brackets to the The position of the copper double DIN head unit. coloured holder can be adjusted to your needs for perfect fit.
