9.
Remove screws of OEM radio
Take out OEM radio
(pull out plugs carefully)
10. Fix mounting brackets to
Double DIN Navigation
Connect all required circuit
points of Double DIN
Navigation
Place it on dashbord. Fix it
with OEM screws
11. Mount facia plate to OEM panel
12. Install everything in reverse order
to finish installation
Kia Sorento 2010->
Compatible with these double DIN devices
Double DIN Navigation
1

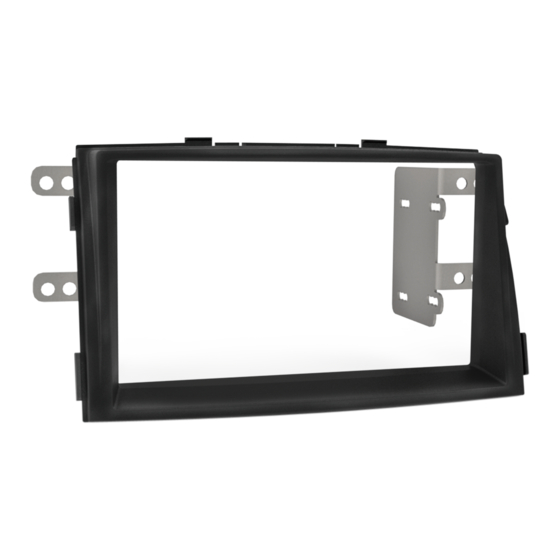

(1) Facia Plate
(2) Mounting brackets (left / right)
Installation Manual
Double DIN Kit
381178-24
