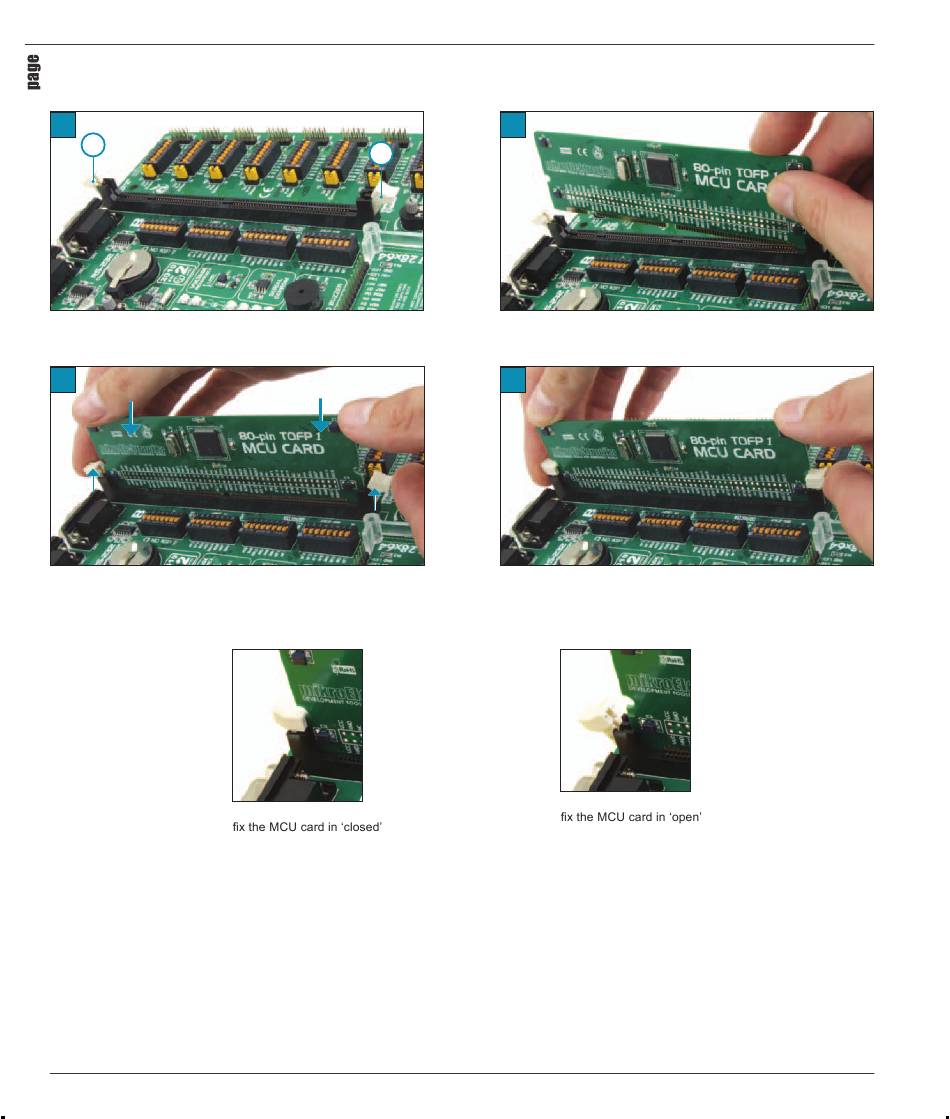

Placing MCU card into the DIMM-168P connector is performed as follows:
1
A
Open extraction levers A and B
3
Push the MCU card down gently into the DIMM-168P connector and
lift extraction levers slowly at the same time
MikroElektronika
B
Extraction levers used to
position
BIGdsPIC6 Development System
2
Place the MCU card into the DIMM-168P connector
4
Close the extraction levers when the MCU card is properly placed
into the connector
Extraction levers used to
position
