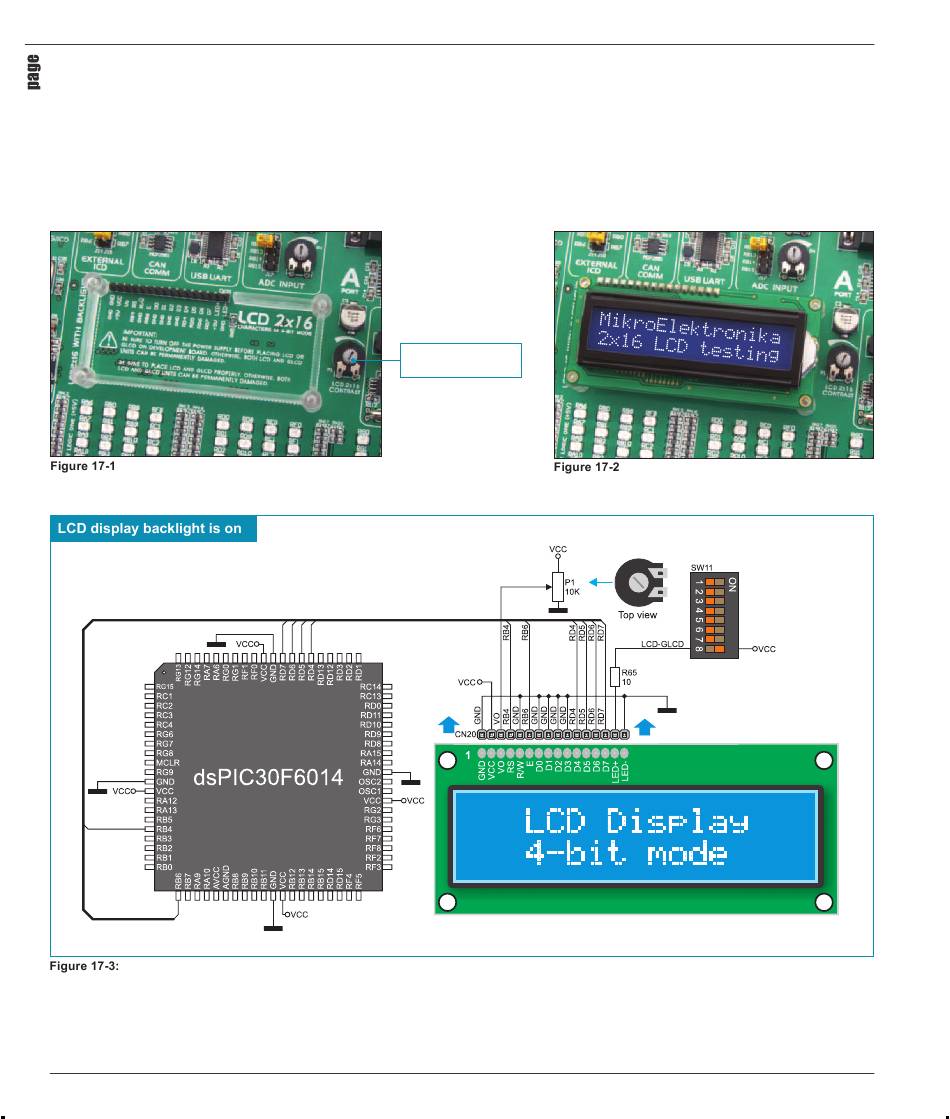

17.0. 2x16 LCD

The BIGdsPIC6 development system provides an on-board connector for the alphanumeric 2x16 LCD. This connector is linked to
the microcontroller via ports PORTB and PORTD. Potentiometer P1 is used to adjust display contrast. Switch LCD-GLCD on the DIP
switch SW11 is used to turn the display backlight on/off.
Communication between the LCD and the microcontroller is performed in a 4-bit mode. Alphanumeric digits are displayed in two lines
each containing up to 16 characters of 7x5 pixels.
. Alphanumeric LCD connector
Alphanumeric 2x16 LCD connection schematic
MikroElektronika
Contrast adjustment
potentiometer
BIGdsPIC6 Development System
: Alphanumeric 2x16 LCD
