BIGdsPIC6 Development System
2.0. Supported Microcontrollers

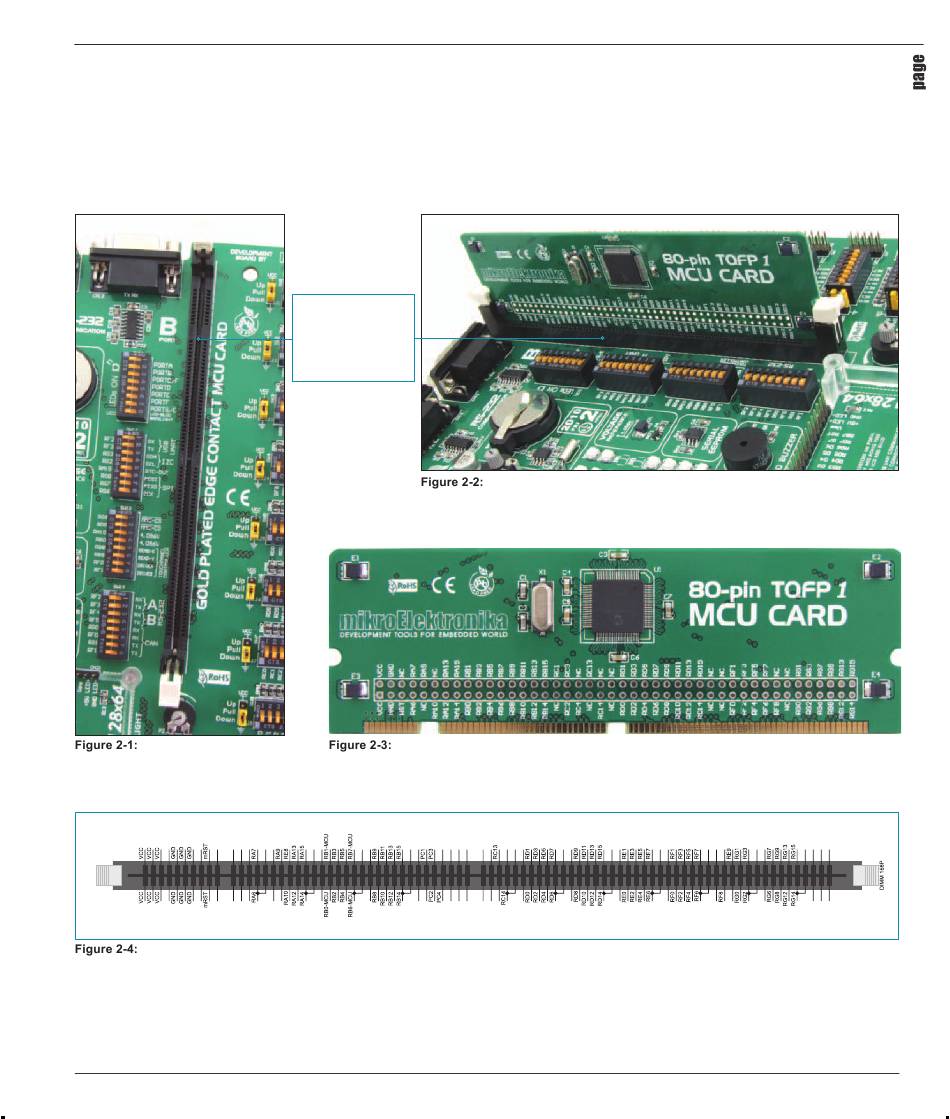

The BIGdsPIC6 development system provides a DIMM-168P connector to place an MCU card into. This development system comes
with an MCU card with a microcontroller in 80-pin TQFP package soldered on it, Figure 2-3. Besides, the MCU card alone provides an
oscillator as well as 80 soldering pads connected to the microcontroller pins. Each pad is marked the same as the pin it is connected
to. Soldering pads also make connection between the MCU card and target device's modules easy.
DIMM-168P connector
Schematic of the DIMM-168P connector's pinout
DIMM-168P
connector for placing
the MCU card with
a microcontroller in
TQFP package
MCU card with an 80-pin microcontroller in TQFP package soldered on it
DIMM-168P connector with the MCU card inserted
7
MikroElektronika
