BIGdsPIC6 Development System

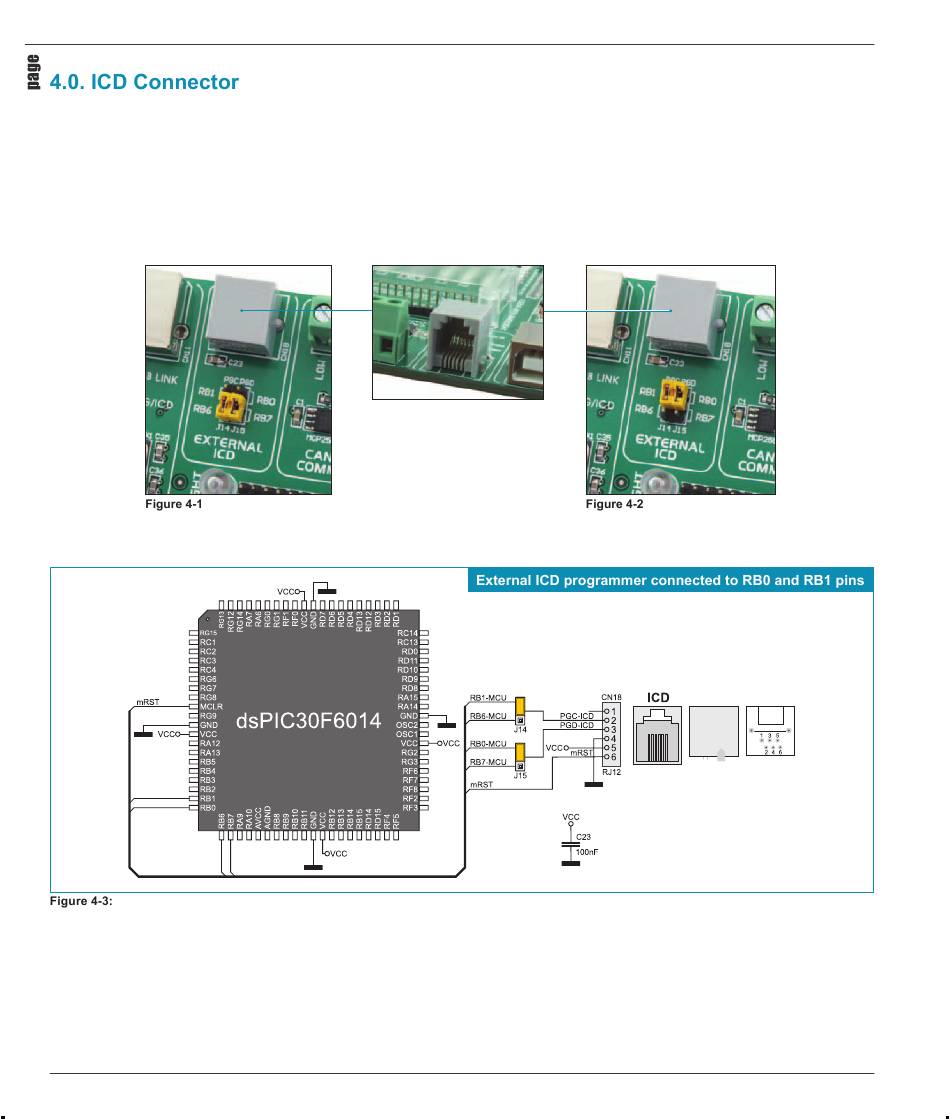

The ICD connector enables communication between the microcontroller and an external ICD debugger/programmer (ICD2 or ICD3)
from Microchip. Jumpers J14 and J15 are used for selecting the pin to be fed with programming signal. For the programming signal to
be sent to the microcontroller, it is necessary to place both jumpers in the same position, as shown in Figure 4-3. Either RB0 and RB1
or RB6 and RB7 microcontroller pins can be fed with this signal. The position of jumpers J14 and J15 depends on the microcontroller
provided on the MCU card. When the dsPIC30F6014 microcontroller is programmed by means of the external ICD programmer,
jumpers J14 and J15 should be placed in the RB0 and RB1 position, respectively. In case some other microcontroller is used, it is
necessary to check which microcontroller pins can be fed with the programming signal.
: Pins RB6 and RB7 are : Pins RB0 i RB1 are
used for programming used for programming
ICD connector's pinout and pin designations
