Your best partner for better driving
SUNE TECHNOLOGY CO.,LTD
No.9,Lane 606,Anping Rd,Tainan City 70849,TAIWAN
TEL:+88662292246 FAX:+88662288104
Http://www.sune-tech.com
Shop http://www.carnavi-tech.com
SKYPE:sune_tech or hsin_han99

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Q-ROI Golf and is the answer not in the manual?

Questions and answers

Summary of Contents for Sune Technology Q-ROI Golf

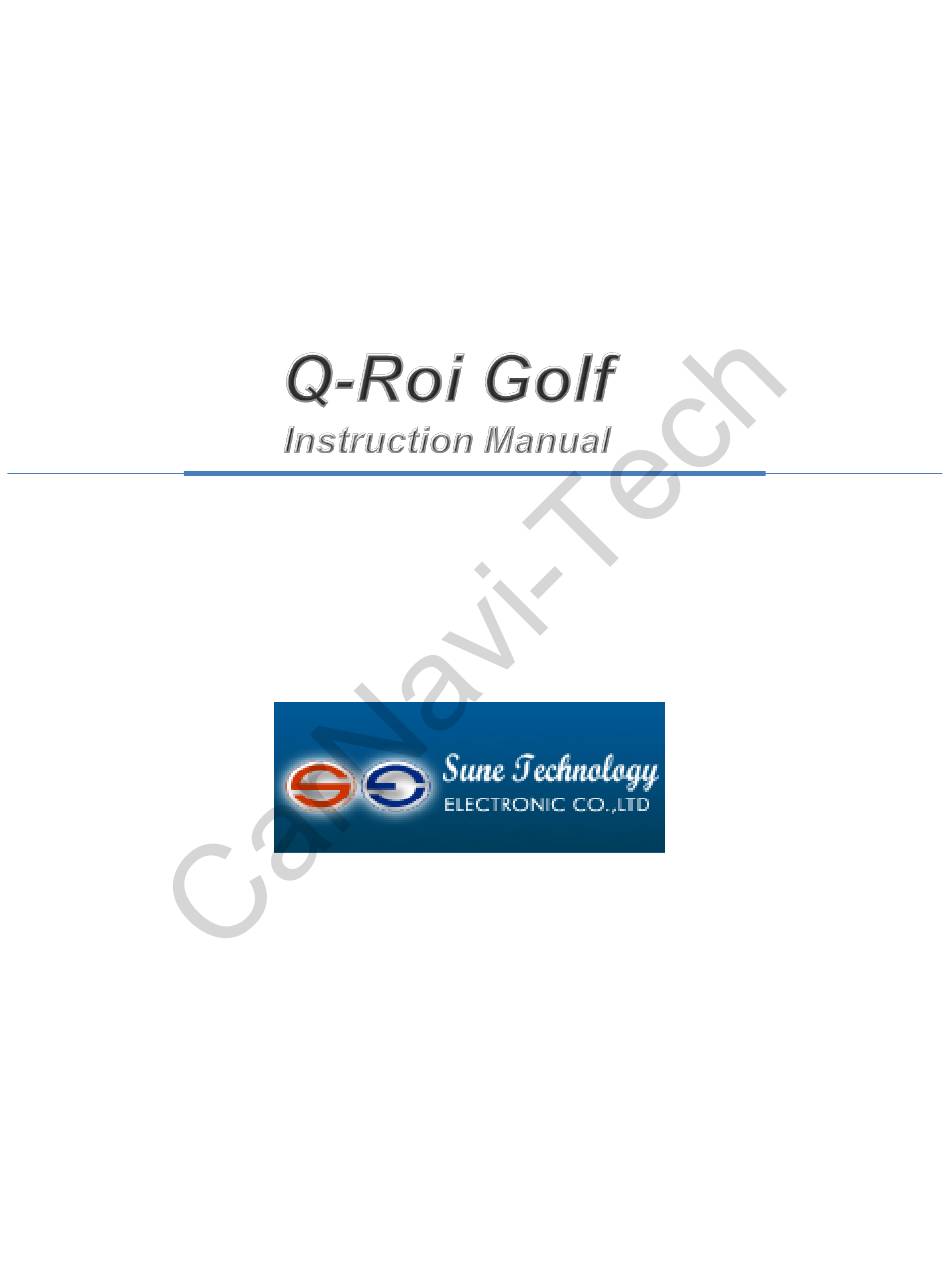

  • Page 1 Your best partner for better driving SUNE TECHNOLOGY CO.,LTD No.9,Lane 606,Anping Rd,Tainan City 70849,TAIWAN TEL:+88662292246 FAX:+88662288104 Http://www.sune-tech.com Shop http://www.carnavi-tech.com SKYPE:sune_tech or hsin_han99...
  • Page 2 Index 1. General spec 2. System Diagram 3. Components 4. Original button use 5. Setting up Dip S/W 6. Setting up FACTORY MENU 7. Cautions before Installation 8. Installation Diagram 9. Installation 10.Quality Warranty...
  • Page 3: Warning / Precautions

    Warning / Precautions!  Do not modify, dismantle or unintended operation this system outside Q-roi After Sales. Damage occurred by unintended operation Warning may cause Q-roi After Sales service void.  Always wear seatbelt. When the vehicle is suddenly stop can cause injury. Warning ...
  • Page 4: General Spec

    1. General Spec Android 4.2.2 (Jelly Bean) Telechips TCC8930 (1GHz Cortex A9 DualCore) Display OEM LCD Internal Memory DDR3 1GB RAM + 8GB eMMC External Memory SDHC Slot Support (up to 64GB) A/V Input x 3, Rear Cam Input x 1, CAN(Controller Area Network) x 2, Function Mic x 1,...
  • Page 5: System Diagram

    2. System Diagram LCD Display eMMC LVDS Flash USB HUB Transmitter Memory USB Devices - USB memory - Hard Disc - Wifi dongle - BlueTooth dongle - 3G / LTE dongle - Other USB Touch Accessories DDR3 Screen Image Application Touch Controller Scaler...
  • Page 6 3. Components 3G dongle * 1ea(Option) (ETCETC0116) LCD cable * 1ea (HLCDCA0007) WIFI dongle * 1ea(Option) Sub-Board * 1ea (ETCETC0110) CAN IN/OUT cable * 1ea (HARETC0076) LVDS cable* 1ea (HALVDSC0024) SD 연장 케이블 * 1ea (HARETC0080) AV/BT Cable * 1ea USB cable * 2ea (HAVCAB0020) (HARETC0078)
  • Page 7 4. Original button use ※ GOLF ※New VW car Press and hold : Mode change (Q-ROI↔Original screen) Press and hold : Q-ROI Reset Use ‘Mute’ button Press and hold : to reset in case no Mode change such button (Q-ROI↔Original screen) <Left side buttons of steering wheel>...
  • Page 8 5. Setting up Dip Switch ※ Dip Switch Setting (Main board) : Old GOLF, SKODA OCTAVIA : New SKODA OCTAVIA : New VW GOLF, PASSAT ※ Dip Switch Setting (I/F) OFF : Old SKODA, GOLF Setup Car ON : New SKODA, GOLF, PASSAT Setup OFF : Old car...
  • Page 9 6. Setting up Factory Menu ※ APPS→FACTORY SETTING ① Put Password and change program upgrade and set-up of external device. (Only Installers are authorized) ※ Please contact the manufacturer to get Password.
  • Page 10 6. Setting up Factory Menu ⑤ ④ ① ② ③ ① CAR MODEL : No use ② DVD TYPE : Only for DVD connected to A/V (Connect IR-AV1 to DVD to use DVD as touch Screen) ③ CMMB SELECT : Select DTV model ( Only Chinese) ④...
  • Page 11: Cautions Before Installation

    7. Cautions before Installation Ignition key should be taken off before starting installation, interface  power connection must be the last step in installation. Power cable should be separated when connecting interface.  Should be no any electronic devices or magnetic pole around ...
  • Page 12: Installation Diagram

    8. Installation Diagram ※1. Remove Original LCD cable from Monitor and Connect OEM LCD cable to Sub-Board“LCD-OUT". 2. Connect Provided LCD cable to Behind of monitor. <Behind of monitor> Origianl LCD Cable Head unit 오리지널 모니터 Speaker <Inside of Glove box> Provided LCD Cable SAFE FRONT...
  • Page 13: Installation

    9. Installation 8.1 Connection between a monitor and an interface ※1. Remove Original LCD cable from Monitor and Connect OEM LCD cable to Sub-Board“LCD-OUT". 2. Connect Provided LCD cable to Behind of monitor. <Inside of Glove box> Head unit <Behind of monitor> Provided LCD Cable Original LCD Cable provided LVDS Cable...
  • Page 14 9. Installation 8.2 Connection of CAN Wire -1 Connect to CAN1-H of Power cable Connect to CAN1-L of Power cable You should be able to find CAN wire behind the air-conditioner. Connect CAN1-H(Orange + Green) to CAN-H(Yellow + White) of Car. Connect CAN1-L(Orange + Brown) to Original CAN-L(Yellow ) of Car.
  • Page 15 9. Installation 8.3 Connection of CAN Wire-2 ① Pull away the black ② Put away the black cap. connect from a monitor ③ Connect the black connector ④ Connect the other side of the covered in silver cap to the provided CAN IN/OUT cable to the provided CAN IN/OUT cable port where OEM connector was...
  • Page 16: Quality Warranty

    10. Quality Warranty This product has been tested and have passed under our strict quality control. If the failure occurred due to the carelessness of workmanship within one year after the purchase, we are responsible to repair free of charge. Please bring this warranty to dealer whom you purchased this product from at the repair time.
