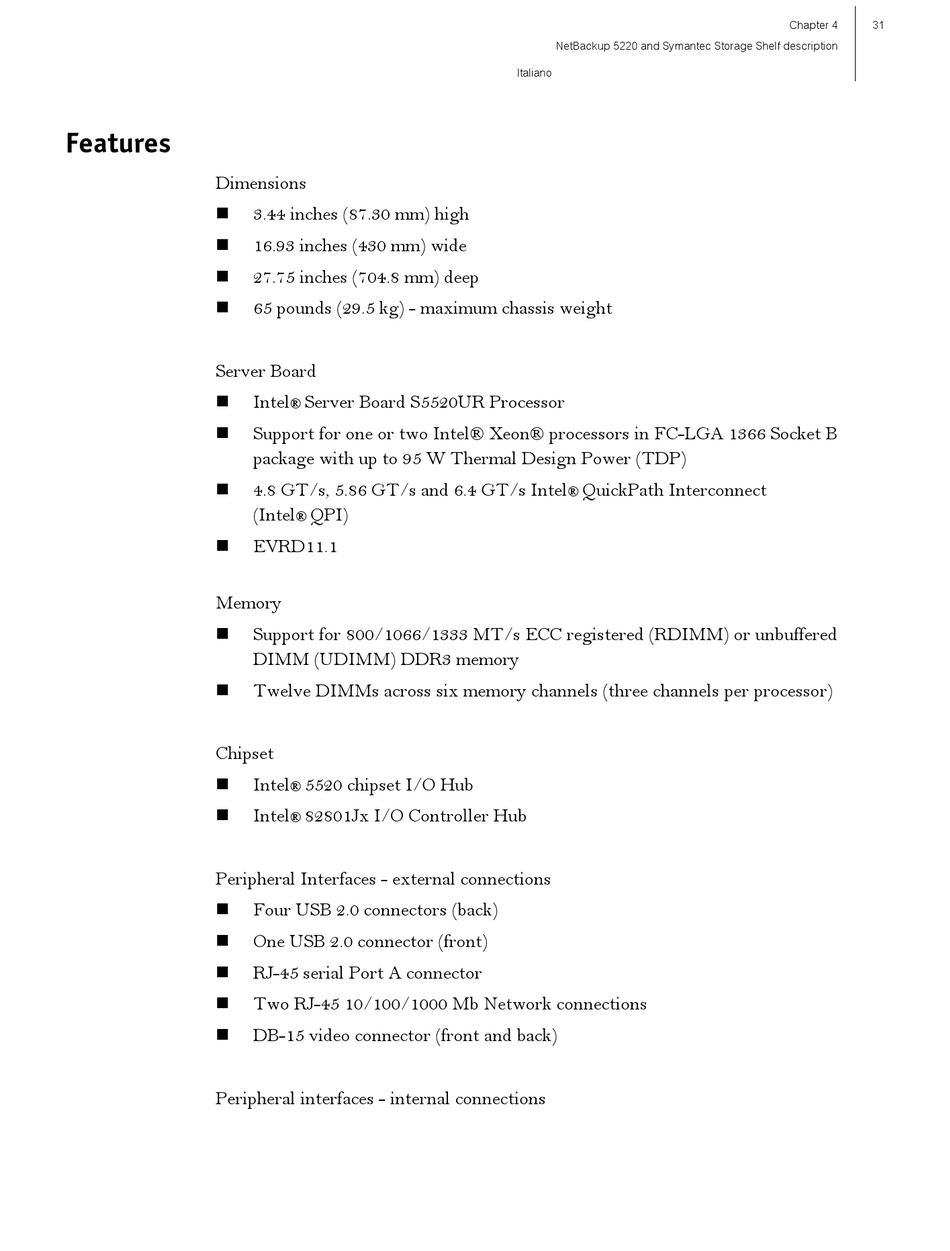

Features

Dimensions




Server Board




Memory


Chipset


Peripheral Interfaces - external connections





Peripheral interfaces - internal connections
3.44 inches (87.30 mm) high
16.93 inches (430 mm) wide
27.75 inches (704.8 mm) deep
65 pounds (29.5 kg) - maximum chassis weight
Intel Server Board S5520UR Processor
®
Support for one or two Intel® Xeon® processors in FC-LGA 1366 Socket B
package with up to 95 W Thermal Design Power (TDP)
4.8 GT/s, 5.86 GT/s and 6.4 GT/s Intel
(Intel QPI)
®
EVRD11.1
Support for 800/1066/1333 MT/s ECC registered (RDIMM) or unbuffered
DIMM (UDIMM) DDR3 memory
Twelve DIMMs across six memory channels (three channels per processor)
Intel 5520 chipset I/O Hub
®
Intel 82801Jx I/O Controller Hub
®
Four USB 2.0 connectors (back)
One USB 2.0 connector (front)
RJ-45 serial Port A connector
Two RJ-45 10/100/1000 Mb Network connections
DB-15 video connector (front and back)
NetBackup 5220 and Symantec Storage Shelf description
Italiano
QuickPath Interconnect
®
