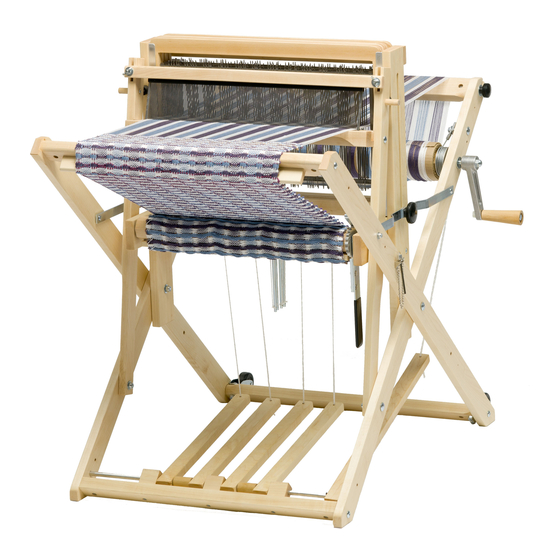

Schacht Wolf Pup Assembly Instructions Manual
Floor loom
Hide thumbs
Also See for Wolf Pup:
- Assembly instructions manual (9 pages) ,
- Maintenance & warranty (8 pages) ,
- Assembly instructions manual (13 pages)
Table of Contents
Related Manuals for Schacht Wolf Pup
Summary of Contents for Schacht Wolf Pup

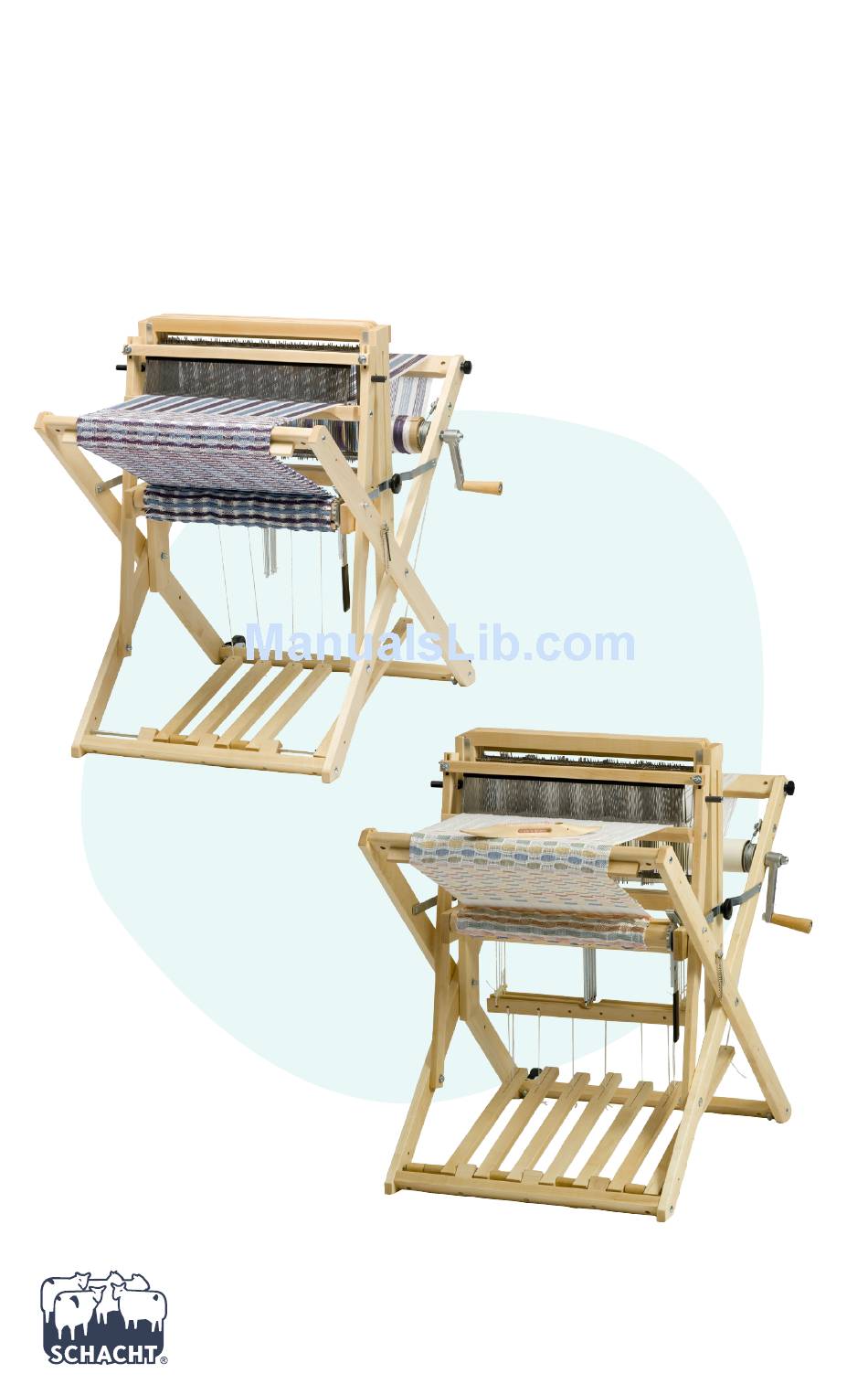

- Page 1 WOLF PUP & WOLF PUP LT ssembly nstructIons WOLF PUP WOLF PUP LT Find out more at schachtspindle.com Schacht Spindle Company 6101 Ben Place Boulder, CO 80301 p. 303.442.3212 f. 303.447.9273 09.17 © 2017 Schacht Spindle Company, Inc.
- Page 2 WOLF PUP & WOLF PUP LT ssembly nstructIons castle side harness reed beater top rear beam beater peg front beam warp beam left warp beam outside leg crank handle front beam extension fold knob brake lamms advance cloth beam fold bars...
- Page 3 Hardware Bag 1: PARTS 4 – 1½” truss machine screws Attached to warp beam: 4 – lock nuts 3 – apron bars 3 – 1½” flat-head screws 8 – stainless steel heddle bars Hardware Bag 2: 2 – lease sticks (with holes) 1 –...
- Page 4 INSTALL THE BEATER PEGS beater upright Loosen the wing nuts holding the top of ■ the beater, and remove the beater top. ■ Remove the reed from the beater. washer ■ Install 1/4-20x2” screw through 1” black spacer and beater from the outside in. 1”...
- Page 5 ATTACH THE APRON CORDS AND APRON BARS There is one cord for each hole in the ■ cloth and warp beams. ■ Insert one end of an apron cord through a hole in the cloth beam and pull the cord through. Then insert the other end through the second hole in the end of the cord that you just put through the beam.
- Page 6 Remove the ties on your groups of ■ heddles, and any tape you used. WOLF PUP LT: lamm INSTALLING THE TIE-UP CORDS There is one tie-up cord for each hole in the lamms. Put the loop end of a tie-up...
- Page 7 INSTALLING THE slot TREADLE TRACKER With the clip facing the front of the loom, insert the treadle tracker into the slot in the rear castle brace. TREADLE TRACKER INSTALLATION - LOOKING DOWN AT CASTLE ADJUSTING THE BRAKE The friction brake can be adjusted by eyebolt tightening or loosening the eyebolt.
- Page 8 BEATER AGAINST ALIGN HOLE AND SLOT; and before folding the loom. CASTLE; BEATER PIN INSERT BEATER PIN IN HOLDER & P lt A ccessorIes 15" AND 12" END DELIVERY SHUTTLES WOLF PUP TRAP WOLF PUP RADDLE LOOM BENCH – 8 –...
