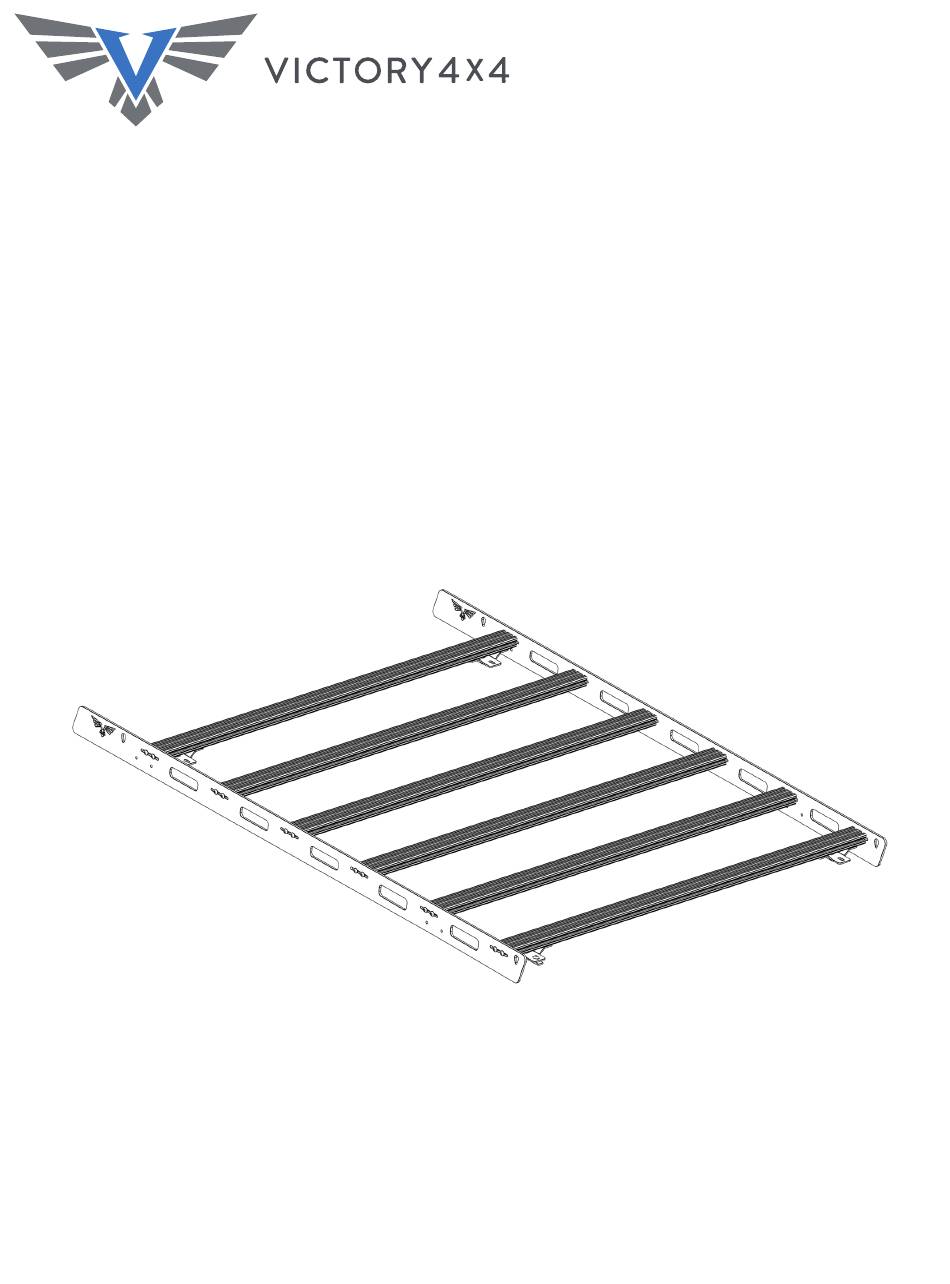

2N D & 3R D GE N TACOM A
TO PPE R ROO F RACK
IN S TAL L I NSTRU C TIO NS
Please read the mounting instructions below carefully before attempting to install.
Check out the install video on the product page for factory rack disassembly.
Thank you for purchasing from Victory 4x4! Checkout our website, victory4x4.com for other great off-road
products. Be sure to rate and review our product online. If you have any questions or are missing parts, please
don't hesitate to call us at 269-459-8447!
Advertisement
Related Manuals for Victory 4x4 VRKCAP
Summary of Contents for Victory 4x4 VRKCAP
- Page 1 Check out the install video on the product page for factory rack disassembly. Thank you for purchasing from Victory 4x4! Checkout our website, victory4x4.com for other great off-road products. Be sure to rate and review our product online. If you have any questions or are missing parts, please...
-
Page 2: I Nclu D E D Hardware
I NCLU D E D HARDWARE LONG BED 1/4"-20 X 3/4" 1/4"-20 X 3/8" Button Head Button Head 1/4” ID Washer 1/4"-20 T-Nut 5/16”-18 X 1/2” 5/16”-18 Button Head T-Nut... - Page 3 I NCLU D E D HARDWARE SHORT BED 1/4"-20 X 3/4" 1/4"-20 X 3/8" Button Head Button Head 1/4” ID Washer 1/4"-20 T-Nut 5/16”-18 X 1/2” 5/16”-18 Button Head T-Nut...
-
Page 4: Included Parts
I NC LU D E D PA RTS LONG BED SHORT BED... - Page 5 AS SE M BLY Start by measuring the distance between the rails on the roof of the topper. Then, attach the two of the mounts to one of the crossbars, centered on the bar and the same distance apart as the rails on the topper. Do this using the 1/4”-20 X 3/8”...
- Page 6 A SS E M BLY Assemble the rack on the ground. Mount the crossbars between the 2 side rails. For this, use the1/4”-20 X 3/4” button head bolts and the 1/4” ID washers (2 per bar per side). Make sure that the machined slots are facing up and the bars that have mounts attached to them go in the front and rear.
- Page 7 AS SE M BLY Next, slide the larger 5/16”-18 t-nuts into the factory rails on the topper and put the rack up on the roof. Then, loosely bolt the rack to the t-nuts using the 5/16”-18 X 1/2” button head bolts and 5/16” ID washers. Adjust the position of the rack until it is where you like and then tighten it fully into place.
- Page 8 DI M E N SI O NS LONG BED...
- Page 9 D I M E NS IO NS SHORT BED...
