Victory 4x4 VRKACM Install Instructions Manual

Roof rack, accessory mount

R OOF R AC K

ACC E SS O RY MO UN T

INS TAL L I NSTRUC T ION S

Please read the mounting instructions below carefully before attempting to install.

Be sure to check out the install video on the product page, if available.

Thank you for purchasing from Victory 4x4! Checkout our website, victory4x4.com for other great off-road

products. Be sure to rate and review our product online. If you have any questions or are missing parts, please

don't hesitate to call us at 269-459-8447!

Table of Contents

Need help?

Do you have a question about the VRKACM and is the answer not in the manual?

Page 1 Be sure to check out the install video on the product page, if available. Thank you for purchasing from Victory 4x4! Checkout our website, victory4x4.com for other great off-road products. Be sure to rate and review our product online. If you have any questions or are missing parts, please...
Page 2 I NCLU D E D HARDWARE 1/4"-20 T-Nut 1/4"-20 X 3/8" Button Head...
Page 3 I NCLU D E D PARTS...

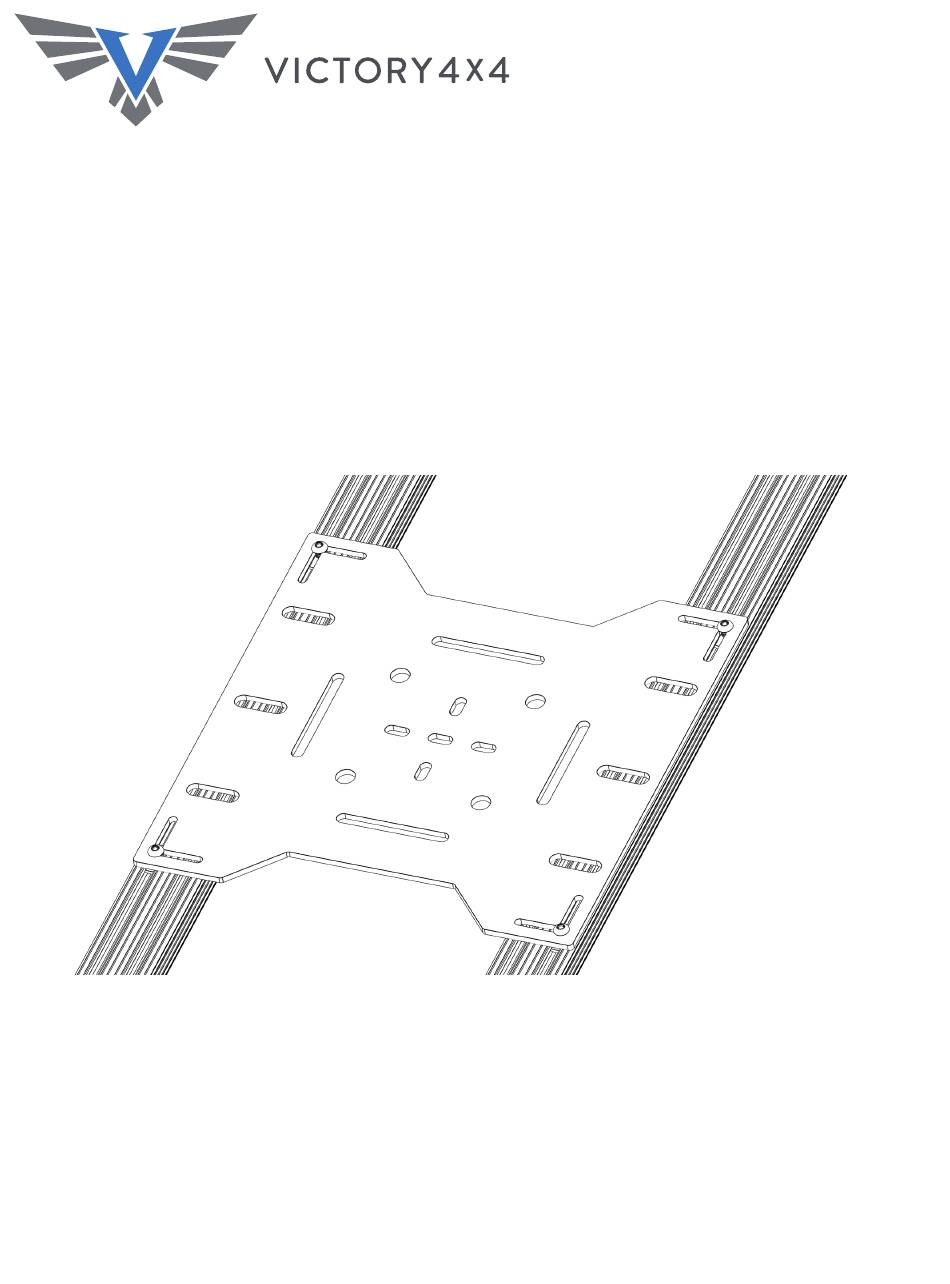

Page 4 I NS TA LL ATI ON Start by sliding 2 t-nuts into each channel in the top of the cross bars that will be used for the installation. Then, place the accessory mount where you would like it and move the t-nuts so that they are under the slots in the panel.
Page 5 TR AC T IO N BOARD MO UN T IN G To mount a traction board, you need a TRACBO-BP and 2 accessory mounts. Bolt the traction board to the accessory mount through any of the 3 large slots on each side. Do this using the carriage bolts on the bottom of the accessory mounts, and the spacers and wing nuts on top of the traction board.
Page 6 ROTO PA X M O UN T I NG To mount a Rotopax, you will need a Rotopax mount that has a detachable mounting plate, or no mounting plate at all. Then, you simply use the hardware that comes with the mount to bolt it into 2 of the slots that make the cross in the middle of the accessory mount.
