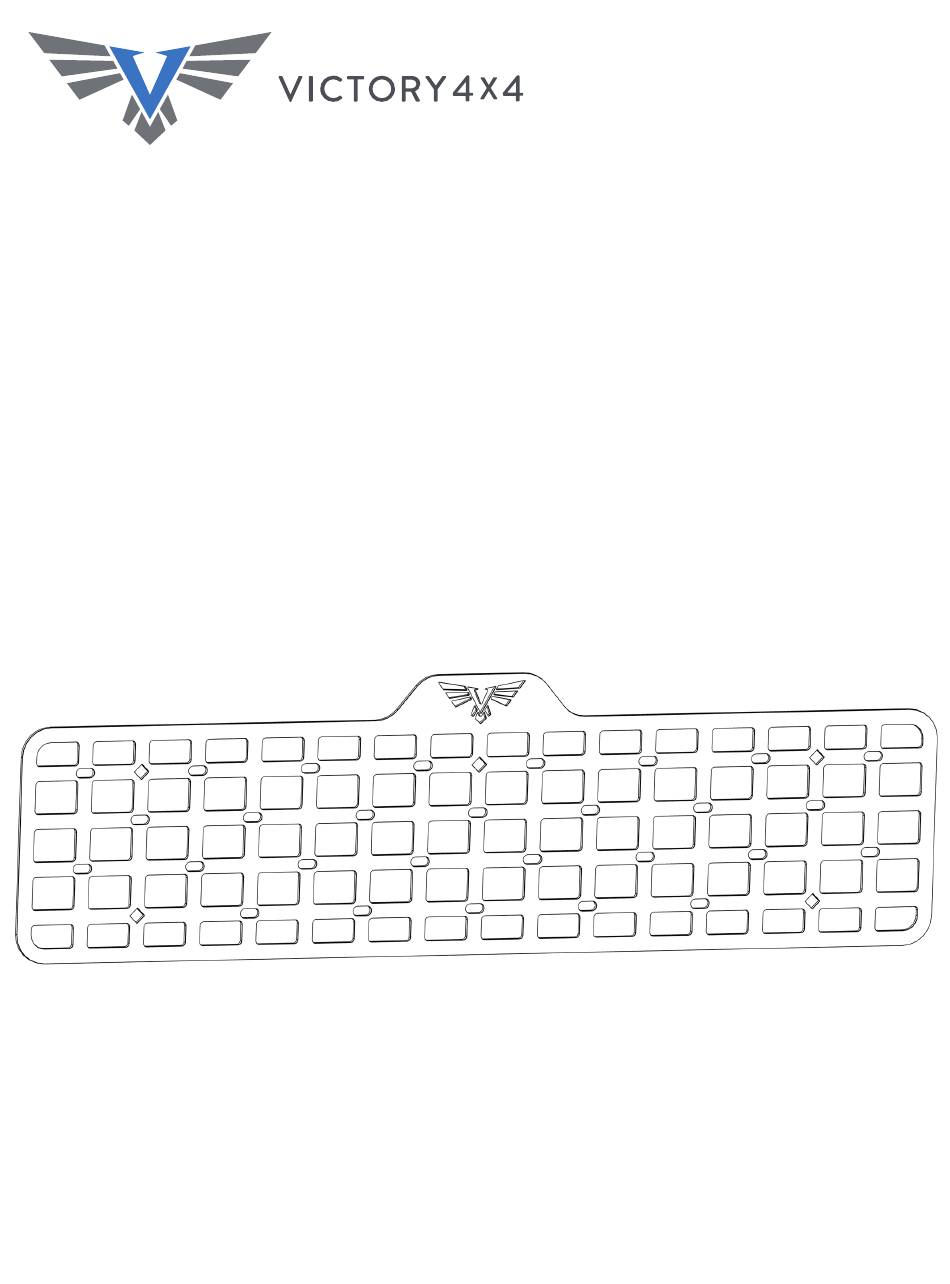

2 00 SE RIE S & L X 57 0
H ATC H MOL LE PANE L
IN S TAL L I NSTRU C TIO NS
Please read the mounting instructions below carefully before attempting to install.
Be sure to check out the install video on the product page, if available.
Thank you for purchasing from JcrOffroad! Checkout our website, www.victory4x4.com for other great off-road
products. Be sure to rate and review our product online. If you have any questions or are missing parts, please
don't hesitate to call us at 269-459-8447!
Advertisement
Table of Contents
Related Manuals for Victory 4x4 V200HMP
Summary of Contents for Victory 4x4 V200HMP
- Page 1 2 00 SE RIE S & L X 57 0 H ATC H MOL LE PANE L IN S TAL L I NSTRU C TIO NS Please read the mounting instructions below carefully before attempting to install. Be sure to check out the install video on the product page, if available. Thank you for purchasing from JcrOffroad! Checkout our website, www.victory4x4.com for other great off-road products.
- Page 2 I NCLU D E D HARDWARE 5/16” Flange Nut 5/16” x 1-1/4” Long Carriage Bolt 3/4” OD Aluminium Spacer...
- Page 3 I NCLU D E D PARTS...
- Page 4 D I S A SS E M B LY Start by opening the rear hatch and popping off the plastic trim around the top of the hatch. Be sure to start with the top middle piece with the 3rd brake light in it. Once the first peice is removed, be sure to un-hook the light from the plastic.
- Page 5 AS SE M BLY Take the provided molle panel and lay it on top of the trim panel and visually line it up in the middle and so it is centered, as shown below. Once the panel is centered, take a sharp punch or a sharpie and mark the center of the (5) diamond shaped mounting holes on the plastic to drill out.
- Page 6 A S SE M B LY Take a step bit and drill your (5) marked holes out to 5/16” to accomodate the provided carriage bolts. After your holes are drilled, install the (5) provided carriage bolts and aluminum sapcers, as shown in the orientation below, and line them up with the drilled holes on top of the plastic.
- Page 7 AS SE M BLY Once your panel is secure to your plastic hatch piece, you can then start to re-assemble that back onto your vehicle with the rest of the trim pieces that were removed. Be sure to clip the 3rd brake light back in before clipping the hatch fully back into place.
