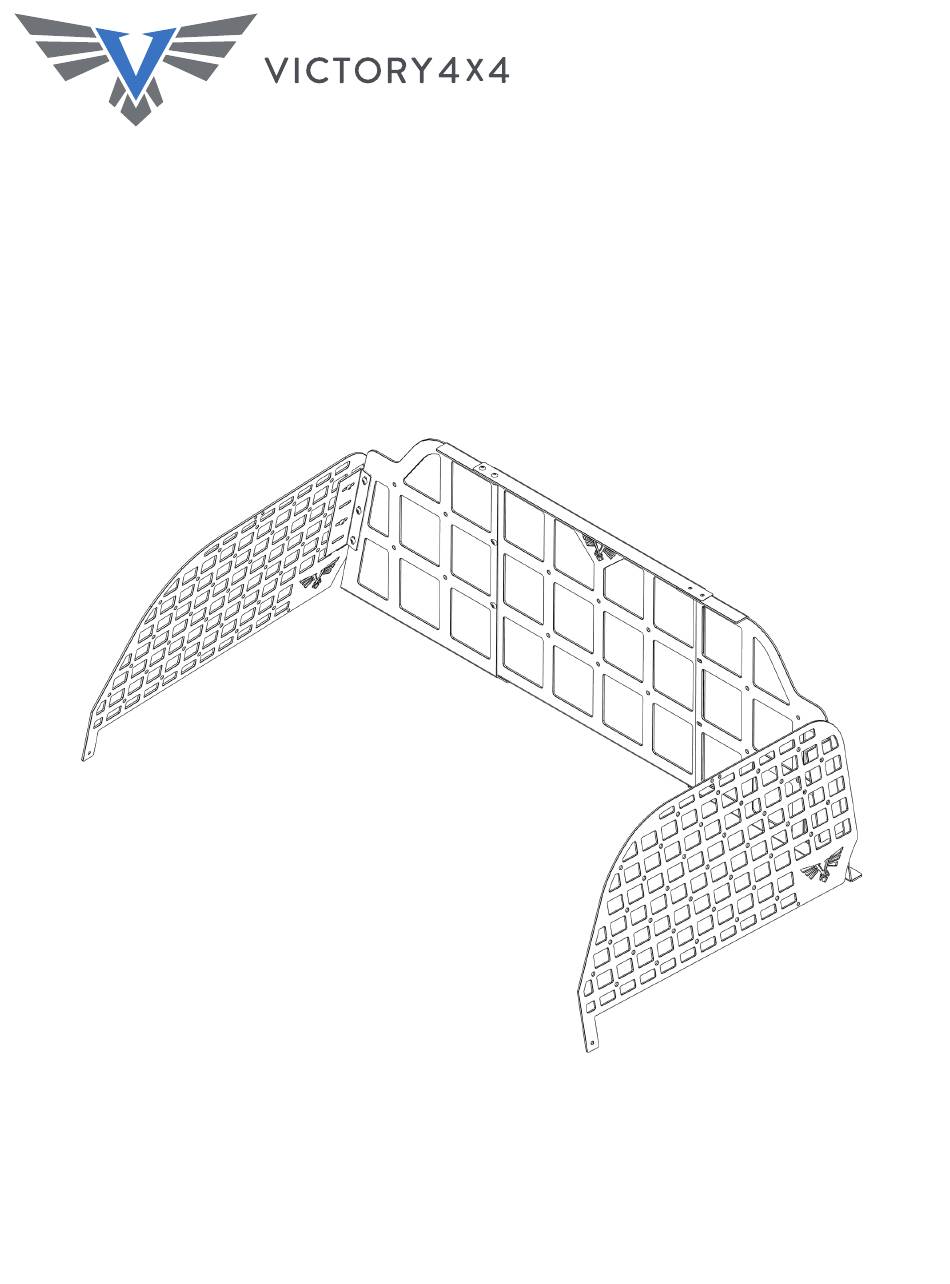

Victory 4x4 V4R-PET Install Instructions

5th gen 4runner pet divider

5TH GE N 4RU NN ER

PET DI VID ER

INS TAL L I NSTRUC T ION S

Please read the mounting instructions below carefully before attempting to install.

Be sure to check out the install video on the product page, if available.

Thank you for purchasing from Victory 4x4! Checkout our website, victory4x4.com for other great off-road

products. Be sure to rate and review our product online. If you have any questions or are missing parts, please

don't hesitate to call us at 269-459-8447!

Table of Contents

Need help?

Do you have a question about the V4R-PET and is the answer not in the manual?

Page 1 Be sure to check out the install video on the product page, if available. Thank you for purchasing from Victory 4x4! Checkout our website, victory4x4.com for other great off-road products. Be sure to rate and review our product online. If you have any questions or are missing parts, please...
Page 2 I NCLU D E D HARDWARE 1/4”-20 1/4”-20 3/4” Serr. Flange Nut Button Head...
Page 3 I NCLU D E D PARTS...

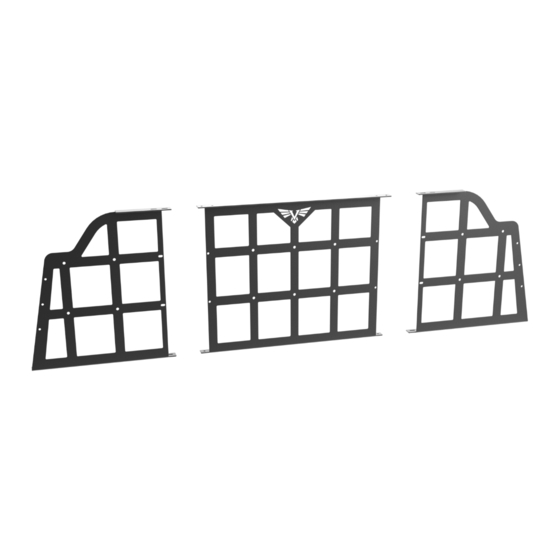

Page 4 I NS TA LL ATI ON Start by connecting the provided bracket to the molle panel, as shown and oriented below. Using (2) of the provided 1/4”-20 button heads and flange nuts to secure. Repeat this process for the other side. Next, assemble your (3) provided panel pieces together, as shown and oriented below.
Page 5 I NSTA LL ATI ON Once your (3) panel pieces are assembled and hardware tight, secure the pet divider to the brackets on molle panel with (3) provided 1/4”-20 button heads and flange nuts. Secure as shown in the orientation below on each side.
