MAKE UNIT ELECTRICAL
6
CONNECTIONS
1. Connect the thermostat wires to the unit and set
the dip switches to the appropriate settings.
NOTE: See the Controls–Terminal Connections
and Controls–Dip Switches sections
of this manual and the manual with
the separate thermostat for proper
connections and settings.
Thermostat
Maximum Wiring
Length for Thermostat
Connection to the Unit
66 ft. for AWG 18
60 ft. for AWG 20
40 ft. for AWG 24
AWG – American Wire Gauge
Unit Connections
2. Make power connections to the unit.
NOTE: See the ELECTRICAL REQUIREMENTS and
DIRECT CONNECT APPLICATIONS sections,
as appropriate, of this manual for proper
connections.
3. Replace the case front panel by replacing the four
front screws and the two top screws.
Installation Instructions
21

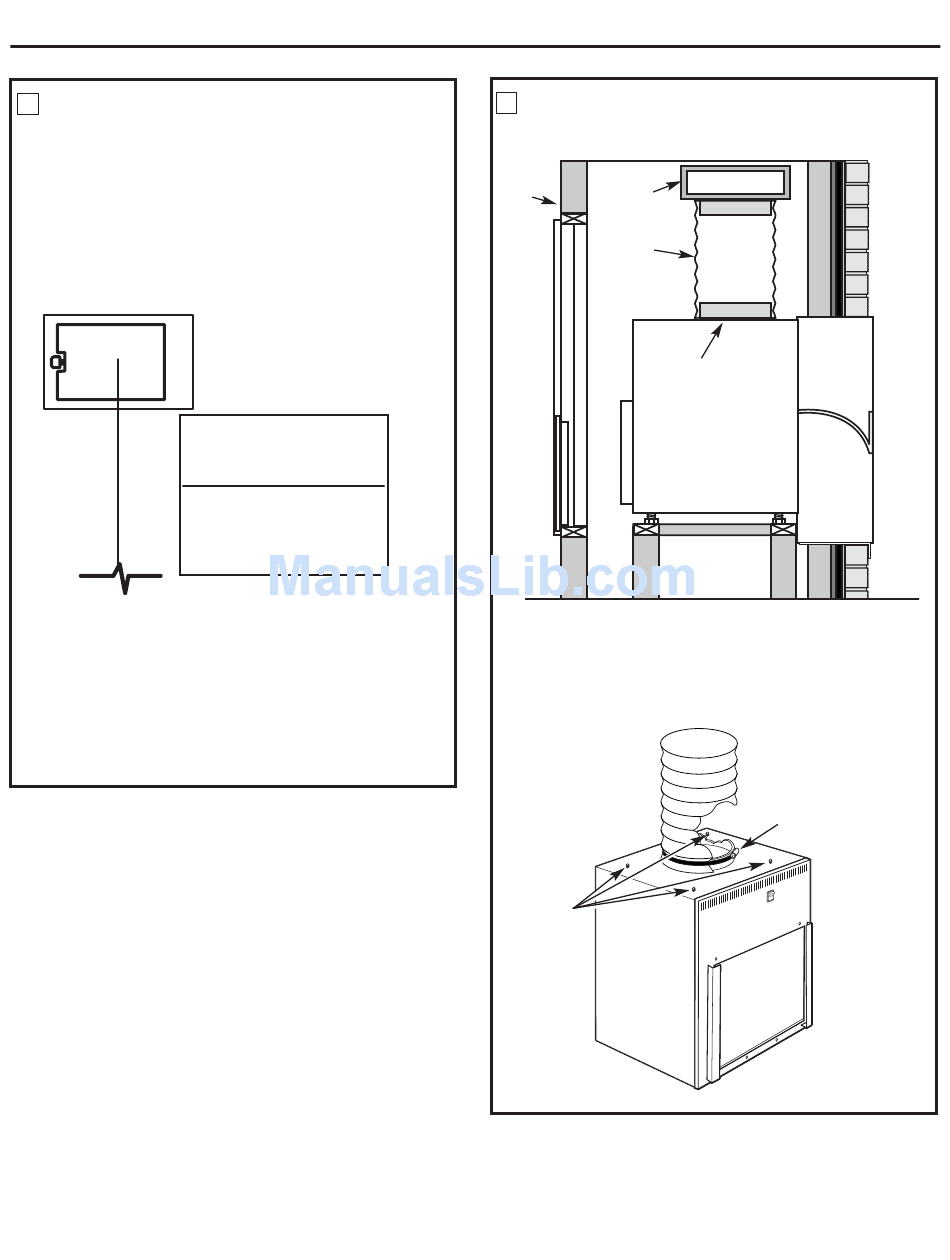

CONNECT THE TOP DUCT
7
1. Install the duct onto the air discharge outlet.
Inside
wall
Rigid
ductwork
Flexible or rigid
ductwork
2. Secure the top duct to the unit by turning the four
case top duct adjusting screws until they are tight.
Use a field supplied clamp to lock the top duct
to the case.
Case top
duct adjusting
screws
Air
discharge
outlet
Top duct
Clamp
