Installation Instructions

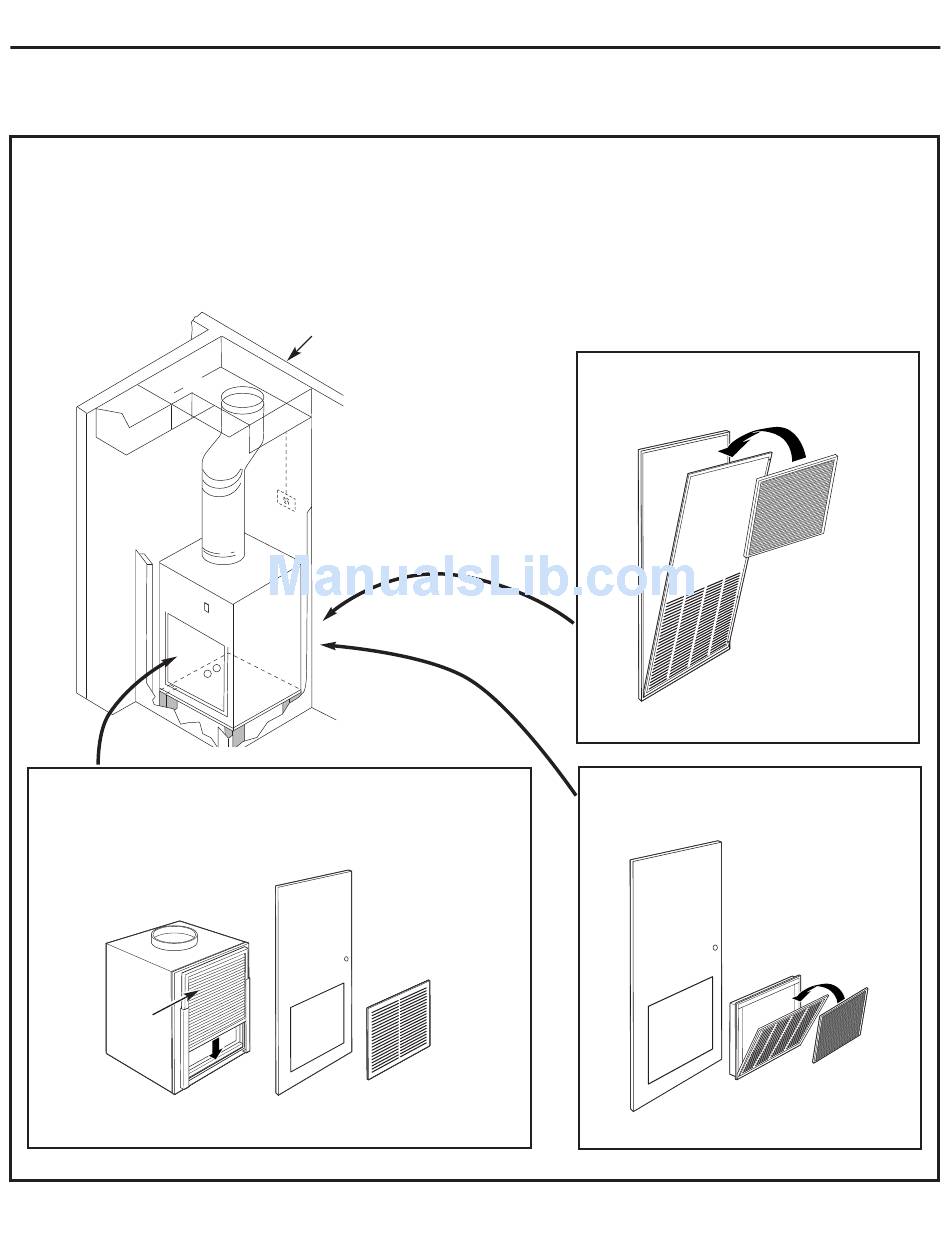

RETURN AIR GRILLE INSTALLATION OPTIONS

The room return air grille may be installed toward the front or either side of the unit. Improper return air arrangements

will cause performance problems.

There are three indoor return air grille installation options. Choose the option that best suits your installation

requirements. Follow the Installation Instructions provided with the return air grille accessory for installation details.

NOTE: Use only one filter in the installation. The filter may be installed on the unit or in the access panel/door.

Outside wall

RAVRG1 – Access panel with

return air grille

Filter

Option 1

RAVRG2 – Return air grille

Unit-mounted filter with a field-supplied return

air grille and access door/panel

Filter

Option 3

Option 2
