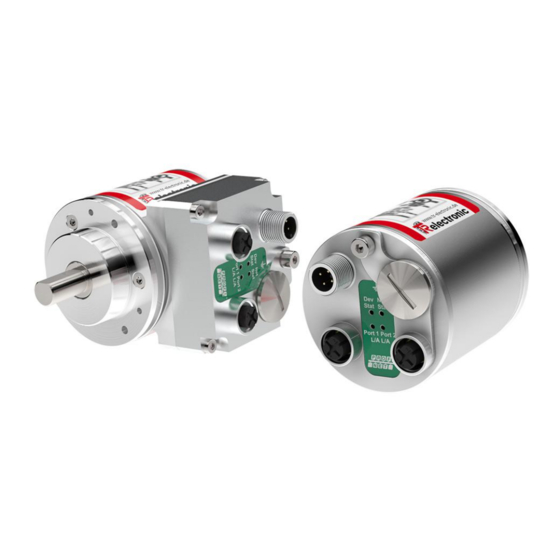

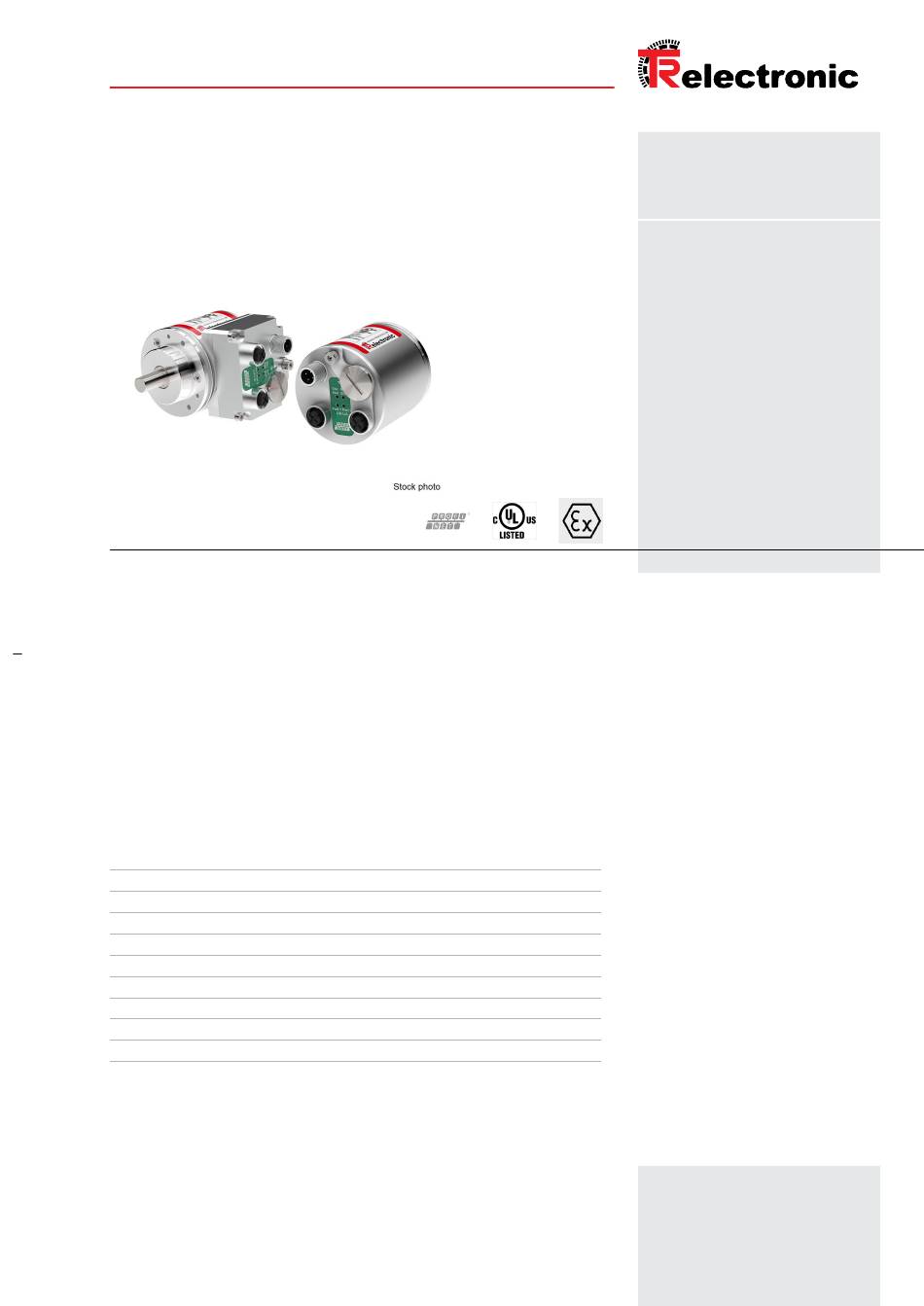

AEV582M*8192/4096 EPN 36ZB10FL
Technical data for AEV582M-00001
NO.OF STEPS/REV
NO. OF REVOLUTIONS
INTERFACE
CODE
SUPPLY VOLTAGE
POWER DISSIPATION
CONNECTOR TYPE
CONNECTOR-POSITION
MATING PLUG
8.192,000
4.096,000
PROFINET IO
BINARY
10-30V
<4 Watt
1X4P.M12-CONNECTOR
2X4P.M12-CONN., D-COD(FEMALE)
RADIAL
NO
Page 1/4
Order-#: AEV582M-00001
7.10.2021 / 010102058202030201
Advantages
_
Ex-Protection Zone 2/22
_
Fast start-up, FSU
_
Isochronous applications, IRT
_
Media-Redundancy Protocol,
MRP
_
Parameterizable gear unit
_
PNO Encoder Profile, CL 3/4
_
Preset "on the fly"
Subject to change.
TR-Electronic GmbH
Eglishalde 6
78647 Trossingen
Tel. +49 (0) 7425 228-0
info@tr-electronic.de
www.tr-electronic.de
Advertisement
Table of Contents
Related Manuals for TR-Electronic AEV582M Series
Summary of Contents for TR-Electronic AEV582M Series
- Page 1 4.096,000 INTERFACE PROFINET IO CODE BINARY SUPPLY VOLTAGE 10-30V POWER DISSIPATION <4 Watt CONNECTOR TYPE 1X4P.M12-CONNECTOR 2X4P.M12-CONN., D-COD(FEMALE) CONNECTOR-POSITION RADIAL MATING PLUG Subject to change. TR-Electronic GmbH Eglishalde 6 78647 Trossingen Tel. +49 (0) 7425 228-0 Page 1/4 info@tr-electronic.de www.tr-electronic.de...
- Page 2 - Physical Layer Fast Ethernet, ISO/IEC 8802-3 - PROFINET-Specification V2.3 - Conformance Class B, C - Real-Time-Classes Class 1, 2 (RT), Class 3 (IRT) Subject to change. TR-Electronic GmbH Eglishalde 6 78647 Trossingen Tel. +49 (0) 7425 228-0 Page 2/4 info@tr-electronic.de www.tr-electronic.de...
- Page 3 0.3…0.5 kg Environmental data Vibration DIN EN 60068-2-6 - Specific value <= 100 m/s² - Sine 50…2000 Hz Shock DIN EN 60068-2-27 Subject to change. TR-Electronic GmbH Eglishalde 6 78647 Trossingen Tel. +49 (0) 7425 228-0 Page 3/4 info@tr-electronic.de www.tr-electronic.de...
- Page 4 - Ignition protection type tc (Protection by enclosure) - Group IIIC (conductive dust) - Temperature, surface T130°C - Special conditions yes (X), observe Ex manual Subject to change. TR-Electronic GmbH Eglishalde 6 78647 Trossingen Tel. +49 (0) 7425 228-0 Page 4/4 info@tr-electronic.de www.tr-electronic.de...
- Page 5 ☎ ☎ ☎ ☎ Tel. +49 7425 228-0 ✄ ✄ ✄ ✄ Drawing-No. only für this type valid ✂ ✂ ✂ ✂ www.tr-electronic.de ✁ ✁ ✁ ✁ Datum Name AEV-582-M, 36er Zentr. Erstellt 07.11.2017 FLAIG Bearb. 12.08.2021 FLAIG Gepr. 13.08.2021...
- Page 6 Steckerbelegung / Pin assignment Baureihe 582 / 802 / 1102 PROFINET Netzwerkparameter zurücksetzen / axialer Steckerabgang / radialer Steckerabgang / Reset Network Parameters axial connector outlet radial connector outlet - Verschlussschraube entfernen / Remove sealing screw - Taster ≥ 3 sek. betätigen / Press button ≥...
- Page 7 Steckerbelegung / Pin assignment Die Schirmung ist großflächig auf das Gegensteckergehäuse aufzulegen! Empfehlung: Potentialausgleich [A] großflächig mit dem Erdungsanschluss verbinden. / The shielding is to be connected with large surface on the mating connector housing! Recommendation: Connect the potential equalisation [A] to the grounding connection across a sufficiently sized surface.
