Rotary Encoder A**100*

potentially explosive areas

0123

II 2 G Ex db IIC T6...T4 Gb

II 2 D Ex tb IIIC T80°C...T130°C Db

Date of manufacture: DD.MM.YYYY

_Basic safety instructions

_Intended use

_Product description

_Technical data

_Explosion protection characteristics

_Assembly

TR-Explosionsschutzgehäuse

for use in

A*W70

Original

Certifications

- IBExU 17 ATEX 1042 X

- IECEx IBE 21.0024 X

User Manual

Table of Contents

Need help?

Do you have a question about the A 100 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for TR-Electronic A 100 Series

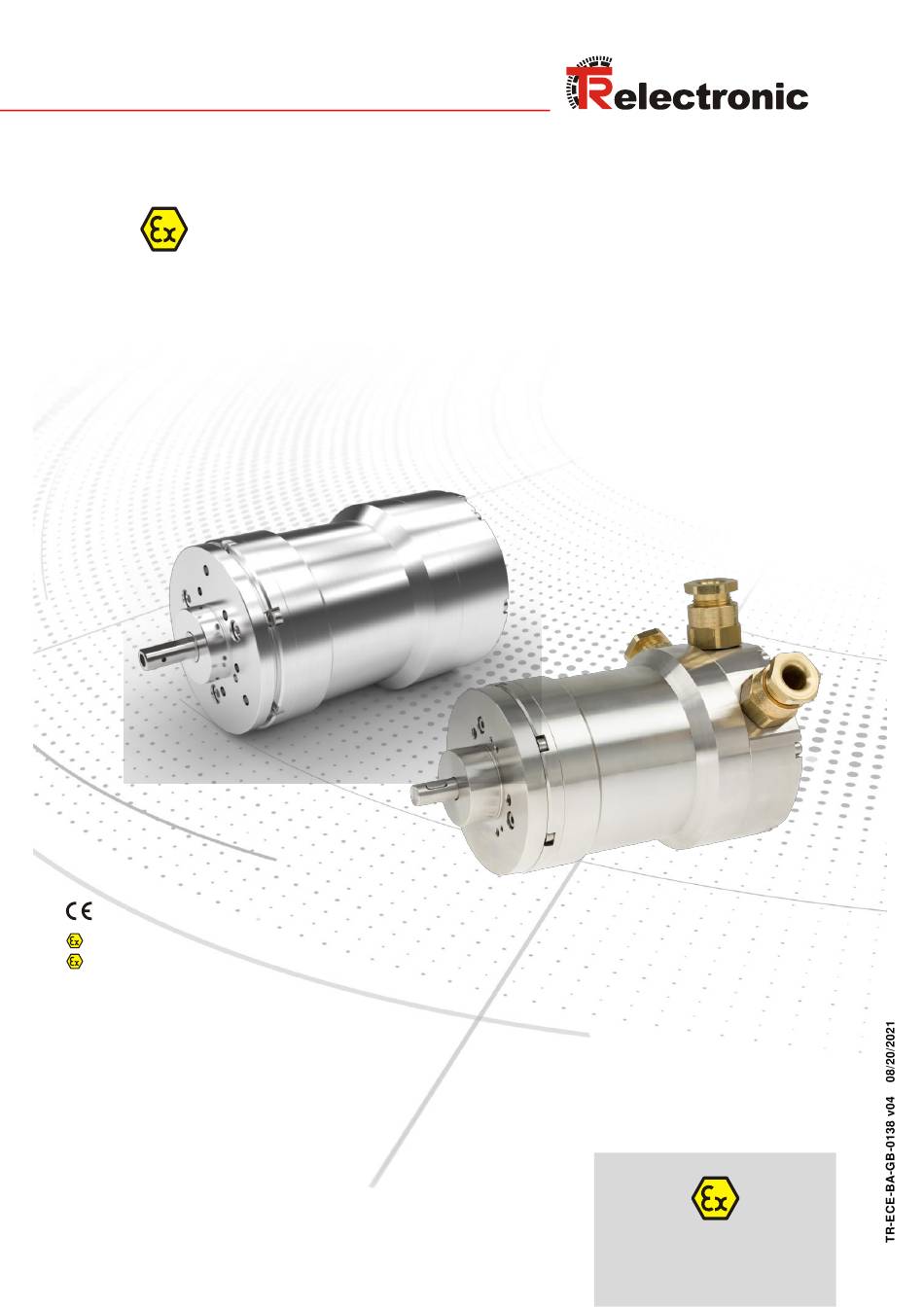

Page 1 Original Rotary Encoder A**100* TR-Explosionsschutzgehäuse for use in A*W70 potentially explosive areas 0123 II 2 G Ex db IIC T6…T4 Gb II 2 D Ex tb IIIC T80°C…T130°C Db Date of manufacture: DD.MM.YYYY _Basic safety instructions Certifications _Intended use - IBExU 17 ATEX 1042 X - IECEx IBE 21.0024 X _Product description _Technical data...
Page 2 Courier-text shows text which is visible on the display or screen as well as soft- ware menu-selections.   < > refers to keys on your computer keyboard (e.g. <RETURN>).  TR-Electronic GmbH 2019, All Rights Reserved Printed in the Federal Republic of Germany Page 2 of 47 TR-ECE-BA-GB-0138 v04 08/20/2021...
Page 3: Table Of Contents
4.5.1 Ex-labeling, gas ...................... 21 4.5.2 Ex-labeling, dust ..................... 22 5 Assembly ............................23 5.1 Safety-related applications ..................... 23  TR-Electronic GmbH 2019, All Rights Reserved Printed in the Federal Republic of Germany 08/20/2021 TR-ECE-BA-GB-0138 v04 Page 3 of 47...
Page 4 9.2 EU declaration of conformity, A**100 + Functional safety ............40 9.3 IECEx certificate ........................42 9.4 Accessories ..........................46 9.5 Drawing ........................... 47  TR-Electronic GmbH 2019, All Rights Reserved Printed in the Federal Republic of Germany Page 4 of 47 TR-ECE-BA-GB-0138 v04...
Page 5: Amendment-Index
- "X" requirements, such as ESD … 08/20/21 - Correction of the mechanical characteristics -> speed class: "shaft seal" omitted, see chapter 4.2  TR-Electronic GmbH 2019, All Rights Reserved Printed in the Federal Republic of Germany 08/20/2021 TR-ECE-BA-GB-0138 v04...
Page 6: General
Solid shaft Blind shaft External diameter  100 mm Single turn Multi turn Consecutive number * = Wild cards  TR-Electronic GmbH 2019, All Rights Reserved Printed in the Federal Republic of Germany Page 6 of 47 TR-ECE-BA-GB-0138 v04 08/20/2021...
Page 7: Scope
-User manual  interface-specific user manual  Pin assignment  Product data sheet  optional: Safety Manual for safety-related applications  TR-Electronic GmbH 2019, All Rights Reserved Printed in the Federal Republic of Germany 08/20/2021 TR-ECE-BA-GB-0138 v04 Page 7 of 47...
Page 8: Relevant Directives And Standards
International Electro-technical Commission International Electro-technical Commission IECEx IEC certification system for potentially explosive areas Association for Electrical, Electronic & Information Technologies  TR-Electronic GmbH 2019, All Rights Reserved Printed in the Federal Republic of Germany Page 8 of 47 TR-ECE-BA-GB-0138 v04 08/20/2021...
Page 9: Product Description
Ex-Zone 1 or Ex-Zone 21. The rotary encoder consists of a flameproof en- capsulated enclosure (6) made of stainless steel or aluminum. The evaluation elec- tronics for detection of the position change is installed by TR-Electronic. The signal of the position change respectively angle change is transmitted by a bearing-mounted shaft (5) by means of a rotary encoder.
Page 10: Basic Safety Instructions
ESD-safety measures according to DIN EN 61340-5-1 supplement 1 are to be observed.  TR-Electronic GmbH 2019, All Rights Reserved Printed in the Federal Republic of Germany Page 10 of 47 TR-ECE-BA-GB-0138 v04...
Page 11: Obligation Of The Operator Prior To Commissioning
De-energize the system before carrying out wiring work or opening and closing elec- trical connections. The equipment may not be operated in case of defects and dust deposits must be removed basically.  TR-Electronic GmbH 2019, All Rights Reserved Printed in the Federal Republic of Germany 08/20/2021...
Page 12: Intended Use
(IECEx CoC) and possible prohibition- or instruction labels on the equipment,  observation of the enclosed documents,  operating of the equipment within the limits indicated in the technical data.  TR-Electronic GmbH 2019, All Rights Reserved Printed in the Federal Republic of Germany Page 12 of 47...
Page 13: Non-Intended Use
These additional assembly requirements are component of the safety manual and must be taken into account. In general, the requirements and acceptance conditions for the complete system must be taken into account for mounting.  TR-Electronic GmbH 2019, All Rights Reserved Printed in the Federal Republic of Germany 08/20/2021...
Page 14: Warranty And Liability
2.7 Warranty and liability The "General terms and conditions" (“Allgemeine Geschäftsbedingungen”) of the company TR-Electronic GmbH apply in general. This will be available to the operator with the contract confirmation or –conclusion at the latest. Warranty- or liability claims with regards to personal- and property damage are excluded, if they are the result of one or more of the following causes: ...
Page 15: Personnel Selection And -Qualification; Basic Obligations
"expert person with leadership functions" and the "performing personnel", the EN/IEC 60079-17 standard is to be additionally consulted [suppliers e.g. Beuth Ver- lag GmbH, VDE-Verlag GmbH].  TR-Electronic GmbH 2019, All Rights Reserved Printed in the Federal Republic of Germany 08/20/2021...
Page 16: First Commissioning / Commissioning
For metal enclosures in potentially explosive areas an equipotential line with at least 4 mm is required.  TR-Electronic GmbH 2019, All Rights Reserved Printed in the Federal Republic of Germany Page 16 of 47 TR-ECE-BA-GB-0138 v04...
Page 17: Inspection, Maintenance And Repair
 The general instructions for repairs are to be adhered to, see the chapter " Special conditions for safe use, marking "X" " on page 18.  TR-Electronic GmbH 2019, All Rights Reserved Printed in the Federal Republic of Germany...
Page 18: Special Conditions For Safe Use, Marking "X
 The connection of the free ends of the cables must either take place outside of the potentially explosive area or within of an equipment which is permitted for the re- spective device category.  TR-Electronic GmbH 2019, All Rights Reserved Printed in the Federal Republic of Germany Page 18 of 47...
Page 19: Transport / Storage
Inappropriate packaging material may cause damage to the device during transport. Storage Storage temperature: -30 to +80°C Store in a dry place  TR-Electronic GmbH 2019, All Rights Reserved Printed in the Federal Republic of Germany 08/20/2021 TR-ECE-BA-GB-0138 v04 Page 19 of 47...
Page 20: Technical Data
Relative humidity, DIN EN 60068-3-4 ....95 %, non-condensing Protection class, DIN EN 60529 ......IP 65 Optional with shaft sealing ring ......IP 67  TR-Electronic GmbH 2019, All Rights Reserved Printed in the Federal Republic of Germany Page 20 of 47 TR-ECE-BA-GB-0138 v04...
Page 21: Explosion Protection Characteristics
 85 °C T6 ................G “b” (Zone 1): EPL (Device protection level) ......... adequate safety in case of predictable failures  TR-Electronic GmbH 2019, All Rights Reserved Printed in the Federal Republic of Germany 08/20/2021 TR-ECE-BA-GB-0138 v04 Page 21 of 47...
Page 22: Ex-Labeling, Dust
 80 °C T80°C ..............D “b” (Zone 21): EPL (Device protection level) ......... adequate safety in case of predictable failures  TR-Electronic GmbH 2019, All Rights Reserved Printed in the Federal Republic of Germany Page 22 of 47 TR-ECE-BA-GB-0138 v04 08/20/2021...
Page 23: Assembly
5.1 Safety-related applications The assembly in safety-related applications is to be made in accordance with the Safety Manual, see chapter “Usage in safety-related applications” on page 13.  TR-Electronic GmbH 2019, All Rights Reserved Printed in the Federal Republic of Germany 08/20/2021...
Page 24: Non Safety-Related Applications
1: EX-conformant coupling 2: Machine 3: Centering collar Principle Figure 2: Flange-assembly  TR-Electronic GmbH 2019, All Rights Reserved Printed in the Federal Republic of Germany Page 24 of 47 TR-ECE-BA-GB-0138 v04 08/20/2021...
Page 25: Clamp Flange - Assembly
1: EX-conformant coupling 2: Clamp flange 3: Centering collar Principle Figure 3: Clamp flange - assembly  TR-Electronic GmbH 2019, All Rights Reserved Printed in the Federal Republic of Germany 08/20/2021 TR-ECE-BA-GB-0138 v04 Page 25 of 47...
Page 26: Temperatures / Ip Protection Classes / Enclosure Materials / Speeds
Power class The evaluation shows that there are limitations in ambient temperatures and power classes compared to parameter configuration 1.  TR-Electronic GmbH 2019, All Rights Reserved Printed in the Federal Republic of Germany Page 26 of 47 TR-ECE-BA-GB-0138 v04...
Page 27: Stainless Steel - Explosion Protection Enclosure
The evaluation in case of IP67 shows that there are limitations in ambient tempera- tures and power classes.  TR-Electronic GmbH 2019, All Rights Reserved Printed in the Federal Republic of Germany 08/20/2021 TR-ECE-BA-GB-0138 v04...
Page 28 The evaluation in case of IP67 shows that this configuration also cannot be imple- mented in the stainless steel version.  TR-Electronic GmbH 2019, All Rights Reserved Printed in the Federal Republic of Germany Page 28 of 47...
Page 29: Connection / Shielding
2014/34/EU or IECEx system and type-examination certificate Cable inlet M20x1.5, (6): compliant according to 2014/34/EU or IECEx system and type-examination certificate  TR-Electronic GmbH 2019, All Rights Reserved Printed in the Federal Republic of Germany 08/20/2021 TR-ECE-BA-GB-0138 v04...
Page 30: Requirements For Cable Inlets And Sealing Plugs
In the speed class 6000 min AND the power class 6.0 W, the maximum ambient temperatures must be reduced by 10 °C.  TR-Electronic GmbH 2019, All Rights Reserved Printed in the Federal Republic of Germany Page 30 of 47...
Page 31: Cable Requirements
+100 °C In the speed class 6000 min AND the power class 6.0 W, the maximum ambient temperatures must be reduced by 10 °C.  TR-Electronic GmbH 2019, All Rights Reserved Printed in the Federal Republic of Germany 08/20/2021 TR-ECE-BA-GB-0138 v04...
Page 32: Connection / Perform Shielding
Prepare the cable inlet as shown below and ensure that it is not damaged, fat-free and clean. In particular, the O-ring (2) shall be checked for correct seat and damage. Figure 6: Cable inlet M20x1.5  TR-Electronic GmbH 2019, All Rights Reserved Printed in the Federal Republic of Germany Page 32 of 47...
Page 33 (C). Figure 9: Prepare cable Loosen grommet nut (4), to loose the sealing (3). Figure 10: Loosen grommet nut  TR-Electronic GmbH 2019, All Rights Reserved Printed in the Federal Republic of Germany 08/20/2021 TR-ECE-BA-GB-0138 v04 Page 33 of 47...
Page 34 (3), tighten screws of the cable clamp (3). Figure 12: Connection cap with axial (A) and radial (B) cable inlets  TR-Electronic GmbH 2019, All Rights Reserved Printed in the Federal Republic of Germany Page 34 of 47...
Page 35: Close Securely The Connection Cap
(6) fitting holes (7). Place the connection cap (1) with the hand vertically and without any cants on the ex- plosion protection enclosure (6).  TR-Electronic GmbH 2019, All Rights Reserved Printed in the Federal Republic of Germany 08/20/2021...
Page 36: Equipotential Bonding Conductor
Figure 15: Equipotential bonding conductor – Connection 8 Disposal Electronic waste is hazardous waste. The applicable country-specific regulations are to be adhered to for disposal.  TR-Electronic GmbH 2019, All Rights Reserved Printed in the Federal Republic of Germany Page 36 of 47 TR-ECE-BA-GB-0138 v04...
Page 40: Eu Declaration Of Conformity, A**100 + Functional Safety
Annex 9.2 EU declaration of conformity, A**100 + Functional safety  TR-Electronic GmbH 2019, All Rights Reserved Printed in the Federal Republic of Germany Page 40 of 47 TR-ECE-BA-GB-0138 v04 08/20/2021...
Page 46: Accessories
Brass / Stainless steel Sealing plug Ex „d“ M20x1.5, 15 mm on request Brass / Stainless steel Connection cable on request  TR-Electronic GmbH 2019, All Rights Reserved Printed in the Federal Republic of Germany Page 46 of 47 TR-ECE-BA-GB-0138 v04 08/20/2021...
