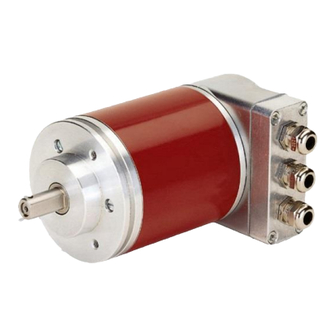

Absolute Encoder CE_-65
CES-65
_Zusätzliche Sicherheitshinweise
_Installation
_Inbetriebnahme
_Konfiguration / Parametrierung
_Störungsbeseitigung / Diagnosemöglichkeiten
_Additional safety instructions
_Installation
_Commissioning
_Configuration / Parameterization
_Troubleshooting / Diagnostic options
4376AA/65/V058
D
Seite 2 - 66
GB
Page 67 - 131
CEV-65
CEK-65
Benutzerhandbuch
User Manual

Advertisement

Chapters

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CES-65 and is the answer not in the manual?

Questions and answers

Rosetta Akins
May 21, 2025

Difference between a CE65S and a CE65S-005 encoder

0
1 comments:
Mr. Anderson
May 24, 2025

Based on the context provided:

- The TR-Electronic CES-65 encoder is an absolute encoder with an optical scanning unit, ≤15-bit resolution, and a blind shaft.

- The CES-65S-005 encoder appears to be a specific variant of the CES-65. While the context does not provide full details on the "S-005" suffix, such suffixes typically indicate specific configurations or options such as resolution, interface, or mechanical design.

The key difference is that CES-65 is the general model, while CES-65S-005 is a specific version with defined parameters. However, exact details of "S-005" are not provided in the context.

Therefore, the difference is that CES-65S-005 is a specific configuration of the general CES-65 model.

This answer is automatically generated

0

Related Manuals for TR-Electronic CES-65

Summary of Contents for TR-Electronic CES-65

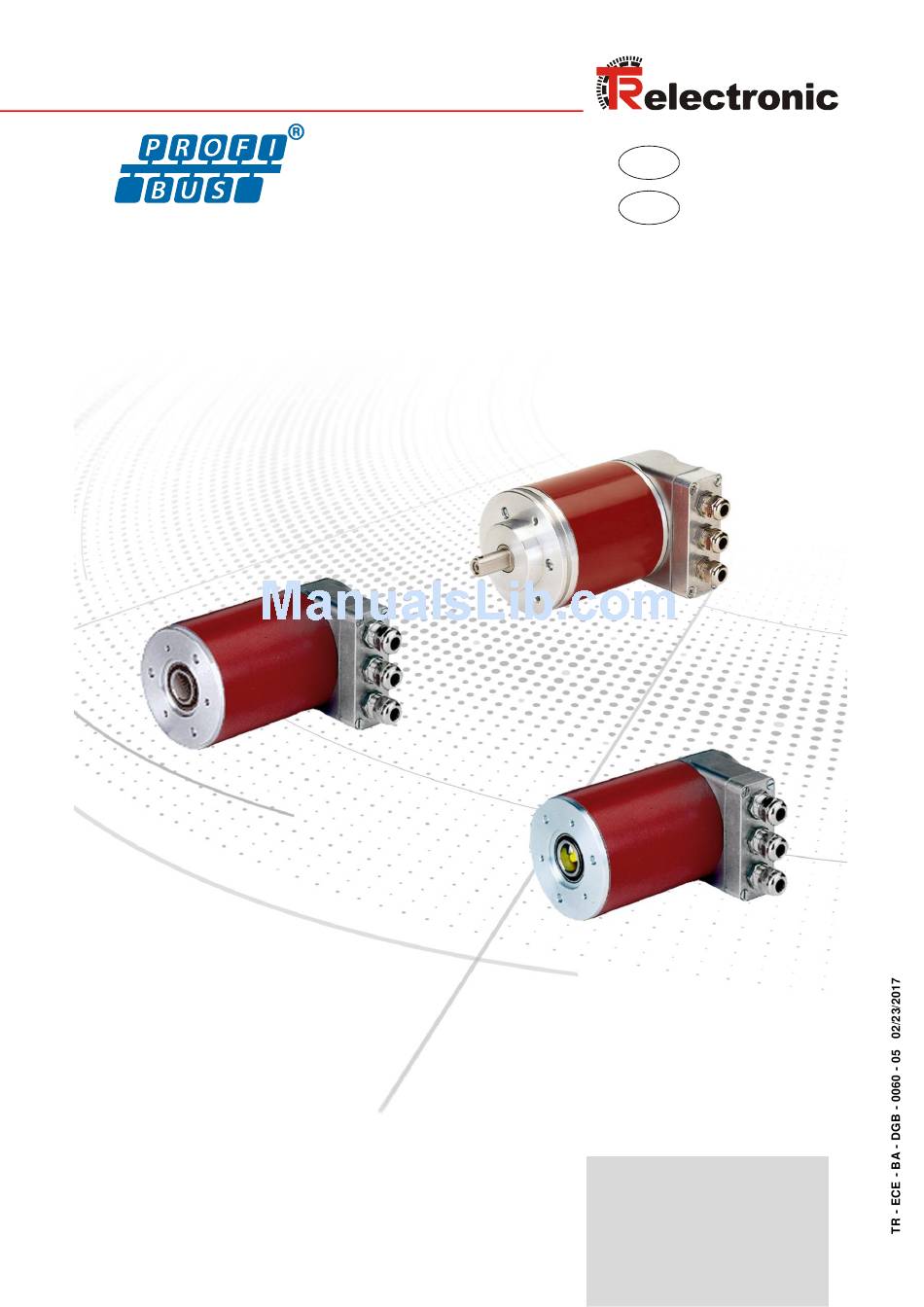

  • Page 1 Seite 2 - 66 Page 67 - 131 +SSI Absolute Encoder CE_-65 CEV-65 CES-65 _Zusätzliche Sicherheitshinweise CEK-65 _Installation _Inbetriebnahme _Konfiguration / Parametrierung _Störungsbeseitigung / Diagnosemöglichkeiten _Additional safety instructions _Installation _Commissioning _Configuration / Parameterization _Troubleshooting / Diagnostic options Benutzerhandbuch User Manual...
  • Page 2 PROFIBUS-DP und das PROFIBUS-Logo sind eingetragene Warenzeichen der PROFIBUS Nutzerorganisation e.V. (PNO) SIMATIC ist ein eingetragenes Warenzeichen der SIEMENS AG  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany Page 2 of 131 TR - ECE - BA - DGB - 0060 - 05...

  • Page 3: Table Of Contents

    6.2 PNO CLASS 1 16-Bit ......................25 6.3 PNO CLASS 1 32-Bit ......................26 6.4 PNO CLASS 2 16-Bit ......................27  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany 02/23/2017 TR - ECE - BA - DGB - 0060 - 05...
  • Page 4 7.2.2.17 Seriennummer ........................64 7.2.2.18 Herstellerspezifische Diagnosen ..................65 7.3 Sonstige Störungen ........................ 65  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany Page 4 of 131 TR - ECE - BA - DGB - 0060 - 05...

  • Page 5: Änderungs-Index

    Verweis auf Support-DVD entfernt 02.02.16 - LED-Verhalten angepasst 23.02.17 - Technische Daten entfernt  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany 02/23/2017 TR - ECE - BA - DGB - 0060 - 05 Page 5 of 131...

  • Page 6: Allgemeines

    Es gelten somit zusammen folgende Dokumentationen:  siehe Kapitel „Mitgeltende Dokumente“ in der Montageanleitung www.tr-electronic.de/f/TR-ECE-BA-DGB-0046.  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany Page 6 of 131 TR - ECE - BA - DGB - 0060 - 05...

  • Page 7: Verwendete Abkürzungen / Begriffe

    Dezentralized Periphery (Dezentrale Peripherie) Elektro-Magnetische-Verträglichkeit Geräte-Stammdaten-Datei PROFIBUS Nutzerorganisation e.V. PROFIBUS herstellerunabhängiger, offener Feldbusstandard  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany 02/23/2017 TR - ECE - BA - DGB - 0060 - 05 Page 7 of 131...

  • Page 8: Zusätzliche Sicherheitshinweise

    Beachten der Montageanleitung, insbesondere das dort enthaltene Kapitel "Grundlegende Sicherheitshinweise" muss vor Arbeitsbeginn gelesen und verstanden worden sein  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany Page 8 of 131 TR - ECE - BA - DGB - 0060 - 05...

  • Page 9: Organisatorische Maßnahmen

    Dies gilt in besonderem Maße für nur gelegentlich, z. B. bei der Parametrierung des Mess-Systems, tätig werdendes Personal.  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany 02/23/2017 TR - ECE - BA - DGB - 0060 - 05...

  • Page 10: Schnittstellen Informationen

    Datenaustausch in der Feldebene konzipiert ist. Die Grundfunktionalität wird durch die Leistungsstufe V0 festgelegt. Dazu gehören der zyklische Datenaustausch sowie die stations-, modul- und kanalspezifische Diagnose.  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany Page 10 of 131...

  • Page 11: Ssi

    N.C. SSI-Clock- 65 Abbildung 1: SSI Prinzip-Eingangsschaltung Abbildung 2: SSI-Ausgangsschaltung  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany 02/23/2017 TR - ECE - BA - DGB - 0060 - 05 Page 11 of 131...

  • Page 12: Installation / Inbetriebnahmevorbereitung

    Bei der Auslieferung des Mess-Systems wird jeweils eine Steckerbelegung in gedruckter Form beigelegt. Die Steckerbelegungsnummer ist auch auf dem Typenschild des Mess-Systems vermerkt.  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany Page 12 of 131...

  • Page 13: Profibus - Schnittstelle

    Richtlinien und sonstige einschlägige Normen und Richtlinien zu beachten! Insbesondere sind die EMV-Richtlinie sowie die Schirmungs- und Erdungsrichtlinien in den jeweils gültigen Fassungen zu beachten!  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany 02/23/2017...

  • Page 14: Bus-Terminierung

    Stationsadresse läuft das Gerät nicht an, LEDs = AUS.  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany Page 14 of 131 TR - ECE - BA - DGB - 0060 - 05...

  • Page 15: Ssi - Schnittstelle (Optional)

    RS422-Sender stellen unter Last Ausgangspegel von  2V zwischen den beiden Ausgängen zur Verfügung, die Empfängerbausteine erkennen Pegel von ± 200mV noch als gültiges Signal.  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany 02/23/2017...

  • Page 16: Kabelspezifikation

    Normen und Richtlinien zu beachten! Insbesondere sind die EMV-Richtlinie sowie die Schirmungs- und Erdungsrichtlinien in den jeweils gültigen Fassungen zu beachten!  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany Page 16 of 131 TR - ECE - BA - DGB - 0060 - 05...

  • Page 17: Datenübertragung

    Takt+ High Daten+ High intern re-triggerbares Monoflop Abbildung 4: SSI-Übertragungsformat  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany 02/23/2017 TR - ECE - BA - DGB - 0060 - 05 Page 17 of 131...

  • Page 18: Schirmauflage

    6. Dichteinsatz / Kontakthülse (2) + (3) in Einschraubstutzen (5) bündig zusammen stecken. 7. Überwurfmutter (1) mit Einschraubstutzen (5) verschrauben.  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany Page 18 of 131 TR - ECE - BA - DGB - 0060 - 05...
  • Page 19 Einschraubstutzen vorgesehenen Längsnuten passen. 7. Überwurfmutter (1) mit Einschraubstutzen (4) verschrauben.  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany 02/23/2017 TR - ECE - BA - DGB - 0060 - 05 Page 19 of 131...

  • Page 20: Inbetriebnahme

    Projektierungsfehlern erreicht. Das Mess-System hat die PNO-Identnummer AAAB (Hex). Diese Nummer ist reserviert und bei der PNO hinterlegt.  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany Page 20 of 131 TR - ECE - BA - DGB - 0060 - 05...

  • Page 21: Anlauf Am Profibus

    Inputs zurückgeben WCFG = Wait Configuration DXCHG = Data Exchange Abbildung 6: DP-Slave Initialisierung  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany 02/23/2017 TR - ECE - BA - DGB - 0060 - 05...

  • Page 22: Bus-Statusanzeige

    Fehler, Bus im Zyklus Entsprechende Maßnahmen im Fehlerfall siehe Kapitel „Störungsbeseitigung und Diagnosemöglichkeiten“, Seite 57.  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany Page 22 of 131 TR - ECE - BA - DGB - 0060 - 05...

  • Page 23: Parametrierung Und Konfiguration

    0 = Konsistenz über ein Byte oder Wort Konsistenz: 1 = Konsistenz über das ganze Modul  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany 02/23/2017 TR - ECE - BA - DGB - 0060 - 05...

  • Page 24: Übersicht

    Endschalter - Endschalter Geschwindigkeits-Ausgabe - Geschwindigkeit aus Sicht des Bus-Masters  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany Page 24 of 131 TR - ECE - BA - DGB - 0060 - 05 02/23/2017...

  • Page 25: Pno Class 1 16-Bit

    Uhrzeiger- werte gegen den Uhr- sinn drehend zeigersinn drehend  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany 02/23/2017 TR - ECE - BA - DGB - 0060 - 05 Page 25 of 131...

  • Page 26: Pno Class 1 32-Bit

    Uhrzeiger- werte gegen den Uhr- sinn drehend zeigersinn drehend  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany Page 26 of 131 TR - ECE - BA - DGB - 0060 - 05...

  • Page 27: Pno Class 2 16-Bit

    5 – 4 3 – 0 Data Konsistenz Wort Format Eingangsdaten Längen-Code  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany 02/23/2017 TR - ECE - BA - DGB - 0060 - 05 Page 27 of 131...
  • Page 28 – 2 – 2 Data Default (dez.) 16777216 Messlänge in Schritten  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany Page 28 of 131 TR - ECE - BA - DGB - 0060 - 05 02/23/2017...

  • Page 29: Pno Class 2 32-Bit

    5 – 4 3 – 0 Data Konsistenz Wort Format Eingangsdaten Längen-Code  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany 02/23/2017 TR - ECE - BA - DGB - 0060 - 05 Page 29 of 131...
  • Page 30 – 2 – 2 Data Default (dez.) 16777216 Messlänge in Schritten  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany Page 30 of 131 TR - ECE - BA - DGB - 0060 - 05 02/23/2017...

  • Page 31: Tr-Mode Position

    5 – 4 3 – 0 Data Konsistenz Wort Format Eingangsdaten Längen-Code  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany 02/23/2017 TR - ECE - BA - DGB - 0060 - 05 Page 31 of 131...
  • Page 32 Uhrzeigersinn drehend zeigersinn drehend Kurze Diagnose Nein Diagnose Meldemodus ausgeschaltet eingeschaltet  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany Page 32 of 131 TR - ECE - BA - DGB - 0060 - 05 02/23/2017...
  • Page 33 7 – 0 – 2 – 2 Data Default (dez.) Umdrehungen Nenner  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany 02/23/2017 TR - ECE - BA - DGB - 0060 - 05 Page 33 of 131...
  • Page 34 – 2 – 2 – 2 Data Default (dez.) Preset 2  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany Page 34 of 131 TR - ECE - BA - DGB - 0060 - 05 02/23/2017...
  • Page 35 Byte 7 – 0 – 2 Data Default (dez.)  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany 02/23/2017 TR - ECE - BA - DGB - 0060 - 05 Page 35 of 131...

  • Page 36: Tr-Mode Position + Velocity (Geschwindigkeit)

    5 – 4 3 – 0 Data Konsistenz Wort Format Eingangsdaten Längen-Code  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany Page 36 of 131 TR - ECE - BA - DGB - 0060 - 05 02/23/2017...
  • Page 37 Uhrzeigersinn drehend zeigersinn drehend Kurze Diagnose Nein Diagnose Meldemodus ausgeschaltet eingeschaltet  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany 02/23/2017 TR - ECE - BA - DGB - 0060 - 05 Page 37 of 131...
  • Page 38 7 – 0 – 2 – 2 Data Default (dez.) Umdrehungen Nenner  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany Page 38 of 131 TR - ECE - BA - DGB - 0060 - 05 02/23/2017...
  • Page 39 – 2 – 2 – 2 Data Default (dez.) Preset 2  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany 02/23/2017 TR - ECE - BA - DGB - 0060 - 05 Page 39 of 131...
  • Page 40 Byte 7 – 0 – 2 Data Default (dez.)  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany Page 40 of 131 TR - ECE - BA - DGB - 0060 - 05 02/23/2017...

  • Page 41: Preset-Justage-Funktion

    Untergrenze programmierte Gesamtmesslänge in Schritten – 1, Obergrenze innerhalb von  33 554 432  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany 02/23/2017 TR - ECE - BA - DGB - 0060 - 05...

  • Page 42: Beschreibung Der Betriebsparameter

     Wertesprünge > 1 Umdrehung) einen "Diagnosealarm" (OB82 bei SIMATIC auslöst, siehe auch Kapitel "Alarme", Seite 61.  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany Page 42 of 131 TR - ECE - BA - DGB - 0060 - 05...

  • Page 43: Inbetriebnahmefunktion

    – 2 – 2 – 2 – 2 Data Steuerbits Preset-Justagewert  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany 02/23/2017 TR - ECE - BA - DGB - 0060 - 05 Page 43 of 131...
  • Page 44 Teach-In Start wird nicht unterstützt! keine Justage Justage Anforderung Justage ausführen  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany Page 44 of 131 TR - ECE - BA - DGB - 0060 - 05 02/23/2017...

  • Page 45: Kurze Diagnose

    Mit diesem Parameter kann die Anzahl der Diagnosebytes von 6+51 Bytes auf 6+10 Bytes begrenzt werden, damit das Mess-System auch an PROFIBUS-Mastern mit älteren Ausgabeständen betrieben werden kann.  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany 02/23/2017...

  • Page 46: Skalierungsfunktion

    Messlänge in Schritten = Schritte pro Umdrehung * Anzahl der Umdrehungen Zur Berechnung können die Parameter Schritte/Umdr. und Anzahl Umdrehungen vom Typenschild des Mess-Systems abgelesen werden.  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany Page 46 of 131...
  • Page 47 Richtung fahren, zwangsläufig zu Verschiebungen. Für derartige Anwendungen ist stets eine der TR-Konfigurationen "TR-Mode Position" bzw. "TR-Mode Position+Velocity" zu verwenden.  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany 02/23/2017 TR - ECE - BA - DGB - 0060 - 05...

  • Page 48: Skalierungsparameter Tr-Modes "Position" + "Velocity

    Messlänge in Schritten = Schritte pro Umdrehung * Anzahl der Umdrehungen Zur Berechnung können die Parameter Schritte/Umdr. und Anzahl Umdrehungen vom Typenschild des Mess-Systems abgelesen werden.  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany Page 48 of 131...

  • Page 49: Umdrehungen Zähler / Umdrehungen Nenner

    Mess-System bei einer geringfügigen Überschreitung des Verfahrweges keinen Istwertsprung (Nullübergang) erzeugt. Der Einfachheit halber kann auch der volle Umdrehungsbereich des Mess-Systems programmiert werden.  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany 02/23/2017 TR - ECE - BA - DGB - 0060 - 05...
  • Page 50 = 1348,073499 Schritte / Umdr. * 1 Umdrehung Nenner = 5521709 Schritte (abgerundet)  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany Page 50 of 131 TR - ECE - BA - DGB - 0060 - 05...

  • Page 51: Code Ssi-Schnittstelle

     33 554 432 Preset 1 = 0, Preset 2 = 1 Default  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany 02/23/2017 TR - ECE - BA - DGB - 0060 - 05...

  • Page 52: Unterer Endschalter / Oberer Endschalter

    Seite 36 Mit diesem Parameter kann die Angabe der Umdrehungsgeschwindigkeit in beliebigen Schritten zwischen 1/1 und 1/100 U/min skaliert werden.  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany Page 52 of 131 TR - ECE - BA - DGB - 0060 - 05...

  • Page 53: Konfigurationsbeispiel, Simatic  Manager V5.1

    Dateinamen und Einträge in den nachfolgenden Masken sind nur als Beispiele für die Vorgehensweise zu betrachten. Zur Aufnahme der GSD-Datei in den Katalog, muss diese zuerst installiert werden:  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany 02/23/2017...
  • Page 54 Seite 36 Der Eintrag Universalmodul wird irrtümlicherweise automatisch von manchen Systemen bereitgestellt, darf jedoch nicht verwendet werden!  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany Page 54 of 131 TR - ECE - BA - DGB - 0060 - 05...
  • Page 55 Netzeinstellungen vorgenommen werden (Klick mit rechter Maustaste auf das Mess- System-Symbol --> Objekteigenschaften):  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany 02/23/2017 TR - ECE - BA - DGB - 0060 - 05...
  • Page 56 Gewünschte Konfiguration aus dem Katalog auf den Steckplatz übertragen (Drag&Drop). Das Mess-System-Symbol muss aktiv sein. Parametrierung vornehmen mit Doppelklick auf die Steckplatznummer:  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany Page 56 of 131...

  • Page 57: Störungsbeseitigung Und Diagnosemöglichkeiten

    System läuft am Bus an. Mess-System betriebsbereit,  kein Fehler, Bus im Zyklus  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany 02/23/2017 TR - ECE - BA - DGB - 0060 - 05 Page 57 of 131...

  • Page 58: Verwendung Der Profibus Diagnose

    Byte 8 gerätespezifische weitere gerätespezifische Diagnose Erweiterungen Byte 241 (max)  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany Page 58 of 131 TR - ECE - BA - DGB - 0060 - 05 02/23/2017...

  • Page 59: Stationsstatus 1

    Überlauf bei erweiterter Bit 7 Ext_Diag_Overflow Diagnose Bit 6-0 Reserviert  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany 02/23/2017 TR - ECE - BA - DGB - 0060 - 05 Page 59 of 131...

  • Page 60: Masteradresse

    Stehen zusätzliche Diagnoseinformationen zur Verfügung, so trägt der Slave an dieser Stelle die Anzahl der Bytes ein, die außer der Normdiagnose noch folgen.  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany Page 60 of 131...

  • Page 61: Erweiterte Diagnose

    Bit 6 nicht benutzt Bit 7 nicht benutzt  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany 02/23/2017 TR - ECE - BA - DGB - 0060 - 05 Page 61 of 131...

  • Page 62: Betriebsstatus

    Für zusätzliche Alarme ist das Byte 17 reserviert, jedoch sind keine weiteren Alarme implementiert. Erweiterte Diagnose, Byte 17 Bedeutung Bit 0-7 reserviert  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany Page 62 of 131 TR - ECE - BA - DGB - 0060 - 05 02/23/2017...

  • Page 63: Unterstützte Alarme

    Erweiterte Diagnose, Byte 24-25 Byte 24 Revisions-Nummer Byte 25 Revisions-Index  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany 02/23/2017 TR - ECE - BA - DGB - 0060 - 05 Page 63 of 131...

  • Page 64: Software Version

    Erweiterte Diagnose, Byte 48-57 Die Diagnosebytes zeigen Seriennummer des Encoders an. Wird diese Funktion nicht unterstützt, werden Sterne angezeigt (Hex-Code 0x2A) **********.  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany Page 64 of 131...

  • Page 65: Herstellerspezifische Diagnosen

    Störung, wenn die vertauscht Bushaube auf das Mess-System gesteckt wird  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany 02/23/2017 TR - ECE - BA - DGB - 0060 - 05 Page 65 of 131...
  • Page 66 Störungsbeseitigung und Diagnosemöglichkeiten  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany Page 66 of 131 TR - ECE - BA - DGB - 0060 - 05 02/23/2017...
