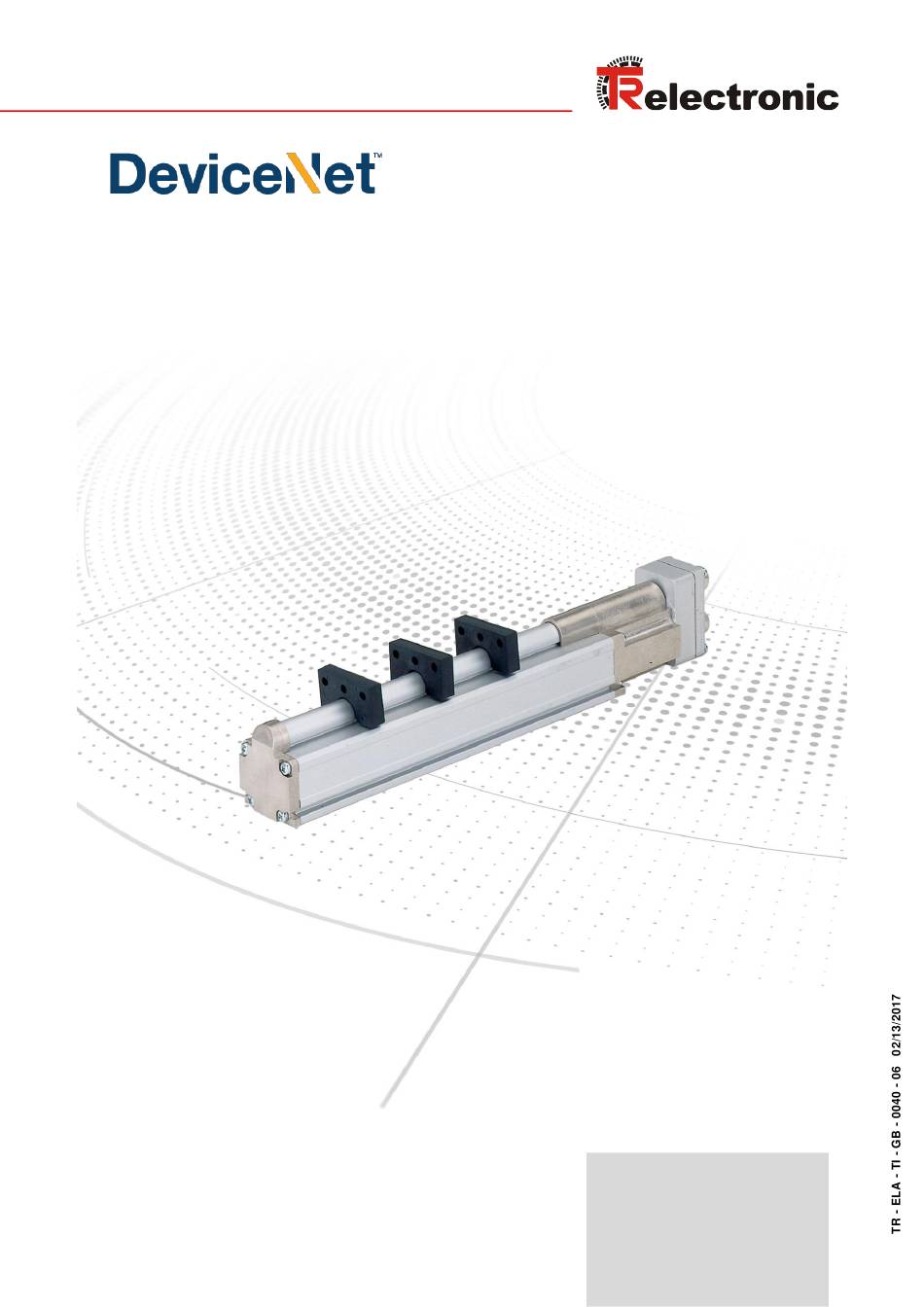

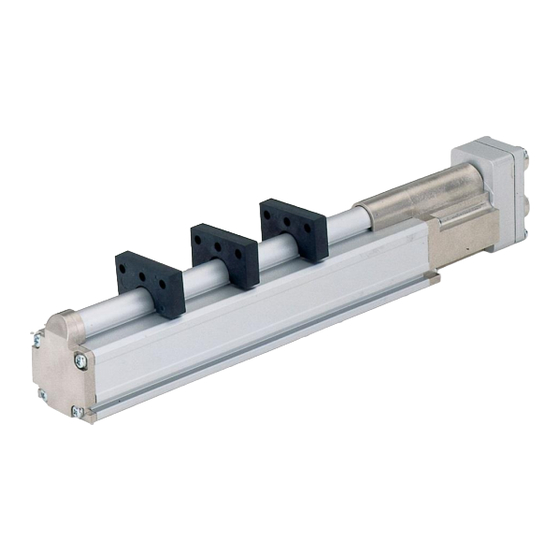

- Page 1 +Multi sensor Absolute linear encoder LP-38 _Additional safety instructions _Installation _Commissioning _Parameterization _Cause of faults and remedies User Manual 5141...
- Page 2 > indicates keys on your computer keyboard (such as <RETURN>). Brand names DeviceNet is a trademark of ODVA, Inc. TR-Electronic GmbH 2003, All Rights Reserved Printed in the Federal Republic of Germany Page 2 of 22 TR - ELA - TI - GB - 0040 - 06...
-
Page 3: Table Of Contents
8 Causes of faults and remedies ...................... 22 Pin assignment downloads LP-38 ............... www.tr-electronic.com/f/TR-ELA-TI-GB-0009 TR-Electronic GmbH 2003, All Rights Reserved Printed in the Federal Republic of Germany 02/13/2017 TR - ELA - TI - GB - 0040 - 06... -
Page 4: Revision Index
DeviceNet™ logo and trademark updated 03/14/16 Technical data removed 02/13/17 TR-Electronic GmbH 2003, All Rights Reserved Printed in the Federal Republic of Germany Page 4 of 22 TR - ELA - TI - GB - 0040 - 06 02/13/2017... -
Page 5: General Information
The following documentation therefore also applies: see chapter “Other applicable documents” in the Assembly Instructions www.tr-electronic.com/f/TR-ELA-BA-DGB-0004 TR-Electronic GmbH 2003, All Rights Reserved Printed in the Federal Republic of Germany 02/13/2017 TR - ELA - TI - GB - 0040 - 06... -
Page 6: Abbreviations Used / Terminology
Open DeviceNet Vendor Association ODVA™ (CAN User Organization, especially for DeviceNet) TR-Electronic GmbH 2003, All Rights Reserved Printed in the Federal Republic of Germany Page 6 of 22 TR - ELA - TI - GB - 0040 - 06... -
Page 7: Additional Safety Instructions
observing the assembly instructions. The "Basic safety instructions" in particular must be read and understood prior to commencing work. TR-Electronic GmbH 2003, All Rights Reserved Printed in the Federal Republic of Germany 02/13/2017 TR - ELA - TI - GB - 0040 - 06... -
Page 8: Organizational Measures
This particularly applies for personnel who are only deployed occasionally, e.g. at the parameterization of the measurement system. TR-Electronic GmbH 2003, All Rights Reserved Printed in the Federal Republic of Germany Page 8 of 22 TR - ELA - TI - GB - 0040 - 06... -
Page 9: Multi-Sensor - Technique
The Respond Message contains the position of the addressed magnet. Principle TR-Electronic GmbH 2003, All Rights Reserved Printed in the Federal Republic of Germany 02/13/2017 TR - ELA - TI - GB - 0040 - 06... -
Page 10: Devicenet™ Information
This allows both master/slave and multi-master systems to be realized. Data are known as objects and are logged in the object directory of each device. TR-Electronic GmbH 2003, All Rights Reserved Printed in the Federal Republic of Germany... - Page 11 Vendor ID The vendor IDs (manufacturer’s identifiers) are assigned and administrated by the ODVA™. The TR-Electronic vendor ID for DeviceNet™ is "134" (dec). You can obtain further information on DeviceNet from the Open DeviceNet Vendor Association (ODVA) or the following Internet addresses: http://www.odva.org...
-
Page 12: Installation / Preparation For Start-Up
In particular, the applicable EMC directive and the shielding and grounding guidelines must be observed! TR-Electronic GmbH 2003, All Rights Reserved Printed in the Federal Republic of Germany Page 12 of 22... -
Page 13: Connection
Following baud rates are possible: ● 125 kbit/s ● 250 kbit/s ● 500 kbit/s TR-Electronic GmbH 2003, All Rights Reserved Printed in the Federal Republic of Germany 02/13/2017 TR - ELA - TI - GB - 0040 - 06 Page 13 of 22... -
Page 14: Shield Cover
6. Push seal / contact bush (2) + (3) flush into the screw socket (5). 7. Screw the nut (1) to the screw socket (5). TR-Electronic GmbH 2003, All Rights Reserved Printed in the Federal Republic of Germany Page 14 of 22... - Page 15 6. Insert the clamping ring (2) in the screw socket (4) such that the torque supports fit in the slots in the screw socket (4). 7. Screw the nut (1) to the screw socket (4). TR-Electronic GmbH 2003, All Rights Reserved Printed in the Federal Republic of Germany 02/13/2017...
-
Page 16: Commissioning
- Measuring system has not detected any magnet - Turn off system --> turn on system - Replace measuring system device TR-Electronic GmbH 2003, All Rights Reserved Printed in the Federal Republic of Germany Page 16 of 22 TR - ELA - TI - GB - 0040 - 06... -
Page 17: Eds File
Predefined Master/Slave Connection Set. Duplicate MAC ID Check Message After switch-on the measuring system it reports Duplicate MAC ID Messages. TR-Electronic GmbH 2003, All Rights Reserved Printed in the Federal Republic of Germany 02/13/2017... -
Page 18: Classes
Magnet number = 15 The number of used input bytes corresponds to the number of magnets multiplied with four. TR-Electronic GmbH 2003, All Rights Reserved Printed in the Federal Republic of Germany Page 18 of 22 TR - ELA - TI - GB - 0040 - 06... -
Page 19: Parameterization And Configuration
UDINT The ranges of values of the individual parameters are defined in chapter "Parameters / Range of values" starting from page 20. TR-Electronic GmbH 2003, All Rights Reserved Printed in the Federal Republic of Germany 02/13/2017 TR - ELA - TI - GB - 0040 - 06... -
Page 20: Parameters / Range Of Values
0.01 mm. Measuring length Measuring length in steps = Resolution in mm TR-Electronic GmbH 2003, All Rights Reserved Printed in the Federal Republic of Germany Page 20 of 22 TR - ELA - TI - GB - 0040 - 06... -
Page 21: Adjust Absolute Value
Each entered magnet needs four input bytes. lower limit upper limit default TR-Electronic GmbH 2003, All Rights Reserved Printed in the Federal Republic of Germany 02/13/2017 TR - ELA - TI - GB - 0040 - 06 Page 21 of 22... -
Page 22: Causes Of Faults And Remedies
DeviceNet-specification. Scanning defect. Replace measuring system. TR-Electronic GmbH 2003, All Rights Reserved Printed in the Federal Republic of Germany Page 22 of 22 TR - ELA - TI - GB - 0040 - 06 02/13/2017...
