Wiegand Setup; Wiegand Input - ZKTeco Green Label ProBio User Manual

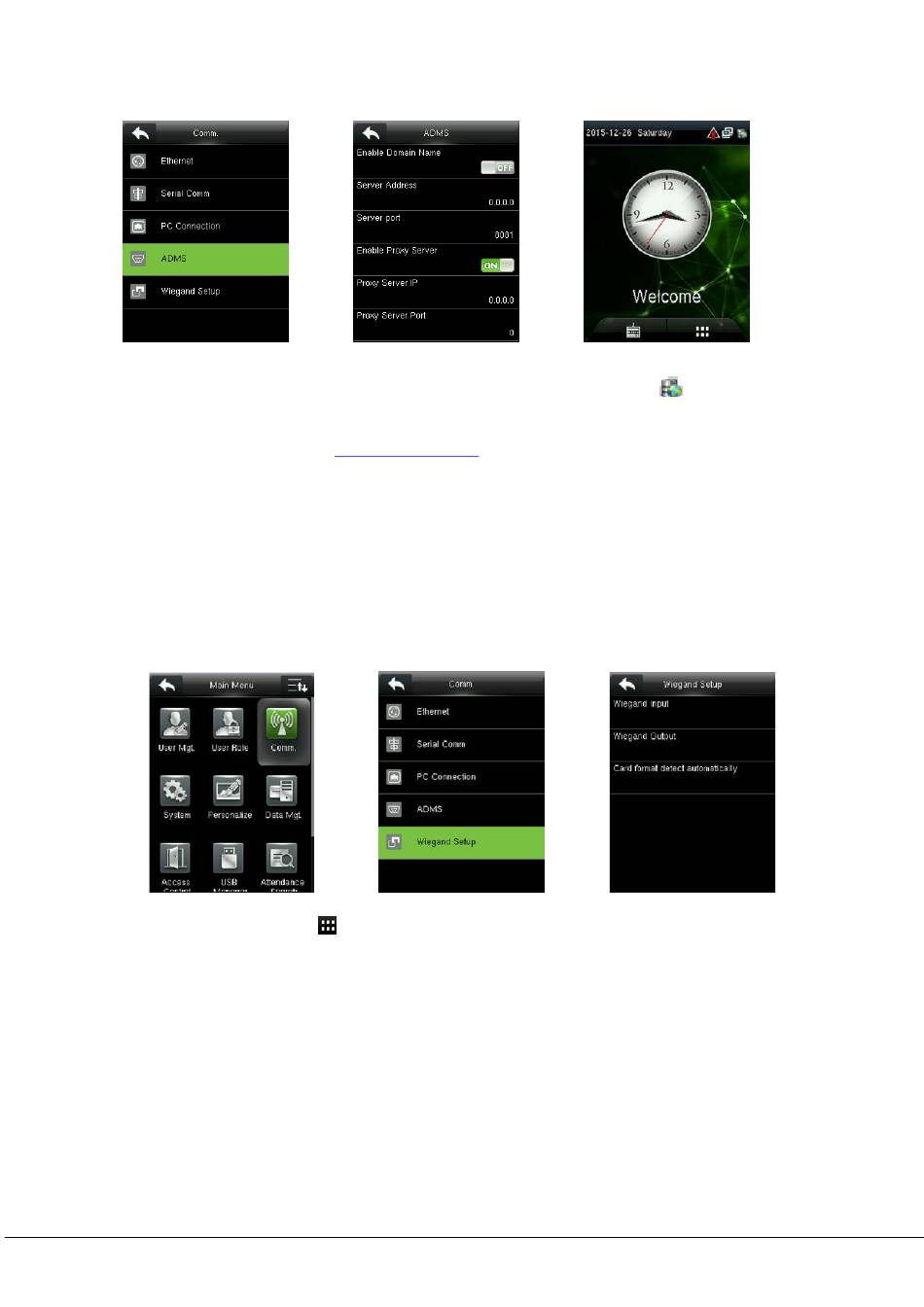

In the initial interface, press [M/OK] > Comm. > ADMS to enter the ADMS server setting interface.
When the Webserver is connected successfully, the main interface will display the
Enable Domain Name: When this function is turned on, the domain name mode http://... will be used,
such as http://www.XXX.com. XXX denotes the domain name when this mode
is on; when this mode is off, enter the IP address format in XXX.
Server Address: IP address of the ADMS server.
Server Port: Port used by the ADMS server.
Enable Proxy Server: Method of enabling proxy. To enable proxy, please set the IP address and port
number of the proxy server. Entering proxy IP and server address will be the same

6.5 Wiegand Setup

In the initial interface, press
interface.

6.5.1 Wiegand Input

Wiegand Input connector supports card reader, or connects the device as a master device to another
device (slave device), forming a master / slave system.
> Comm. > Wiegand Setup to enter the Wiegand Setup setting
logo.
ProBio & ProFAC User Manual 19
