Pc Connection - ZKTeco Green Label ProBio User Manual

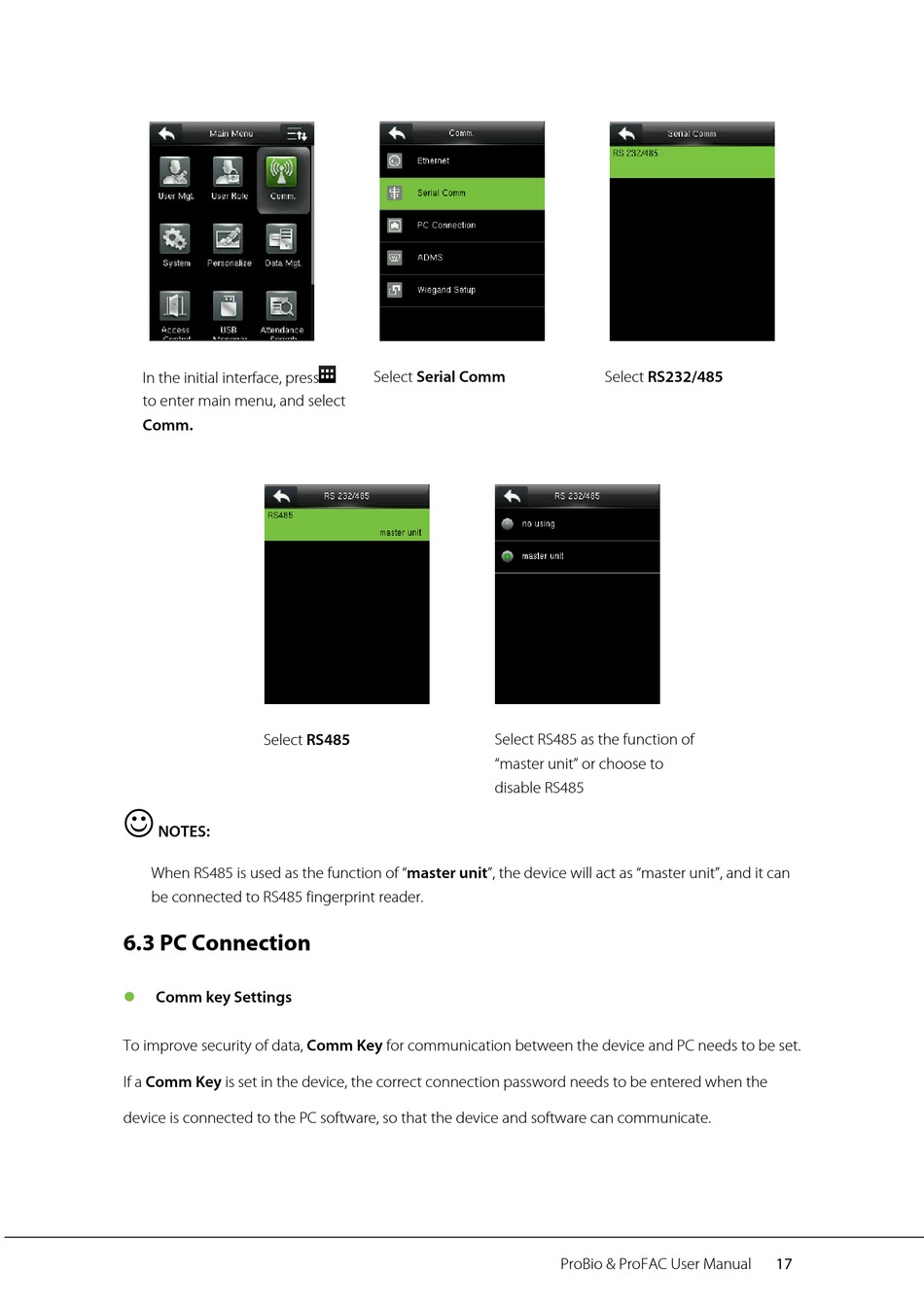

In the initial interface, press
to enter main menu, and select
Comm.
Select RS485

NOTES:
When RS485 is used as the function of "master unit", the device will act as "master unit", and it can
be connected to RS485 fingerprint reader.

6.3 PC Connection

Comm key Settings

To improve security of data, Comm Key for communication between the device and PC needs to be set.
If a Comm Key is set in the device, the correct connection password needs to be entered when the
device is connected to the PC software, so that the device and software can communicate.
Select Serial Comm
Select RS485 as the function of
"master unit" or choose to
disable RS485
Select RS232/485
ProBio & ProFAC User Manual 17
