Safety Precautions Before installation, please read the following precautions carefully to prevent the risks of danger to the users of this product or those nearby and damaging the device. Do not expose to direct sunlight, water, dust and soot. Do not place any magnetic objects near the product. Magnetic objects such as magnets, CRT, TV, monitors or speakers may damage the device.

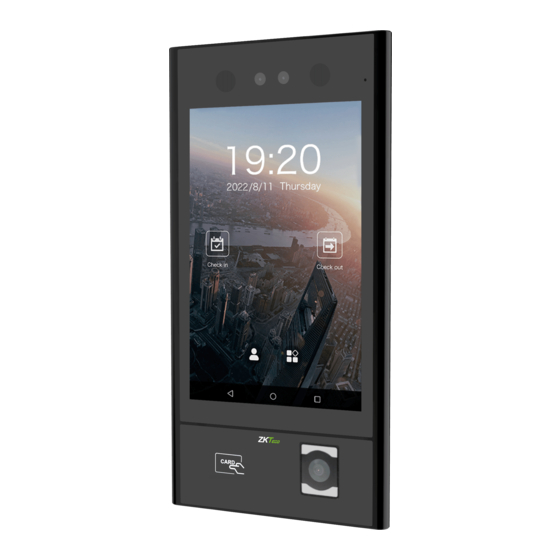

Device Overview Near-infrared Flash Microphone Near-infrared Camera Visible Light Camera 8" HD Capacitive Touch Screen Built-in ID Card Reader Fingerprint Scanner 1.142" (29.0mm) Terminal Block Back Plate Micro USB USB Port Speaker 5.551" (141.0mm)
Terminal Block Auxiliary Input AUXIN Sensor Exit Button COM1 Lock ALARM- Alarm ALARM+ 12V OUT Power Out 485B RS485 485A 232TXD RS232 232RXD Wiegand Out IWD0 Wiegand In IWD1 BELL+ Bell BELL- Power In Ethernet...
Product Installation The recommended distance For users whose height is between 55.118" to 70.866" (1.4m to 1.8m), the recommended height of the equipment is 61.024" (1.55m), and the distance from the personnel to the equipment is 19.685" (0.5m). Users not in the range can adjust the position by moving back and forth according to the actual situation.
Page 6
Power & Ethernet Connection Power Connection AC Adapter Recommended power supply Recommended AC adapter 12V 3A To share the power with other devices, use an AC adapter with higher current ratings. Ethernet Connection Network Cable Router...
Page 7
Access Control & Reader Connection Access Control Connection 12V OUT 485B 485A 232TXD 232RXD Access Controller +12V IWD0 IWD1 Do not use Reader Connection +12V 12V OUT 485- 485+ 485B RS485 Reader 485A 232TXD +12V 232RXD RS232 Reader IWD0 +12V IWD1 Wiegand Reader Do not use...
Lock Relay Connection The system supports both Normally Opened Lock and Normally Closed Lock. The NO Lock (Normally Opened when powered) is connected with 'NO' and 'COM' terminals, and the NC Lock (Normally Closed when powered) is connected with 'NC' and 'COM' terminals. The power can be shared with the lock or can be used separately for the lock, as shown in the example with NC Lock below: Device not sharing power with the lock is shown below: AUXIN...
Connecting Other Devices Bell Connection BELL+ Door Bell BELL- +12V DC Bell Power Smoke Detector, Door Sensor, Exit Button & Alarm Connection Detector Power AUXIN +12V DC Smoke Detector Door Sensor COM1 Exit Button ALARM- Alarm ALARM+ +12V DC Alarm Power Do not use...
Menu Functions Enroll New User When there is no Super Administrator set in the device, click to enter the menu. Add a new user and set the User Role to Super Admin, then the system will request for Administrator’ s verification before entering the menu.
Page 12
Menu Functions Access Settings Click > Access Control > Access Control Options to enter the setting interface. Network Settings Click > System Settings > Network settings to set the network parameters. If the TCP/IP will be displayed in the top right corner communication of the device is successful, the icon of the standby interface.
Page 13
Menu Functions Attendance Search View records in the device: Click > Attendance Search > Access Logs (records of all users will be displayed) > select Time Range > press OK, the corresponding attendance logs will be displayed. View records on computer: Click >...
Menu Functions & Troubleshooting Date and Time Settings Click > System Settings > Date and Time, to enter Date and Time setting interface. Troubleshooting 1. Fingerprint can t be ’ detected or it takes too long. Ø Check whether finger or fingerprint sensor is stained with sweat, water, or dust. Ø...
