ZKTeco G2 Quick Start Manual

QUICK START GUIDE
Applicable Model: G2

Safety Precautions

Before installation, please read the following safety precautions for user
safety and to prevent device damage.
Do not install the device in a place subject to direct sun light,
humidity, dust or soot.
Do not place magnet near the product. Magnetic objects such as
magnet, CRT, T V, monitor or speaker may damage the device.
Do not place the device next to heating equipment.
Do not to let liquid like water, drinks or chemicals leak inside
the device.
Do not let children touch the device without supervision.
Do not drop or damage the device.
Do not disassemble, repair or alter the device.
Do not use the device for any purpose other than those specified.
Clean the device often to remove dust on it. While cleaning, do not splash
water on the device but wipe it out with smooth cloth or towel.
Contact your supplier in case of any problem!
1
Bell & Wiegand Connection
External bell connection
DESCRIPTION WIRE
+12V GND
BELL+ Purple
BELL- Gray
BEEP Blue
GLED Green
RLED White
-
IWD0 Black +
IWD1 Red
Bell
Do not use
Wiegand In connection
IWD1 IWD0
DESCRIPTION WIRE
BELL+ Purple
BELL-
Gray
BEEP Blue
GLED Green
Wiegand reader
RLED White
IWD0 Black
IWD1 Red
Do not use
5

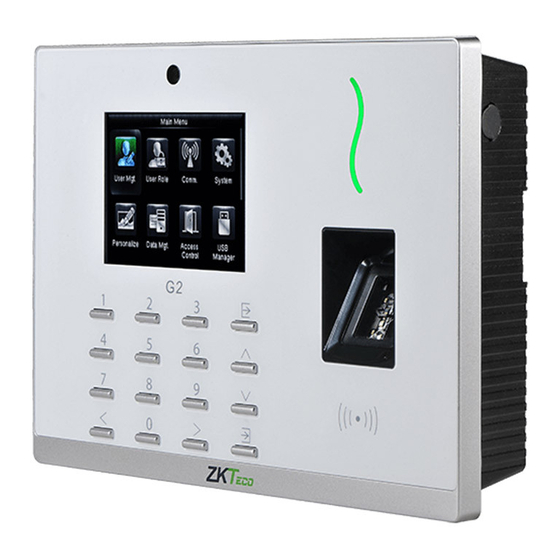

Device Overview

Front
Camera
LED light
TFT screen
Fingerprint sensor
G2
1 2 3
4 5 6
7 8 9 Card read area
0
Function IN OUT
keys key key
Side
3G/Wi-Fi
Reset switch
USB memory slot
Speaker
Star-shaped screw hole
2

Lock Relay Connection

The system supports Normally Open Lock and Normally Closed Lock.For example the NO LOCK
(normally)opened
Device not sharing power with the lock
+12V DC COM1
GND
DESCRIPTION WIRE
Brown
NC2
Yellow
COM2
Orange
NO2
Green
NC1
Purple
COM1
Blue
NO1
Gray
BUT
Black NC1
GND
White
SEN GND
Do not use
! Do not reverse the polarity.
+
-
FR107 Diode
Normally Closed Lock
6
Product PIN Diagram
Back
Connection interface
SIM card slot
Tamper switch
Power port
Ethernet port
485B BELL+ NC2
RS485 Bell
Alarm
485A BELL- COM2
GND BEEP NO2
TXD RS232 GLED NC1 Normal Close
RXD RLED COM1 COMM
GND IWD0 NO1 Normal Open
Wiegand In
WD1 Wiegand Out IWD1 BUT
Button
WD0 GND
Sensor
FGND Ground SEN
/
Reserved
RJ45-6
RJ45-3
Ethernet
GND
RJ45-2 Power In
+12V
RJ45-1
3
Lock Relay Connection
Device sharing power with the lock
+12V DC
COM1
DESCRIPTION WIRE
Brown
NC2
Yellow
COM2
Orange
NO2
Green
NC1
Purple
COM1
Blue
NO1
Gray
BUT
Black
GND
White
SEN
Do not use GND
NC1
! Do not reverse the polarity.
+
-
FR107 Diode
Normally Closed Lock
7
Product Dimension & Installation
Product dimension
5.906in
(150.0mm)
6.024in
(153.0mm) 4.614in
G2 2.677in
(117.2mm)
1 2 3
(68.0mm)
4 5 6
7 8 9
0
5.039in
(128.0mm)
8.110in
1.692in
(206.0mm)
(42.9mm)
Mounting the device on wall
1 2
Baseline
1.15m
3 4
Paste the mounting template sticker onto the wall, and drill holes according
to the mounting paper.
Fix the back plate onto the wall using wall mounting screws.
Insert the device into back plate.
Use security screw to fasten the device to back plate.
4

Ethernet Connection

LAN connection
Network Cable Adaptor
Ethernet Cable
DESCRIPTION WIRE
ZKTime Web
RJ45-6 Yellow
RJ45-3 Green
RJ45-2 Red
RJ45-1 Black
Another way for ethernet connection
ZKTime Web
Note: The device can be connected to PC directly by ethernet cable.
8
