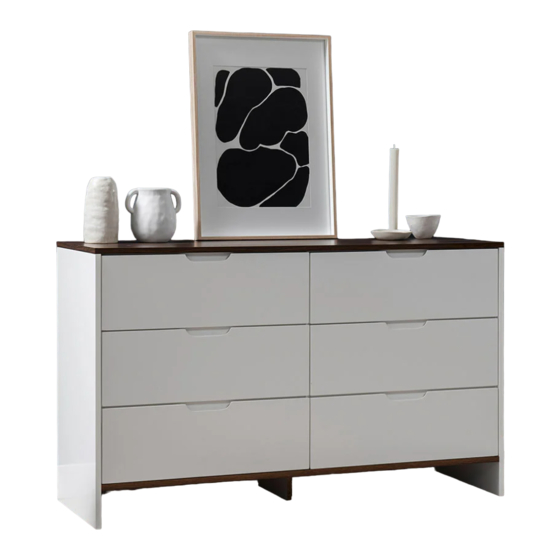

Dahlia Six Drawer
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
B
A
dowel
screw
x21
x37
G
H
slide
slide
rail x6
rail x6
WARNING:
Any furniture that is not anchored to a wall has the potential to tip over in certain
circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is anchored to a wall. We supply a free safety wall anchor
with all furniture sold and we recommend these are used to prevent your product tipping. The fixing device
provided should fit most wall types, but please note that different wall materials may require different fixing
devices from those supplied.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
C
D
locking
small
bolt
nut x60
x60
screw x60
I
J
slide
wedge
plastic
rail x6
x8
glide x6

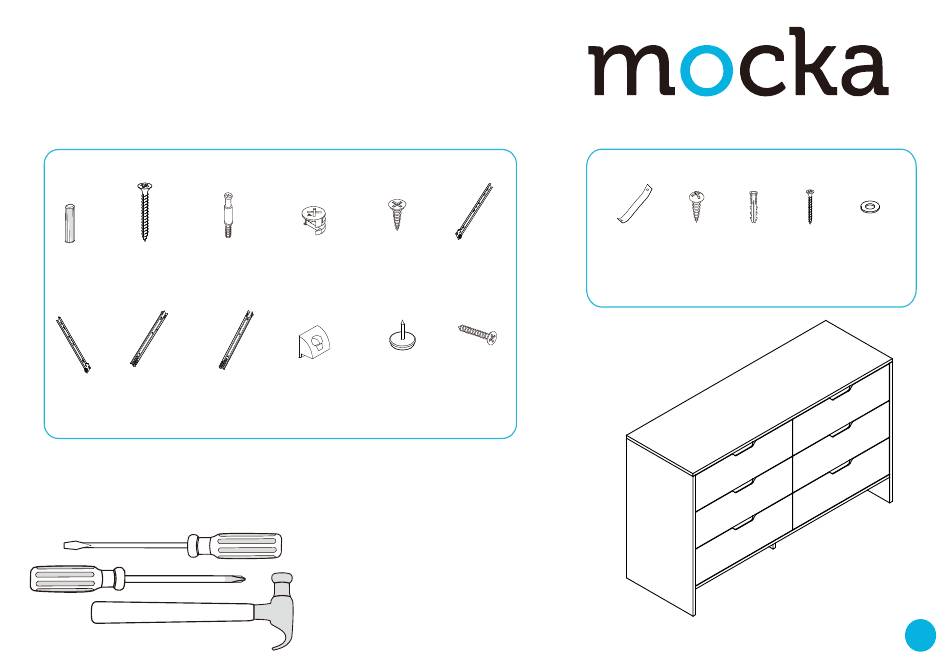

Hardware Supplied
Phillips & Flathead screwdrivers
and hammer required
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
E
F
slide
rail x6
K
L
screw
x8
V
W
X
safety
screw
wall
x2
strap x2
anchor
x2
Wall Strap
Y
Z
wall
washer
screw
x4
x2
1
Advertisement
Related Manuals for Mocka Dahlia Six Drawer
Summary of Contents for Mocka Dahlia Six Drawer
- Page 1 Phillips & Flathead screwdrivers and hammer required For quicker assembly, we recommend the use of a power drill on a low-speed setting. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 2 Attach 3x slide rails (G) to panel [3] and secure with 9x small screws (E). Tighten with a screwdriver. Attach 3x slide rails (F) to panel [2] and secure with 9x screws (E). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 3 Insert 18x bolts (C) into panels [2] and [3] as shown. Attach 3x slide rails (F) and 3x slide rails (G) to panel [4] as shown, secure Tighten with a screwdriver. with 18x small screws (E). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 4 Insert 6x bolts (C) into panel [4]. Tighten with a screwdriver. Attach panels [5] and [6] to panel [4] with 6x dowels (A) and secure with 6x locking nuts (D). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 5 Attach panels [8] and [9] to panel [4] with 2x dowels (A) and secure Attach panel [7] to panel [4] with 1x dowel (A) and secure with 1x screw (B). Tighten with a screwdriver. with 2x screws (B). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 6 Slide panel [10] down along the grooves between the panels [8] and [9] as shown. Attach panel [3] to panels [5], [6], [7], [8] and [9] with 3x dowels (A) and secure with 9x locking nuts (D). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 7 9x locking nuts (D). Tighten with a screwdriver. [3] as shown. Attach 6x plastic glides (K) to the panels [2] and [3] using a hammer as shown . mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 8 Insert 10x bolts (C) to panels [16] and [17]. Tighten with a screwdriver. nuts (D). Tighten with a screwdriver.Attach panel [1] to panels [5] and secure with 4x screws (B). Tighten with a screwdriver mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 9 Attach panels [11], [12] and [13] to front panels [16] and [17] Slide panels [14] down along the grooves between panels [11] using 5x locking nuts (D). Tighten with a screwdriver. and [12]. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 10 Attach slide rails (H) and slide rails (I) to the underside of the side panels Tighten with a screwdriver. as shown. Secure with 8x screws (E) and tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 11 8x screws (L). Tighten with a screwdriver. Attach 2x safety straps (V) to the top of the back side of the unit as shown using 2x washers (Z) and 2x screws (W). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 12 (V). Fasten to the wall using 2x washers (Z) , 2x wall anchors (X) and 2x wall screws (Y). Ensure unit is balanced and steady before use. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
