Maya Six Drawer
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
C
D
E
A
B
screw
bolt
locking
dowel
long
screw
x20
x34
nut
x16
x6
x34
J
K
L
CL
CR
DL
DR
runner
runner
runners
runners
tracks
tracks
x6
x6
x6
x6

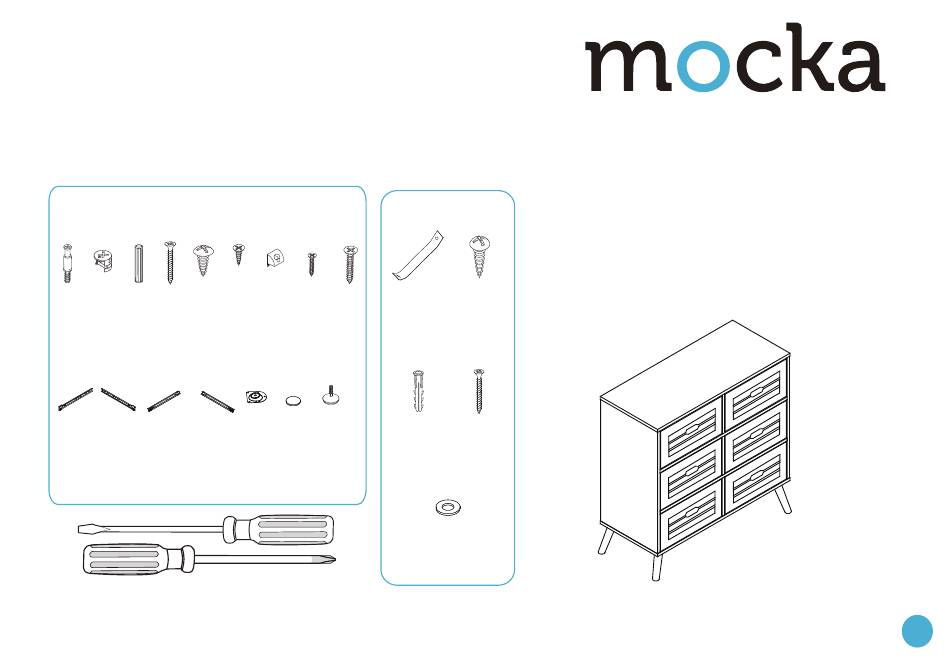

Hardware Supplied
Phillips & Flathead screwdrivers required
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
mocka.co.nz | mocka.com.au
| PO BOX 6171, Maroochydore, QLD, 4558
F
G
I
H
small
wedge
screw
screw
screw
x8
x8
x24
x60
M
N
O
P
bracket
felt
adjuster
x4
pad
x1
x4
WARNING:
over in certain circumstances, i.e. if a child attempts to climb up on the furniture
W
V
or in the event of an earthquake. Accordingly, we recommend that all furniture
is anchored to a wall. We supply a free safety wall anchor with all furniture sold
and we recommend these are used to prevent your product tipping. The fixing
device provided should fit most wall types, but please note that different wall
materials may require different fixing devices from those supplied.
safety
screw
x1
strap x1
X
Y
wall
wall
anchor
screw
x1
x1
Z
washer
x2
Wall Mount
*We recommend using a Flathead screwdriver to tighten all locking nuts 100% before first use.
Please clear any loose wood from the locking nut holes before inserting the nut to ensure it locks 100%.
Any furniture that is not anchored to a wall has the potential to tip
1
Advertisement
Related Manuals for Mocka Maya Six Drawer
Summary of Contents for Mocka Maya Six Drawer
- Page 1 Maya Six Drawer Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. WARNING: Any furniture that is not anchored to a wall has the potential to tip over in certain circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
- Page 2 Maya Six Drawer Assembly Instructions Insert 6x bolts (A) and 6x dowels (C) into panel [1]. Tighten with Attach 3x CL runner track (J) to panel [2] and secure with 9x small a screwdriver. screws (F). Attach 3x CR runner track (K) to panel [3] and secure with 9x small screws (F).
- Page 3 Maya Six Drawer Assembly Instructions Attach panels [2] and [3] to 2x panels [6] and secure with 4x locking nuts Attach 3x CL runner tracks (J) to panels [5] , and secure with 9x (B) and tighten with a screwdriver.
- Page 4 Maya Six Drawer Assembly Instructions Attach the unit to panel [1] secure with 6x locking nuts (B). Attach panel [5] to panels [6] as shown. Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 5 Maya Six Drawer Assembly Instructions Slide panels [7] between the grooves of panels [1], [2], [3] and [5] to Attach panel [4] as shown using 6x dowels (C) and 6x long form the back of the unit, as shown. screws (D) and tighten with a screwdriver.
- Page 6 Maya Six Drawer Jolt Wardrobe Assembly Instructions Attach 4x brackets (N) to panel [4] and secure with 20x Turn 4 x legs [8] into brackets (N) until firm. Apply 4 x felt pads (O) screws (E), and tighten with a screwdriver.
- Page 7 Maya Six Drawer Jolt Wardrobe Assembly Instructions Drawers x6 Drawers x6 Insert 4x bolt (A) into panel [9]. Tighten with a screwdriver. Attach panels [10] and [11] to panel [9] with 4x locking nuts (B). Tighten with a screwdriver. mocka.co.nz | mocka.com.au mocka.co.nz | mocka.com.au...
- Page 8 Maya Six Drawer Jolt Wardrobe Assembly Instructions Drawers x6 Drawers x6 Slide panel [12] along the grooves between the side panels [10] and Attach panels [13], [10] and [11] with 4x screws (I). Tighten with a [11] to form the base of the drawer.
- Page 9 Maya Six Drawer Jolt Wardrobe Assembly Instructions Drawers x6 Attach DL runner (L) to panel [10] and DR runner (M) to panel [11] with Insert the completed drawers into the main unit as shown, ensuring 4x small screws (F). Tighten with a screwdriver. Complete the other they slide easily along the rails.
- Page 10 Maya Six Drawer Jolt Wardrobe Assembly Instructions Wall Strap Attach 8x wedges (G) to the corners of the 2x panels [7] as Attach 1x safety strap (V) and 1x washer (Z) to top panel and secure shown, and secure with 8x small screws (H). Tighten with a with 1x screw (W).
- Page 11 Maya Six Drawer Jolt Wardrobe Assembly Instructions Once assembled lift furniture into place, do not drag. Use a drill to create a small hole lining up with the top of the safety strap (V). Fasten to the wall using 1x washer (Z), 1x wall plug (X) and 1x screw (Y). Ensure unit is balanced and steady before use.
