Dakota Nine Cube Shelf
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
bolt
screw
x24
x24
D
E
bolt
screw
x8
x6

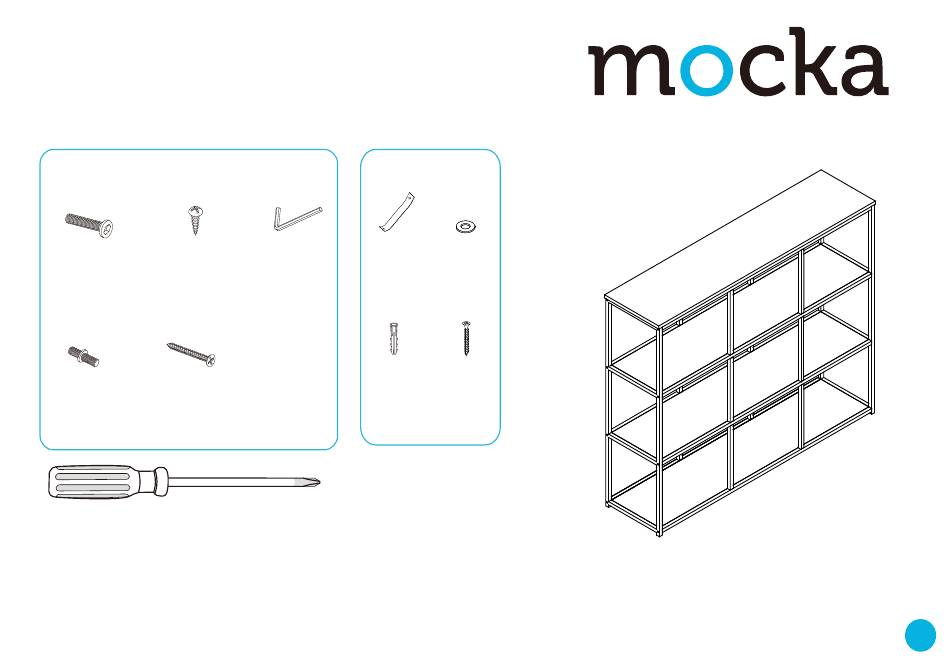

Hardware Supplied
Phillips
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
WARNING:
Any furniture that is not anchored to a wall has the potential to tip over in certain
circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is anchored to a wall. We supply a free safety wall anchor
with all furniture sold and we recommend these are used to prevent your product tipping. The fixing device
provided should fit most wall types, but please note that different wall materials may require different fixing
devices from those supplied.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
V
C
safety
washer
Allen Key
strap x1
x1
X
wall
anchor
x1
Wall Strap
W
x2
Y
wall
screw
x1
Maximum weight limit per shelf is 10kg
Indoor Use Only
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Dakota Nine Cube Shelf and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mocka Dakota Nine Cube Shelf

Summary of Contents for Mocka Dakota Nine Cube Shelf

  • Page 1 The fixing device provided should fit most wall types, but please note that different wall materials may require different fixing devices from those supplied. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...

  • Page 2: Panel Layout

    Dakota Nine Cube Shelf Assembly Instructions Panel Layout mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
  • Page 3 Dakota Nine Cube Shelf Assembly Instructions long short Attach 1x bolts (D) to panel [5] as shown. Attach panels [6] to panel [2] with 8x screws (B). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
  • Page 4 Dakota Nine Cube Shelf Assembly Instructions Note:Use panel [5] with bolt (D) installed. Attach panels [5] together to panel [2] as shown. Attach panels [5] together to panel [2] as shown. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
  • Page 5 Attach panel [2] to panels [5] with 4x bolts (A) as shown. Attach panels [4] to panels [5] with 4x bolts (A). Tighten Tighten with an Allen Key (C). with an Allen Key (C). mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
  • Page 6 Attach panel [3] to panels [2] and [4] with 8x bolts (A). Tighten Attach panel [3] to panels [2] and [4] with 8x bolts (A). Tighten with an Allen Key (C). with an Allen Key (C). mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
  • Page 7 (V). Fasten to the wall using 1x washer (W) , 1x wall anchor (X) and 1x wall screw (Y). Ensure the unit is balanced and steady before use. You’re done, enjoy! mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
