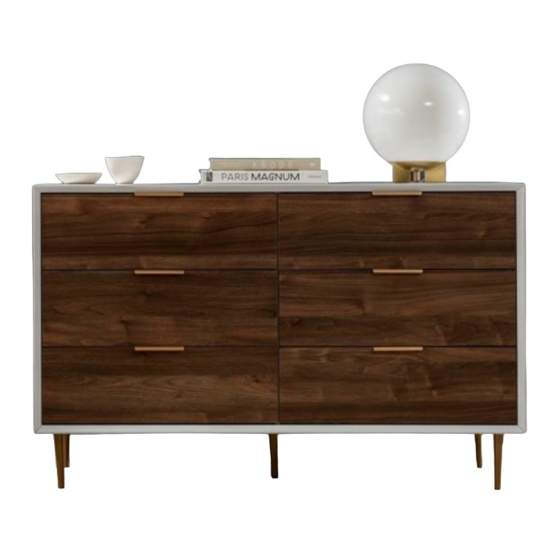

Eliza Six Drawer
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
C
dowel
long
bolt
x12
screw
x34
x8
K
I
J
slide
wedge
screw
rail x6
x8
x8
WARNING:
Any furniture that is not anchored to a wall has the potential to tip over in certain
circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is anchored to a wall. We supply a free safety wall anchor
with all furniture sold and we recommend these are used to prevent your product tipping. The fixing device
provided should fit most wall types, but please note that different wall materials may require different fixing
devices from those supplied.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
D
E
F
locking
screw
slide
x72
rail x6
nut x34
L
M
N
bolt
screw
Allen
x20
x24
key x1
Hardware Supplied
Phillips & Flathead screwdrivers
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
*We recommend using a Flathead screwdriver to tighten all locking nuts 100% before first use.
Please clear any loose wood from the locking nut holes before inserting the nut to ensure it locks 100%.
G
H
slide
slide
rail x6
rail x6
O
P
handle
height
x6
adjuster
x1
V
W
X
safety
screw
wall
x2
strap x2
anchor
x2
Wall Strap
Y
Z
wall
washer
screw
x4
x2
1
Advertisement
Related Manuals for Mocka Eliza Six Drawer
Summary of Contents for Mocka Eliza Six Drawer
- Page 1 *We recommend using a Flathead screwdriver to tighten all locking nuts 100% before first use. Please clear any loose wood from the locking nut holes before inserting the nut to ensure it locks 100%. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 2 18x screws (E). Insert 4x bolts (C) into panels [3] and secure with 18x screws (E). Tighten with a screwdriver. and [4]. Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 3 Attach panel [6] to the panels [3] and [4] secure with 4x locking Attach panel [5] to panel [6] secure with 2x long screws (B). nuts (D). Tighten with a screwdriver. Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 4 Eliza Six Drawer Assembly Instructions Insert 6x bolts (C) into panel [1]. Tighten with a screwdriver. Slide panel [7] down along the grooves between the panels [3] and [4]. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 5 Slide panel [7] down along the grooves between the panels [3] and [4]. Attach panel [1] to the panels [3], [4] and [5] with 6x dowels (A) and secure with 6x locking nuts (D). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 6 Attach legs [8] and [15] to panel [2] and secure with 20x bolts (L). secure with 6x long screws (B). Tighten with a screwdriver. Tighten with an Allen Key (N). Attach 1x height adjuster (P) to leg [15]. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 7 [12] to form the base of the drawer. Attach panels [11], [12] and with 4x locking nuts (D). Tighten with a screwdriver. [14] as shown using 4x screws (M). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 8 Secure with 4x screws (E) and tighten with a shown. Ensure the drawers slide easily along the rails. screwdriver. Attach handle (O) to panels [9]/[10] and secure with 2x screws (E). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 9 Fasten to the wall using 2x washers (Z), 2x wall anchors (X) and 2x screws (W). Tighten with a screwdriver. 2x wall screws (Y). Ensure unit is balanced and steady before use. You’re done, enjoy! mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
