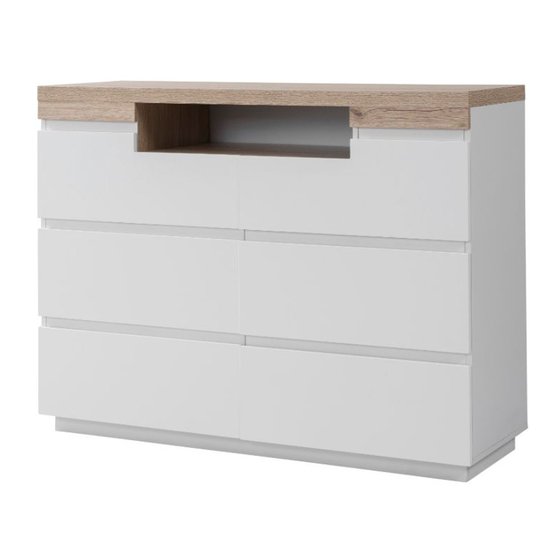

Sadie Six Drawer
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
C
screw
bolt
dowel
x10
x30
x68
H
I
J
slide
slide
wedge
rail x6
rail x6
x8
WARNING:
Any furniture that is not anchored to a wall has the potential to tip over in certain
circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is anchored to a wall. We supply a free safety wall anchor
with all furniture sold and we recommend these are used to prevent your product tipping. The fixing device
provided should fit most wall types, but please note that different wall materials may require different fixing
devices from those supplied.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
D
E
locking
screw
x72
nut x68
K
L
screw
screw
x8
x24

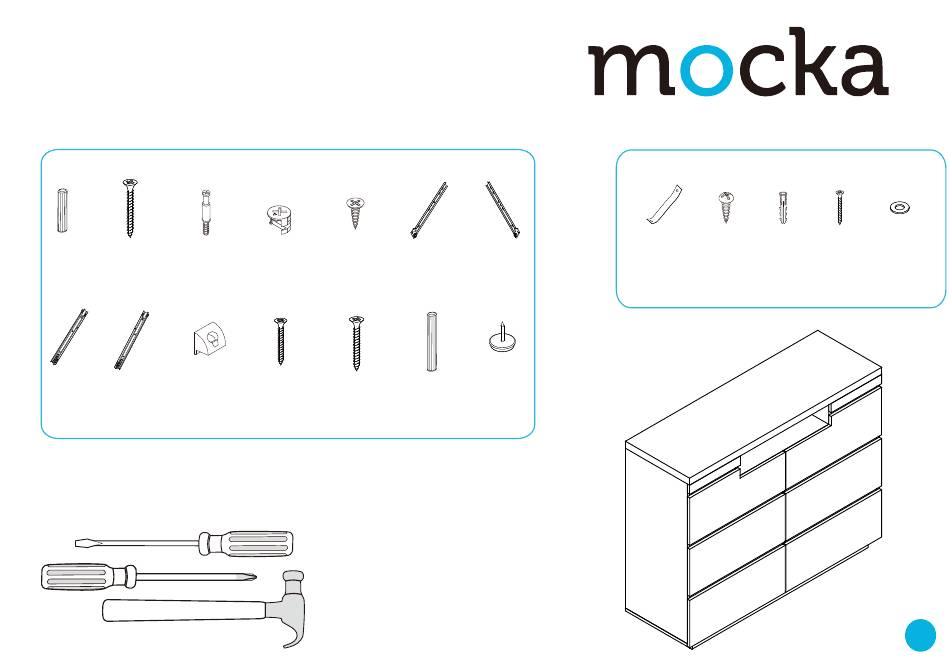

Hardware Supplied
Phillips & Flathead screwdrivers
and hammer required
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
F
G
slide
slide
rail x6
rail x6
M
N
long
plastic
glide x10
dowel
x3
V
W
X
safety
screw
wall
x4
strap x1
anchor
x1
Wall Strap
Y
Z
wall
washer
screw
x2
x1
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Mocka Sadie Six Drawer
Summary of Contents for Mocka Sadie Six Drawer
- Page 1 Phillips & Flathead screwdrivers and hammer required For quicker assembly, we recommend the use of a power drill on a low-speed setting. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 2 Attach 3x slide rails (F) and 3x slide rails (G) to panels [3] Insert 8x bolts (C) into panels [3] and [4]. Tighten with and [4] as shown with 18x screws (E). Tighten with a screwdriver. a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 3 Attach 3x slide rails (F) and 3x slide rails (G) to panel [5] as shown Insert 6x bolts (C) into panel [5]. Tighten with with 18x screws (E). Tighten with a screwdriver. a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 4 Attach panels [10] and [23] to panel [3], secure with 3x locking nuts (D) and 3x dowels (A). Tighten with a screwdriver. and 3x dowels (A). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 5 Insert 2x bolts (C) into panel [8], attach panel [8] to panels [6] and [7] Insert 2x bolts (C) into panels [6] and [7]. Tighten with a screwdriver. with 4x screws (B) and 4x dowels (A). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 6 Attach panels [9] to panels [6] and [7] with 2x locking nuts (D) Attach panels [5] to panel [8] with 2x locking nuts (D) and 2x dowels (A). Tighten with a screwdriver. and 2x dowels (A). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 7 Attach panels [3], [10] and [23] to panels [5] and [9]. Secure with nuts (D), 3x long dowels (M) and 1x dowel (A). Tighten with a screwdriver. 4x locking nuts (D) and 1x dowel (A). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 8 Attach panel [1] to panels [3], [4], [6] and [7] with 8x locking nuts (D). Attach panels [11] to panel [1] with 4x locking nuts (D). Tighten Tighten with a screwdriver. with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 9 Insert 10x bolts (C) into panel [1]. Tighten with a screwdriver. Attach panels [12] together with connect sticks [24]. Slide panels [12] down along the grooves between the panels [3] and [4]. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 10 Insert 4x bolts (C) into panels [13]. Attach panels [13] and [14] together with screws (B) and 6x dowels (A). Tighten with a screwdriver. 4x locking nuts (D). Tighten with a screwdriver. Attach 10x plastic glide (N) to panels [13] using a hammer. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 11 Insert 24x bolts (C) into panels [15], [16], [17] and [18] as shown. Tighten with Attach panels [13] and [14] to panel [2] with 10x locking nuts (D). a screwdriver. Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 12 Attach panels [19] and [20] to panels [15], [16], [17] and [18] secure Slide panels [21] down along the grooves between the panels [19] with 24x locking nuts (D) as shown. Tighten with a screwdriver. and [20] as shown. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 13 Attach slide rail (I) and slide rail (H) to the underside of the side panels Tighten with a screwdriver. as shown. Secure with 36x screws (E) and tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 14 8x screws (K). Now attach 1x safety strap (V) to the back edge of panels [12] using 1x washer (Z) and 1x screw (W). Tighten with a screwdriver.Attach panels [12] to panel [5] with 3x screws (W). Tighten with a screwdriver mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 15 (V). Fasten to the wall using 1x washer (Z), 1x wall anchor (X) and 1x screw (Y). Ensure unit is balanced and steady before use. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
