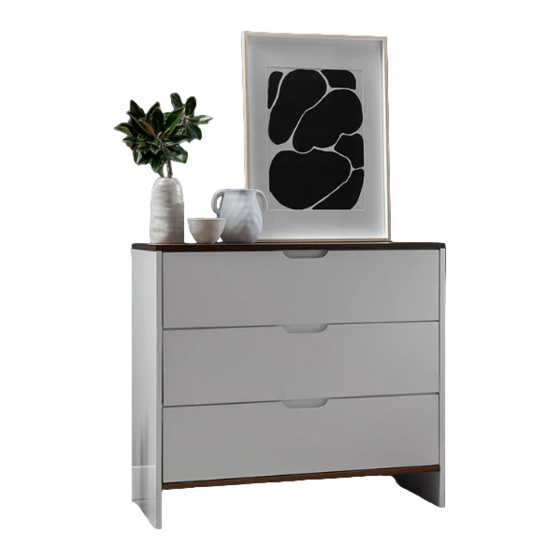

Dahlia Three Drawer
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
B
A
dowel
screw
x10
x18
G
H
slide
slide
rail x3
rail x3
WARNING:
Any furniture that is not anchored to a wall has the potential to tip over in certain
circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is anchored to a wall. We supply a free safety wall anchor
with all furniture sold and we recommend these are used to prevent your product tipping. The fixing device
provided should fit most wall types, but please note that different wall materials may require different fixing
devices from those supplied.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
C
D
E
locking
small
bolt
nut x37
x37
screw x30
I
J
K
slide
wedge
plastic
rail x3
x8
glide x4

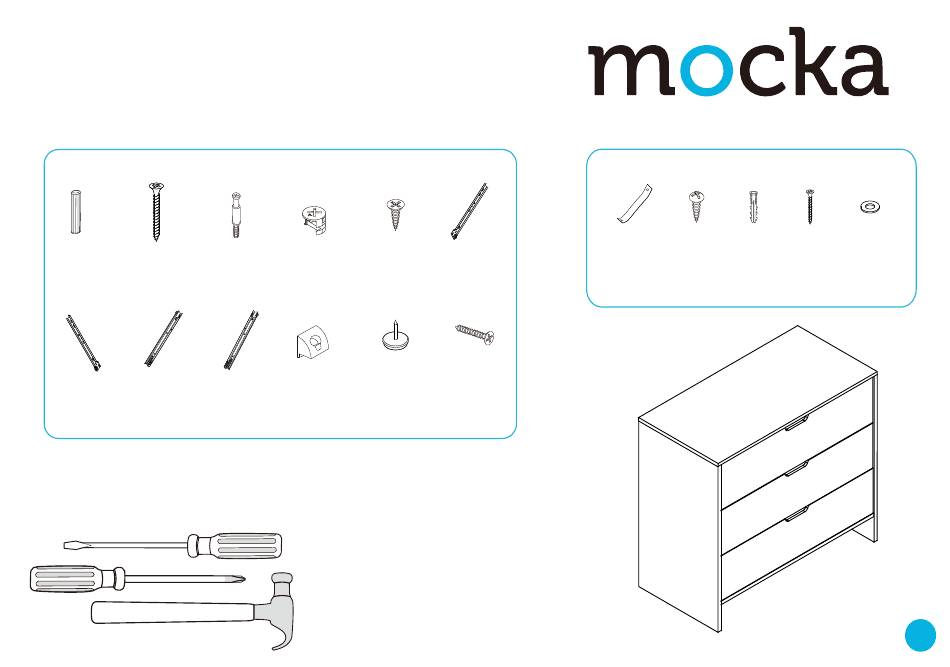

Hardware Supplied
Phillips & Flathead screwdrivers
and hammer required
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
V
F
safety
slide
strap x1
rail x3
L
screw
x8
W
X
Y
screw
wall
wall
washer
x1
anchor
screw
x1
x1
Wall Strap
Z
x2
1
Advertisement
Related Manuals for Mocka Dahlia
Summary of Contents for Mocka Dahlia
- Page 1 Phillips & Flathead screwdrivers and hammer required For quicker assembly, we recommend the use of a power drill on a low-speed setting. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 2 Tighten with a screwdriver. Insert 9x bolts (C) into panel [2]. Tighten Tighten with a screwdriver. Insert 9x bolts (C) into panel [3]. Tighten with with a screwdriver. a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 3 Attach panels [4], [5], [6], [7] and [8] to panel [2] with 3x dowels (A) Slide panel [9] down along the grooves between the panels [7] and [8] as shown. and secure with 9x locking nuts (D). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 4 Attach panel [3] to panels [4], [5], [6], [7],and [8] with 3x dowels (A) and secure with 9x locking nuts (D). Tighten with a screwdriver. Attach 4x plastic glides (K) to the panels [2] and [3] using a hammer as shown. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 5 Insert 4x bolts (C) to panel [1]. Tighten with a screwdriver. nuts (D). Tighten with a screwdriver.Attach panel [1] to panel [4] and secure with 3x screws (B). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 6 Attach panel [11], [12] and [13] to panel [10] and secure with 5x locking nuts (D). Insert 5x bolts (C) to panel [10]. Tighten with a screwdriver. Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 7 Drawer x3 Slide panel [14] along the grooves between the panels [11] and [12] . Attach panels [11], [12] and [15] as shown using 5x screws (B). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 8 Insert the assembled drawers into the corresponding compartments as shown. Secure with 4x small screws (E) and tighten with a screwdriver. as shown. Ensure the drawers slide easily along the rails. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 9 Fasten to the wall using 1x washer (Z) , 1x wall anchor (X) and using 1x washers (Z) and 1x screws (W). Tighten with a screwdriver. 1x wall screw (Y). Ensure unit is balanced and steady before use. You're done, enjoy! mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
