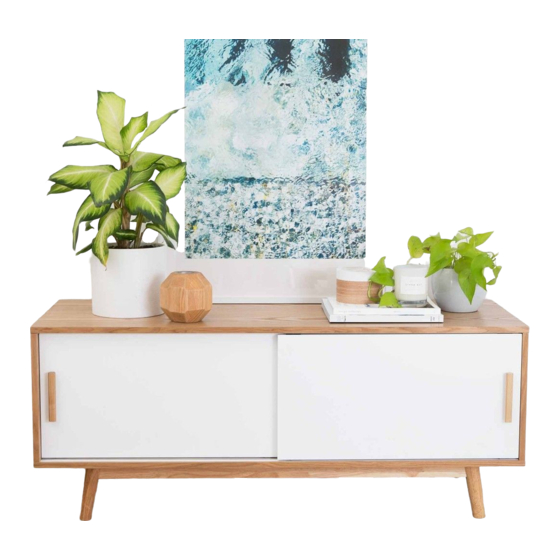

Daisy Entertainment Unit
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
C
screw
long
nut
handle
bolt x4
x4
x2
H
I
J
screw
long
wedge
wheel
x6
x6
screw
x10
Hardware Supplied
Phillips & Flathead screwdrivers required
mocka.co.nz | mocka.com.au
F
G
D
E
dowel
locking
bolt
x4
x12
nut x6
x6
K
M
L
N
screw
screw
wheel
x4
x4
x32
x6
WARNING:
to tip over in certain circumstances, i.e. if a child attempts to climb up on
V
W
the furniture or in the event of an earthquake. Accordingly, we
recommend that all furniture is anchored to a wall. We supply a free
safety wall anchor with all furniture sold and we recommend these are
used to prevent your product tipping. The fixing device provided should
fit most wall types, but please note that different wall materials may
safety
screw
require different fixing devices from those supplied.
x1
strap x1
X
Y
wall
wall
screw x1
anchor x1
Z
washer
x2
Wall Strap
For quicker assembly, we recommend the use of a power drill on a low-speed setting.
*We recommend using a Flathead screwdriver to tighten all locking nuts 100% before first use. Please
clear any loose wood from the locking nut holes before inserting the nut to ensure it locks 100%.
Any furniture that is not anchored to a wall has the potential
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Mocka Daisy Entertainment Unit
Summary of Contents for Mocka Daisy Entertainment Unit
- Page 1 Daisy Entertainment Unit Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. WARNING: Any furniture that is not anchored to a wall has the potential to tip over in certain circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
- Page 2 Daisy Entertainment Unit Assembly Instructions Attach panels [3], [4] and [5] to panel [1] using 6x dowels (E), 6x bolts Slide panel [2] between the grooves of panels [3] and [5] to form the back (G) and secure with 6x locking nuts (G). Tighten with a flathead of the unit.
- Page 3 Daisy Entertainment Unit Assembly Instructions Ensure slot in nut is facing incoming bolt. Attach panel [8] using 6x dowels (E) and 6x screws (N). Tighten with a Attach panels [9] and [10] together to form the legs using 4x long bolts screwdriver.
- Page 4 Daisy Entertainment Unit Assembly Instructions Attach the legs to panel [8] using 10x long screws (H). Tighten with a Attach 1x handle (C) to each door panel [6] and [7] and secure with 4x screwdriver. screws (H). Attach 2x wheels (K) and (L) to each panel [6] and [7], securing with 32x screws (M).
- Page 5 Daisy Entertainment Unit Jolt Wardrobe Assembly Instructions ASSEMBLY INSTRUCTIONS back Note: If the door is not sliding smoothly or sitting straight, there is a screw in the middle of the wheel on the bottom of each door that can be tightened/loosened until the door is sitting properly.
- Page 6 Daisy Entertainment Unit Assembly Instructions strap wall plug screw Attach the safety strap (V) to the back underside edge of the top of the Attach the other end of the safety strap (V) to the wall with 1x wall plug unit using 1x washer (Z) and 1x screw (W).
