Summary of Contents for Microsens MS400863M

  • Page 1 Quick Start Guide Commissioning the 28-Port 10G Multi Fiber L2/L3 Switch 19" V1.0.0...
  • Page 2: Table Of Contents

    Access for Network Management ....................8 Firmware Updates and Further Information................8 10.1 Registration..........................8 10.2 Login ............................9 10.3 Firmware Image File ........................9 10.4 MICROSENS Support ........................9 DECLARATION OF CONFORMITY ....................9 MICROSENS GmbH & Co. KG, Kueferstr. 16, 59067 Hamm, Germany...
  • Page 3: Overview And Aim Of This Quick Start Guide

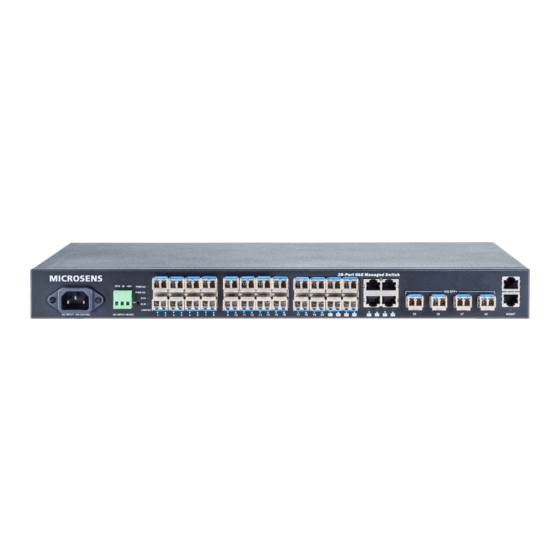

    28-Port 10G Multi Fiber L2/L3 Switch 19" Overview and Aim of this Quick Start Guide The 28-Port 10G Multi Fiber L2/L3 Switch 19" from MICROSENS provides twenty-four Gigabit Ethernet RJ-45 ports, eight combo Gigabit Ethernet RJ-45 ports and four 10G SFP+ fiber uplink ports.
  • Page 4: Display And Connections

    Keep the following points in mind:  Make sure not to pinch existing cables!  Keep a distance of at least 5 cm to nearby devices to provide ventilation and to avoid overheating. MICROSENS GmbH & Co. KG, Kueferstr. 16, 59067 Hamm, Germany...
  • Page 5: Desktop Installation

    The PGND of the switch is shorted to the copper protection ground bar provided by the user. The PGND cable used should be an alternating yellow and green plastic insulating one with copper core, with cross-sectional area greater than 2.5mm². The figure below takes rack-mounted installation as example. MICROSENS GmbH & Co. KG, Kueferstr. 16, 59067 Hamm, Germany...
  • Page 6 The switch is powered by a 100…240 VDC power connection (s. Fig. 1, ). For redundancy or load sharing reasons it has an optional second power source using the same voltage with the redundant power supply port (s. MICROSENS GmbH & Co. KG, Kueferstr. 16, 59067 Hamm, Germany...
  • Page 7 AC power module as example. Please follow the steps below. Remove the bezel on the rear panel of the switch. Push the power module into the slot. Fix the screws stably. MICROSENS GmbH & Co. KG, Kueferstr. 16, 59067 Hamm, Germany...
  • Page 8: Starting Up

    (Sub-D9 to RJ-45) transfer rate: 115200 bit/s flow control: no test mode: no Stop bits: 1 Data bits: 8 o RJ45: Enabled (Ethernet management port) transfer rate: 10/100Base-TX o SSH: Enabled MICROSENS GmbH & Co. KG, Kueferstr. 16, 59067 Hamm, Germany...
  • Page 9: Preset User Level For Management Access

    The status LEDs on the device’s front side (s. Fig. 1, ) have the following meaning:  “PWR1” (main power supply), “PWR2” (optional redundant power supply) o Off – The respective power supply is off. MICROSENS GmbH & Co. KG, Kueferstr. 16, 59067 Hamm, Germany...
  • Page 10: Port Status Leds

    7.2.2 SFP/SFP+ (1000Base-X and 1000/10GBase-X) The device’s SFP and SFP+ ports s. Fig. 1, ) have one port status indicator:  lnk (Link) o Off ‒ Link down, no connection. MICROSENS GmbH & Co. KG, Kueferstr. 16, 59067 Hamm, Germany...
  • Page 11: Reset Button

    You have access to current firmware versions and further information once you have registered on our website. 10.1 Registration In your internet browser open the address “www.microsens.com” and navigate to the page “Partner Login”. Follow the link “Please register here”.
  • Page 12: Firmware Image File

     Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. MICROSENS GmbH & Co. KG, Kueferstr. 16, 59067 Hamm, Germany...
  • Page 13 All information in this document is provided ‘as is’ and subject to change without notice. MICROSENS GmbH & Co. KG disclaims any liability for the correctness, completeness or quality of the information provided, fitness for a particular purpose or consecutive damage.
