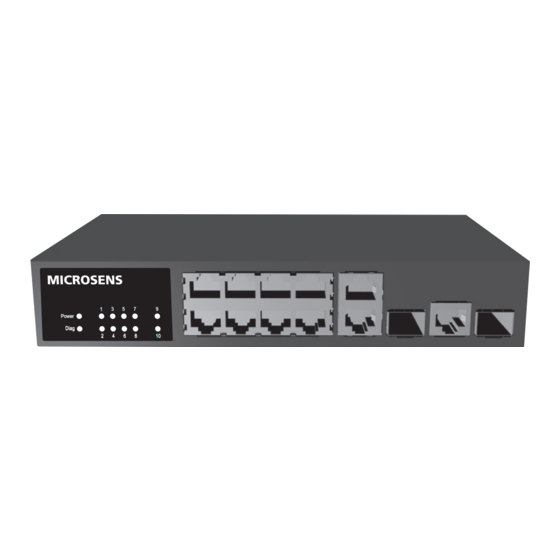

Microsens MS453490M Installation Manual

10 port fast ethernet switch
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
MS453490M
10 Port Fast Ethernet Switch
Installation Guide
MICROSENS GmbH & Co. KG - Kueferstraße 16 - 59067 Hamm / Germany - Tel. +49 23 81/94 52-0 - FAX -100 - www.microsens.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MS453490M and is the answer not in the manual?

Questions and answers

Related Manuals for Microsens MS453490M

Summary of Contents for Microsens MS453490M

  • Page 1 MS453490M 10 Port Fast Ethernet Switch Installation Guide MICROSENS GmbH & Co. KG - Kueferstraße 16 - 59067 Hamm / Germany - Tel. +49 23 81/94 52-0 - FAX -100 - www.microsens.com...
  • Page 3 NSTALLATION UIDE MS453490M 10 P THERNET WITCH Layer 2 Switch with 8 10/100BASE-TX (RJ-45) Ports, and 2 Gigabit Combination Ports (RJ-45/SFP) MS453490M E102010-CS-R01 149100000110A...

  • Page 5: Ompliances And

    OMPLIANCES AND AFETY TATEMENTS CE M (EEC) ECLARATION OF ONFORMANCE FOR AFETY This information technology equipment complies with the requirements of the Council Directive 89/336/EEC on the Approximation of the laws of the Member States relating to Electromagnetic Compatibility and 73/23/EEC for electrical equipment used within certain voltage limits and the Amendment Directive 93/ 68/EEC.
  • Page 6 OMPLIANCES AND AFETY TATEMENTS AFETY OMPLIANCE Infrared radiation as used for data transmission within the ARNING fiber optic, although invisible to the human eye, can nevertheless CLASS I cause damage. LASER DEVICE To avoid damage to the eyes: ◆ never look straight into the output of fiber optic components - danger of blinding! ◆...
  • Page 7 OMPLIANCES AND AFETY TATEMENTS OWER AFETY Please read the following safety information carefully before installing the switch: Installation and removal of the unit must be carried out by qualified WARNING: personnel only. The unit must be connected to an earthed (grounded) outlet to comply with ◆...
  • Page 8 OMPLIANCES AND AFETY TATEMENTS Power Cord Set U.S.A. and Canada The cord set must be UL-approved and CSA certified. The minimum specifications for the flexible cord are: - No. 18 AWG - not longer than 2 meters, or 16 AWG. - Type SV or SJ - 3-conductor The cord set must have a rated current capacity of at least 10 A...
  • Page 9 OMPLIANCES AND AFETY TATEMENTS La prise secteur doit se trouver à proximité de l’appareil et son accès doit ◆ être facile. Vous ne pouvez mettre l’appareil hors circuit qu’en débranchant son cordon électrique au niveau de cette prise. L’appareil fonctionne à une tension extrêmement basse de sécurité qui est ◆...
  • Page 10 OMPLIANCES AND AFETY TATEMENTS Bitte unbedingt vor dem Einbauen des Switches die folgenden Sicherheitsanweisungen durchlesen: Die Installation und der Ausbau des Geräts darf nur durch WARNUNG: Fachpersonal erfolgen. Das Gerät sollte nicht an eine ungeerdete Wechselstromsteckdose ◆ angeschlossen werden. Das Gerät muß an eine geerdete Steckdose angeschlossen werden, welche ◆...
  • Page 11 OMPLIANCES AND AFETY TATEMENTS ARNINGS AND AUTIONARY ESSAGES This product does not contain any serviceable user parts. ARNING Installation and removal of the unit must be carried out by ARNING qualified personnel only. When connecting this device to a power outlet, connect the ARNING field ground lead on the tri-pole power plug to a valid earth ground line to prevent electrical hazards.
  • Page 12 OMPLIANCES AND AFETY TATEMENTS ND OF RODUCT This product is manufactured in such a way as to allow for the recovery and disposal of all included electrical components once the product has reached the end of its life. ANUFACTURING ATERIALS There are no hazardous nor ozone-depleting materials in this product.

  • Page 13: About This Guide

    BOUT UIDE URPOSE This guide details the hardware features of the switch, including the physical and performance-related characteristics, and how to install the switch. UDIENCE The guide is intended for use by network administrators who are responsible for installing and setting up network equipment; consequently, it assumes a basic working knowledge of LANs (Local Area Networks).
  • Page 14 BOUT UIDE EVISION ISTORY This section summarizes the changes in each revision of this guide. 2010 R CTOBER EVISION This is the first revision of this guide. – 14 –...

  • Page 15: Table Of Contents

    ONTENTS OMPLIANCES AND AFETY TATEMENTS BOUT UIDE ONTENTS ABLES IGURES NTRODUCTION Overview Description of Hardware ETWORK LANNING Introduction to Switching Application Examples Application Notes NSTALLING THE WITCH Selecting a Site Ethernet Cabling Equipment Checklist Mounting Installing an Optional SFP Transceiver Connecting to a Power Source Connecting to the Console Port AKING...
  • Page 16 ONTENTS Fiber Optic SFP Devices Connectivity Rules Cable Labeling and Connection Records ROUBLESHOOTING Diagnosing Switch Indicators Power and Cooling Problems Installation In-Band Access ABLES Twisted-Pair Cable and Pin Assignments Fiber Standards PECIFICATIONS Physical Characteristics Switch Features Management Features Standards Compliances LOSSARY NDEX –...

  • Page 17: Tables

    ABLES Table 1: Supported SFP Transceivers Table 2: 10/100 Mbps Port Status LEDs (1~8) Table 3: 1000 Mbps Port Status LEDs (9~10) Table 4: System Status LEDs Table 5: Serial Cable Wiring Table 6: Maximum 1000BASE-T Gigabit Ethernet Cable Length Table 7: Maximum 1000BASE-SX Gigabit Ethernet Cable Lengths Table 8:...
  • Page 18 ABLES – 18 –...

  • Page 19: Figures

    IGURES Figure 1: Front Panel Figure 2: Rear Panel Figure 3: Port LEDs Figure 4: Power Supply Socket Figure 5: Collapsed Backbone Figure 6: Network Aggregation Plan Figure 7: Remote Connections with Fiber Cable Figure 8: Making VLAN Connections Figure 9: RJ-45 Connections Figure 10: Attaching the Adhesive Feet...
  • Page 20 IGURES – 20 –...

  • Page 21: Introduction

    NTRODUCTION VERVIEW The MS453490M is a Fast Ethernet Layer 2 switch with 8 100BASE-TX ports, and two Gigabit combination ports: 1000BASE-T RJ-45 and Small Form Factor Pluggable (SFP) transceiver slots (see Figure 1-1, Ports 9-10). The switch also includes an SNMP-based management agent, which provides both in-band and out-of-band access for managing the switch.

  • Page 22: Figure 2: Rear Panel

    | Introduction HAPTER Overview Figure 2: Rear Panel Power Socket WITCH RCHITECTURE The switch employs a wire-speed, non-blocking switching fabric. This permits simultaneous wire-speed transport of multiple packets at low latency on all ports. The switch also features full-duplex capability on all ports, which effectively doubles the bandwidth of each connection.

  • Page 23: Description Of Hardware

    | Introduction HAPTER Description of Hardware ESCRIPTION OF ARDWARE RJ-45 P ORTS The switch contains 8 100BASE-TX RJ-45 ports and 2 shared 1000BASE-T RJ-45/SFP ports. All RJ-45 ports support automatic MDI/MDI-X operation, so you can use straight-through cables for all network connections to PCs or servers, or to other switches or hubs.

  • Page 24: Figure 3: Port Leds

    | Introduction HAPTER Description of Hardware Table 1: Supported SFP Transceivers (Continued) Media Standard Cable Diameter Wavelength (nm) Maximum Distance (microns) 1000BASE-LX 50/125 1300 550 m 62.5/125 1300 550 m 9/125 1300 10 km 1000BASE-LH 9/125 1310 35 km 1550 80 km 1000BASE-T 100 m...

  • Page 25: Table 2: 10/100 Mbps Port Status Leds (1~8)

    | Introduction HAPTER Description of Hardware Table 2: 10/100 Mbps Port Status LEDs (1~8) Condition Status (Link/Activity) On/Flashing Green Port has established a valid 10/100 Mbps network connection. Flashing indicates activity. There is no valid link on the port. Table 3: 1000 Mbps Port Status LEDs (9~10) Condition Status (Link/Activity)

  • Page 26: Figure 4: Power Supply Socket

    | Introduction HAPTER Description of Hardware OWER UPPLY OCKET There is one power socket on the rear panel of the switch. The standard power socket is for the AC power cord. Figure 4: Power Supply Socket – 26 –...

  • Page 27: Network Planning

    ETWORK LANNING NTRODUCTION TO WITCHING A network switch allows simultaneous transmission of multiple packets via non- crossbar switching. This means that it can partition a network more efficiently than bridges or routers. The switch has, therefore, been recognized as one of the most important building blocks for today’s networking technology.

  • Page 28: Application Examples

    | Network Planning HAPTER Application Examples PPLICATION XAMPLES The switch is not only designed to segment your network, but also to provide a wide range of options in setting up network connections. Some typical applications are described below. OLLAPSED ACKBONE The switch is an excellent choice for mixed Ethernet, Fast Ethernet, and Gigabit Ethernet installations where significant growth is expected in the near future.

  • Page 29: Figure 6: Network Aggregation Plan

    | Network Planning HAPTER Application Examples ETWORK GGREGATION With 10 parallel bridging ports (i.e., 10 distinct collision domains), the switch can collapse a complex network down into a single efficient bridged node, increasing overall bandwidth and throughput. In the figure below, the 100BASE-TX ports on the switch are providing 100 Mbps connectivity for up to 8 segments.

  • Page 30: Figure 7: Remote Connections With Fiber Cable

    | Network Planning HAPTER Application Examples EMOTE ONNECTIONS WITH IBER ABLE Fiber optic technology allows for longer cabling than any other media type. A 1000BASE-SX (MMF) link can connect to a site up to 550 meters away, a 1000BASE-LX (SMF) link up to 10 km, and a 1000BASE-LH link up to 80 km. This allows the switch to serve as a collapsed backbone, providing direct connectivity for a widespread LAN.

  • Page 31: Figure 8: Making Vlan Connections

    | Network Planning HAPTER Application Examples VLAN C AKING ONNECTIONS This switch supports VLANs which can be used to organize any group of network nodes into separate broadcast domains. VLANs confine broadcast traffic to the originating group, and can eliminate broadcast storms in large networks. This provides a more secure and cleaner network environment.

  • Page 32: Application Notes

    | Network Planning HAPTER Application Notes PPLICATION OTES Full-duplex operation only applies to point-to-point access (such as when a switch is attached to a workstation, server or another switch). When the switch is connected to a hub, both devices must operate in half-duplex mode.

  • Page 33: Installing The Switch

    NSTALLING THE WITCH ELECTING A Switch units can be mounted in a standard 19-inch equipment rack or on a flat surface. Be sure to follow the guidelines below when choosing a location. The site should: ◆ be at the center of all the devices you want to link and near a power ■...

  • Page 34: Ethernet Cabling

    | Installing the Switch HAPTER Ethernet Cabling THERNET ABLING To ensure proper operation when installing the switch into a network, make sure that the current cables are suitable for 10BASE-T, 100BASE-TX or 1000BASE-T operation. Check the following criteria against the current installation of your network: Cable type: Unshielded twisted pair (UTP) or shielded twisted pair (STP) ◆...

  • Page 35: Equipment Checklist

    After unpacking this switch, check the contents to be sure you have received all the components. Then, before beginning the installation, be sure you have all other necessary installation equipment. ACKAGE ONTENTS Fast Ethernet Switch (MS453490M) ◆ Four adhesive foot pads ◆ Power Cord—either US, Continental Europe or UK ◆...

  • Page 36: Figure 10: Attaching The Adhesive Feet

    | Installing the Switch HAPTER Mounting Figure 10: Attaching the Adhesive Feet Set the device on a flat surface near an AC power source, making sure there are at least two inches of space on all sides for proper air flow. If installing a single switch only, go to “Connecting to a Power Source”...

  • Page 37: Installing An Optional Sfp Transceiver

    | Installing the Switch HAPTER Installing an Optional SFP Transceiver SFP T NSTALLING AN PTIONAL RANSCEIVER Figure 11: Inserting an SFP Transceiver into a Slot The SFP slots support the following optional SFP transceivers: 1000BASE-SX ◆ 1000BASE-LX ◆ 1000BASE-LH ◆ To install an SFP transceiver, do the following: Consider network and cabling requirements to select an appropriate SFP transceiver type.

  • Page 38: Connecting To A Power Source

    | Installing the Switch HAPTER Connecting to a Power Source SFP transceivers are hot-swappable. The switch does not need to be powered off before installing or removing a transceiver. However, always first disconnect the network cable before removing a transceiver. SFP transceivers are not provided in the switch package.

  • Page 39: Connecting To The Console Port

    | Installing the Switch HAPTER Connecting to the Console Port ONNECTING TO THE ONSOLE This port is used to connect a console device to the switch through a serial cable. The console device can be a PC or workstation running a VT-100 terminal emulator, or a VT-100 terminal.
  • Page 40 | Installing the Switch HAPTER Connecting to the Console Port Parity—None ◆ Stop bit—One ◆ Data bits—8 ◆ Flow control—none ◆ – 40 –...

  • Page 41: Making Network Connections

    AKING ETWORK ONNECTIONS ONNECTING ETWORK EVICES The switch is designed to be connected to 10 or 100 Mbps network cards in PCs and servers, as well as to other switches and hubs. It may also be connected to remote devices using optional 1000BASE-SX, 1000BASE-LX, or 1000BASE-LH SFP transceivers.

  • Page 42: Figure 14: Making Twisted-Pair Connections

    | Making Network Connections HAPTER Twisted-Pair Devices ONNECTING TO ERVERS UBS AND WITCHES Attach one end of a twisted-pair cable segment to the device’s RJ-45 connector. Figure 14: Making Twisted-Pair Connections If the device is a network card and the switch is in the wiring closet, attach the other end of the cable segment to a modular wall outlet that is connected to the wiring closet.

  • Page 43: Fiber Optic Sfp Devices

    | Making Network Connections HAPTER Fiber Optic SFP Devices SFP D IBER PTIC EVICES An optional Gigabit SFP transceiver (1000BASE-SX, 1000BASE-LX or 1000BASE- LH) can be used for a backbone connection between switches, or for connecting to a high-speed server. Each single-mode fiber port requires 9/125 micron single-mode fiber optic cable with an LC connector at both ends.

  • Page 44: Figure 15: Making Fiber Port Connections

    | Making Network Connections HAPTER Fiber Optic SFP Devices Figure 15: Making Fiber Port Connections As a connection is made, check the Link LED on the switch corresponding to the port to be sure that the connection is valid. The 1000BASE-SX, 1000BASE-LX, 1000BASE-LH fiber optic ports operate at 1 Gbps, full duplex, with auto-negotiation of flow control.

  • Page 45: Connectivity Rules

    | Making Network Connections HAPTER Connectivity Rules ONNECTIVITY ULES When adding hubs (repeaters) to your network, please follow the connectivity rules listed in the manuals for these products. However, note that because switches break up the path for connected devices into separate collision domains, you should not include the switch or connected cabling in your calculations for cascade length involving other devices.

  • Page 46: Table 8: Maximum 1000Base-Lx Gigabit Ethernet Cable Length

    | Making Network Connections HAPTER Connectivity Rules Table 8: Maximum 1000BASE-LX Gigabit Ethernet Cable Length Fiber Size Fiber Bandwidth Maximum Cable Length Connector 9/125 micron single- 2 m - 10 km (7 ft - 6.2 miles) LC mode fiber Table 9: Maximum 1000BASE-LH Gigabit Ethernet Cable Length Fiber Size Fiber Bandwidth Maximum Cable Length...

  • Page 47: Cable Labeling And Connection Records

    | Making Network Connections HAPTER Cable Labeling and Connection Records ABLE ABELING AND ONNECTION ECORDS When planning a network installation, it is essential to label the opposing ends of cables and to record where each cable is connected. Doing so will enable you to easily locate inter-connected devices, isolate faults and change your topology without need for unnecessary time consumption.
  • Page 48 | Making Network Connections HAPTER Cable Labeling and Connection Records – 48 –...

  • Page 49: Diagnosing Switch Indicators

    ROUBLESHOOTING IAGNOSING WITCH NDICATORS Table 12: Troubleshooting Chart Symptom Action Power LED is Off ◆ Check connections between the switch, the power cord and the wall outlet. ◆ Contact your dealer for assistance. Power LED is on ◆ Contact your local dealer for assistance. Amber DIAG LED On Amber ◆...

  • Page 50: Troubleshooting

    | Troubleshooting PPENDIX Power and Cooling Problems OWER AND OOLING ROBLEMS If the power indicator does not turn on when the power cord is plugged in, you may have a problem with the power outlet, power cord, or internal power supply.

  • Page 51: Cables

    ABLES WISTED ABLE AND SSIGNMENTS For 10/100BASE-TX connections, the twisted-pair cable must have two pairs of wires. For 1000BASE-T connections the twisted-pair cable must have four pairs of wires. Each wire pair is identified by two different colors. For example, one wire might be green and the other, green with white stripes.

  • Page 52: Table 13: 10/100Base-Tx Mdi And Mdi-X Port Pinouts

    | Cables PPENDIX Twisted-Pair Cable and Pin Assignments 10BASE-T/100BASE-TX P SSIGNMENTS Use unshielded twisted-pair (UTP) or shielded twisted-pair (STP) cable for RJ-45 connections: 100-ohm Category 3 or better cable for 10 Mbps connections, or 100-ohm Category 5 or better cable for 100 Mbps connections. Also be sure that the length of any twisted-pair connection does not exceed 100 meters (328 feet).

  • Page 53: Figure 17: Straight-Through Wiring

    | Cables PPENDIX Twisted-Pair Cable and Pin Assignments Figure 17: Straight-through Wiring EIA/TIA 568B RJ-45 Wiring Standard 10/100BASE-TX Straight-through Cable White/Orange Stripe Orange White/Green Stripe End A End B Blue White/Blue Stripe Green White/Brown Stripe Brown ROSSOVER IRING If the twisted-pair cable is to join two ports and either both ports are labeled with an “X”...

  • Page 54: Table 14: 1000Base-T Mdi And Mdi-X Port Pinouts

    | Cables PPENDIX Twisted-Pair Cable and Pin Assignments 1000BASE-T P SSIGNMENTS All 1000BASE-T ports support automatic MDI/MDI-X operation, so you can use straight-through cables for all network connections to PCs or servers, or to other switches or hubs. The table below shows the 1000BASE-T MDI and MDI-X port pinouts. These ports require that all four pairs of wires be connected.

  • Page 55: Fiber Standards

    | Cables PPENDIX Fiber Standards 1000BASE-T DJUSTING XISTING ATEGORY ABLING TO If your existing Category 5 installation does not meet one of the test parameters for 1000BASE-T, there are basically three measures that can be applied to try and correct the problem: Replace any Category 5 patch cables with high-performance Category 5e or Category 6 cables.
  • Page 56 | Cables PPENDIX Fiber Standards Table 15: Fiber Standards (Continued) ITU-T Description Application Standard G.654 1550-nm Loss-Minimized Fiber Extended long-haul applications. Optimized for high-power Single-mode, 9/125-micron core transmission in the 1500 to 1600-nm region, with low loss in the 1550-nm band.

  • Page 57: Specifications

    PECIFICATIONS HYSICAL HARACTERISTICS ORTS 8 10/100BASE-TX, with auto-negotiation 2 10/100/1000BASE-T, shared with two SFP transceiver slots ETWORK NTERFACE Ports 1-10: RJ-45 connector, auto MDI/X 10BASE-T: RJ-45 (100-ohm, UTP cable; Category 3 or better) 100BASE-TX: RJ-45 (100-ohm, UTP cable; Category 5 or better) 1000BASE-T: RJ-45 (100-ohm, UTP or STP cable;...
  • Page 58 | Specifications PPENDIX Physical Characteristics EIGHT 0.72 kg (1.59 lbs) (W x D x H): 195 mm x 115 mm x 36 mm (7.68 x 4.53 x 1.42 inches) EMPERATURE Operating: 0°C to 45°C (32°F to 113°F) Storage: -40°C to 70°C (-40°F to 158°F) UMIDITY Operating: 10% to 90% (non-condensing) AC I...

  • Page 59: Switch Features

    | Specifications PPENDIX Switch Features WITCH EATURES ORWARDING Store-and-forward HROUGHPUT Wire speed ONTROL Full Duplex: IEEE 802.3x Half Duplex: Back pressure ANAGEMENT EATURES ANAGEMENT SSH, Telnet, SNMP, or HTTP ANAGEMENT RS-232 RJ-45 console port OFTWARE OADING TFTP in-band, or XModem out-of-band –...

  • Page 60: Standards

    | Specifications PPENDIX Standards TANDARDS IEEE 802.3-2005 Ethernet, Fast Ethernet, Gigabit Ethernet Full-duplex flow control Link Aggregation Control Protocol IEEE 802.1D -2004 Spanning Tree Protocol Rapid Spanning Tree Protocol Multiple Spanning Tree Protocol ISO/IEC 8802-3 OMPLIANCES MISSIONS EN55022 (CISPR 22) Class A EN 61000-3-2/3 CE Mark MMUNITY...

  • Page 61: Glossary

    LOSSARY 10BASE-T IEEE 802.3 specification for 10 Mbps Ethernet over two pairs of Category 3, 4, or 5 UTP cable. 100BASE-TX IEEE 802.3u specification for 100 Mbps Ethernet over two pairs of Category 5 UTP cable. 1000BASE-LH Specification for long-haul Gigabit Ethernet over two strands of 9/125 micron core fiber cable.
  • Page 62 LOSSARY ANDWIDTH The difference between the highest and lowest frequencies available for network signals. Also synonymous with wire speed, the actual speed of the data transmission along the cable. OLLISION OMAIN Single CSMA/CD LAN segment. CSMA/CD CSMA/CD (Carrier Sense Multiple Access/Collision Detect) is the communication method employed by Ethernet, Fast Ethernet, and Gigabit Ethernet.
  • Page 63 LOSSARY IEEE Institute of Electrical and Electronic Engineers. IEEE 802.3 Defines carrier sense multiple access with collision detection (CSMA/CD) access method and physical layer specifications. IEEE 802.3 Defines CSMA/CD access method and physical layer specifications for 1000BASE-T Gigabit Ethernet. (Now incorporated in IEEE 802.3-2005.) IEEE 802.3 Defines CSMA/CD access method and physical layer specifications for 100BASE- TX Fast Ethernet.
  • Page 64 LOSSARY (MAC) EDIA CCESS ONTROL A portion of the networking protocol that governs access to the transmission medium, facilitating the exchange of data between network nodes. An acronym for Management Information Base. It is a set of database objects that contains information about the device. ODAL ANDWIDTH Bandwidth for multimode fiber is referred to as modal bandwidth because it...
  • Page 65 LOSSARY UDP packets are delivered just like IP packets – connection-less datagrams that may be discarded before reaching their targets. UDP is useful when TCP would be too complex, too slow, or just unnecessary. Unshielded twisted-pair cable. LAN (VLAN) IRTUAL A Virtual LAN is a collection of network nodes that share the same collision domain regardless of their physical location or connection point in the network.
  • Page 66 LOSSARY – 66 –...
