Microsens MS650850M Application

Gigabit Ethernet Switch
for Industrial Fiber Ring Application
General
Ethernet has been used in the controlling level of industrial applications for many years.
Ethernet is continuing to beat the field bus technologies used to date in coupling equipment
controls, sensors and actors. Process error-tolerant network components are absolutely essential
because the network availability has a direct effect on production.
It is precisely to prevent this that MICROSENS has developed a mechanism for which a patent is
pending that enables the Ethernet network to be reconfigured within milliseconds if an error
occurs.
The switches can be configured and monitored either by SNMP or a PC-based management tool
(Device Manager). In addition to the Device Manager all statuses are displayed web based using
an integrated HTTP server.
In addition to the two 1000Base-SX/LX fiber connections for chain linking several industrial
switches, the MICROSENS industrial switches also offer seven 10/100Base-TX connections for
linking such Ethernet terminals as machine controls, network uplinks, consoles and other
network participants and one 10/100/1000Base-T port for a central uplink connection.
In an extended version this switch is available with a third optical fiber port (1000Base-X). This
port can be used alternative to the 10/100/1000Base-T port.
For particularly demanding uses, the industrial switches are designed in a suitably robust
construction with an integrated clamping device for direct assembly on 35 mm DIN rails. The
devices meet the requirements for IP protection class 30 and are also designed for a larger
temperature range.
The power supply of the devices is done by an external, central power supply unit. With the
second power input the device can be supplied with redundant power. All electrical ports are
either galvanic isolated or equipped with an effective over voltage protection.

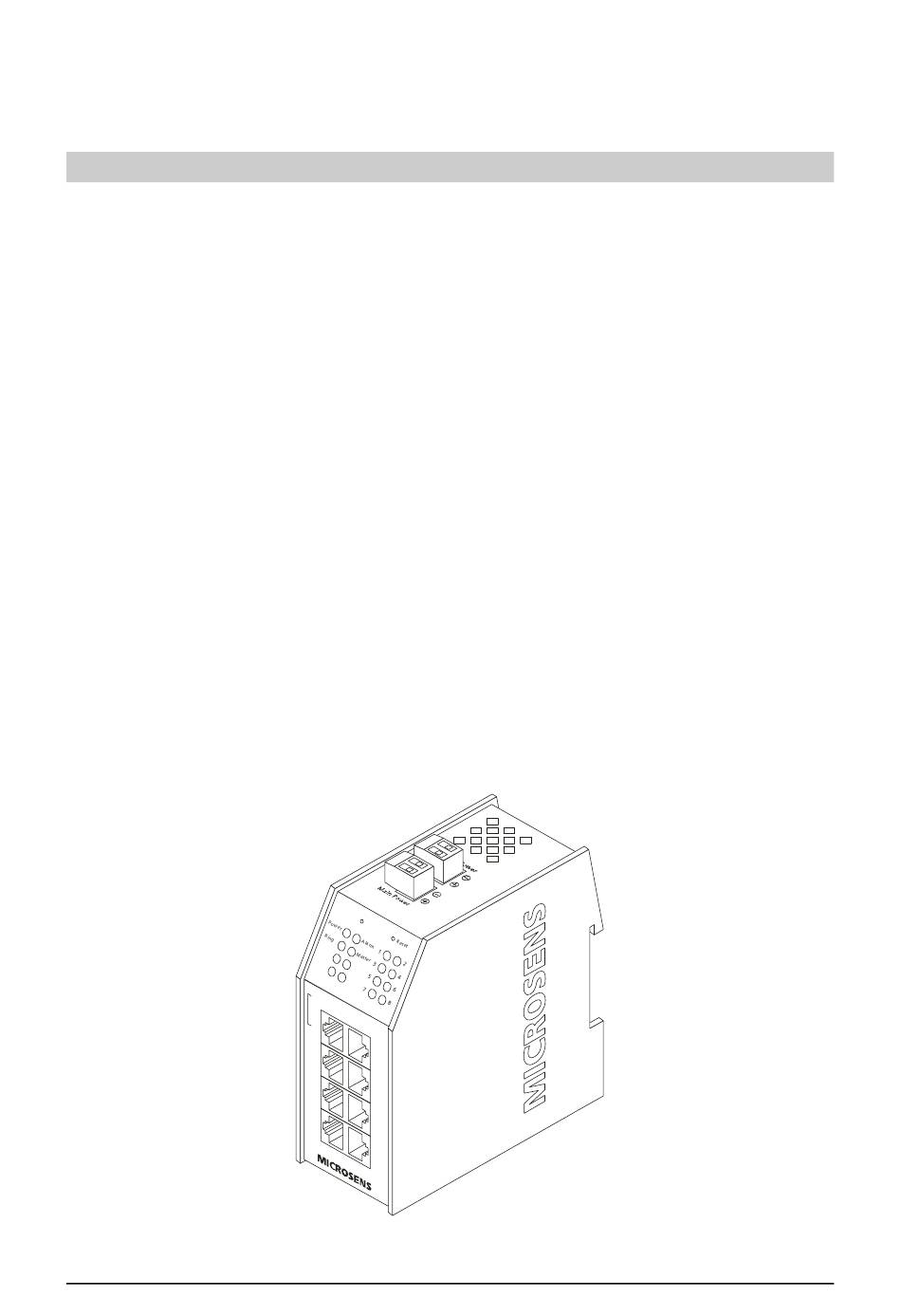

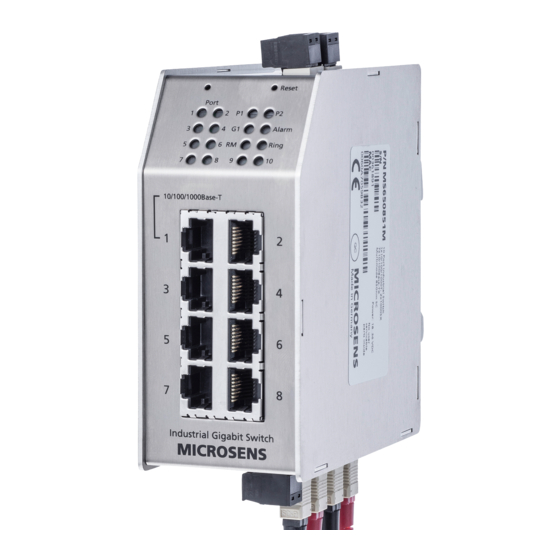

Fig. 1: Gigabit Ethernet switch for fault tolerant fiber rings
