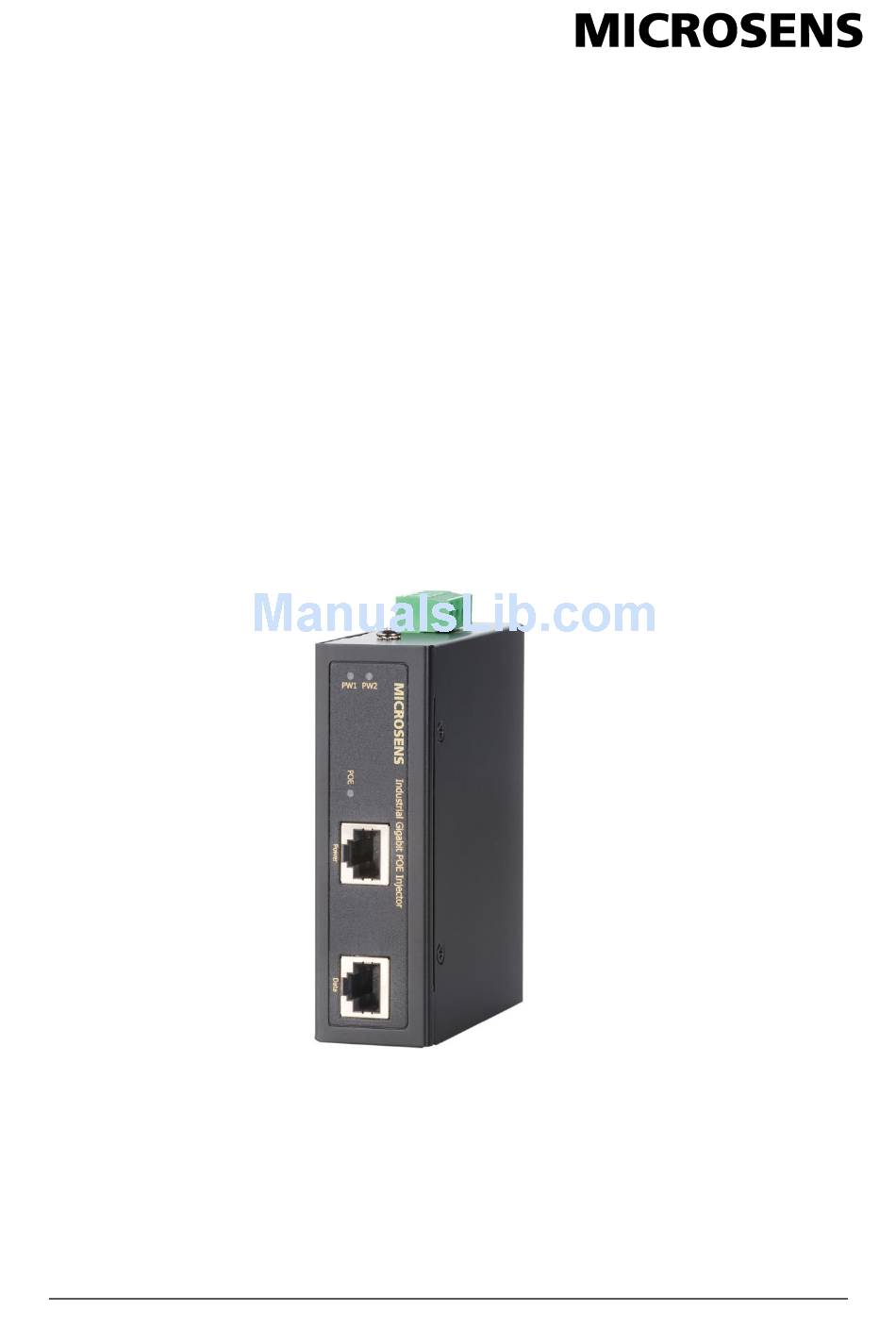

- Page 1 User Manual – Entry Line Industrial Gigabit Ethernet High Power 60/95 W PoE Injector ©2017_MICROSENS GmbH & Co. KG_Küferstr. 16_59067 Hamm/Germany_www.microsens.com...
-
Page 2: Table Of Contents
Mounting ..........................5 Power Supply / Alarm Contact ..................7 Twisted Pair Connections ....................7 Application .......................... 8 Technical Specifications ....................9 Standard Compliance .......................10 Safety Notes ........................10 Order Information ......................11 Accessories ........................11 ©2017_MICROSENS GmbH & Co. KG_Küferstr. 16_59067 Hamm/Germany_www.microsens.com... -
Page 3: General
1x10/100/1000Base-T data port Power Supply 48..56 VDC Redundant Dual Power Input Overload current protection Reverse polarity protection Chassis/Installation IP-30 Protection DIN-rail and Wall Mount Design Front View ©2017_MICROSENS GmbH & Co. KG_Küferstr. 16_59067 Hamm/Germany_www.microsens.com... -
Page 4: Led Display
Meaning Power 1 is active Green Power 1 is inactive Power 2 is active Green Power 2 is inactive End span PD detected Mode A Green No PoE supplied Dimensional Drawings Dimensional Drawing ©2017_MICROSENS GmbH & Co. KG_Küferstr. 16_59067 Hamm/Germany_www.microsens.com... -
Page 5: Mounting
2. Then, lightly push the DIN-rail into the track. Installation to DIN-rail (Step 2) 3. Check if the DIN-rail is tightened on the track or not. 4. To remove the industrial switch from the track, reverse steps above. ©2017_MICROSENS GmbH & Co. KG_Küferstr. 16_59067 Hamm/Germany_www.microsens.com... - Page 6 1. First, use the screws included in the package to combine the industrial switch and metal mounting kit and remove the DIN-rail adapter. 2. Then fix the switch with some screws to the wall. Wall mounting brackets ©2017_MICROSENS GmbH & Co. KG_Küferstr. 16_59067 Hamm/Germany_www.microsens.com...
-
Page 7: Power Supply / Alarm Contact
(full or half duplex) between connected ports. A manual configuration is not required. Note: Always make sure the total length of the TX cable DOES NOT exceed 100meter. Total length is defined as length A + length B. Remote Switch ©2017_MICROSENS GmbH & Co. KG_Küferstr. 16_59067 Hamm/Germany_www.microsens.com... -
Page 8: Application
Gigabit Ethernet Switch with PoE+ for Industrial Use Page 8/11 During 100 Mbps transmission, the maximum total cable length is 100 meter. During 1000 Mbps speed transmission, recommend maximum cable length less than 90 meter is more desired. Application ©2017_MICROSENS GmbH & Co. KG_Küferstr. 16_59067 Hamm/Germany_www.microsens.com... -
Page 9: Technical Specifications
-40° C to 85° C Rel. humidity 5% to 95% non-condensing EN 55022 class A, EN 55024 Shock EN 60068-2-27 Free fall EN 60068-2-32 Vibration EN 60068-2-6 Safety EN 60950-1 2014/30/EU EMC Directive 2011/65/EU RoHS Directive ©2017_MICROSENS GmbH & Co. KG_Küferstr. 16_59067 Hamm/Germany_www.microsens.com... -
Page 10: Standard Compliance
To avoid electric shock: Do not carry out installation or maintenance work during lightning storms. All electric installations must be carried out in accordance with local regulations. ©2017_MICROSENS GmbH & Co. KG_Küferstr. 16_59067 Hamm/Germany_www.microsens.com... -
Page 11: Order Information
-35°C..70°C MICROSENS reserves the right to make any changes without further notice to any product to improve reliability, function or design. MICROSENS does not assume any liability arising out of the application or use of any product. 0317sh...
