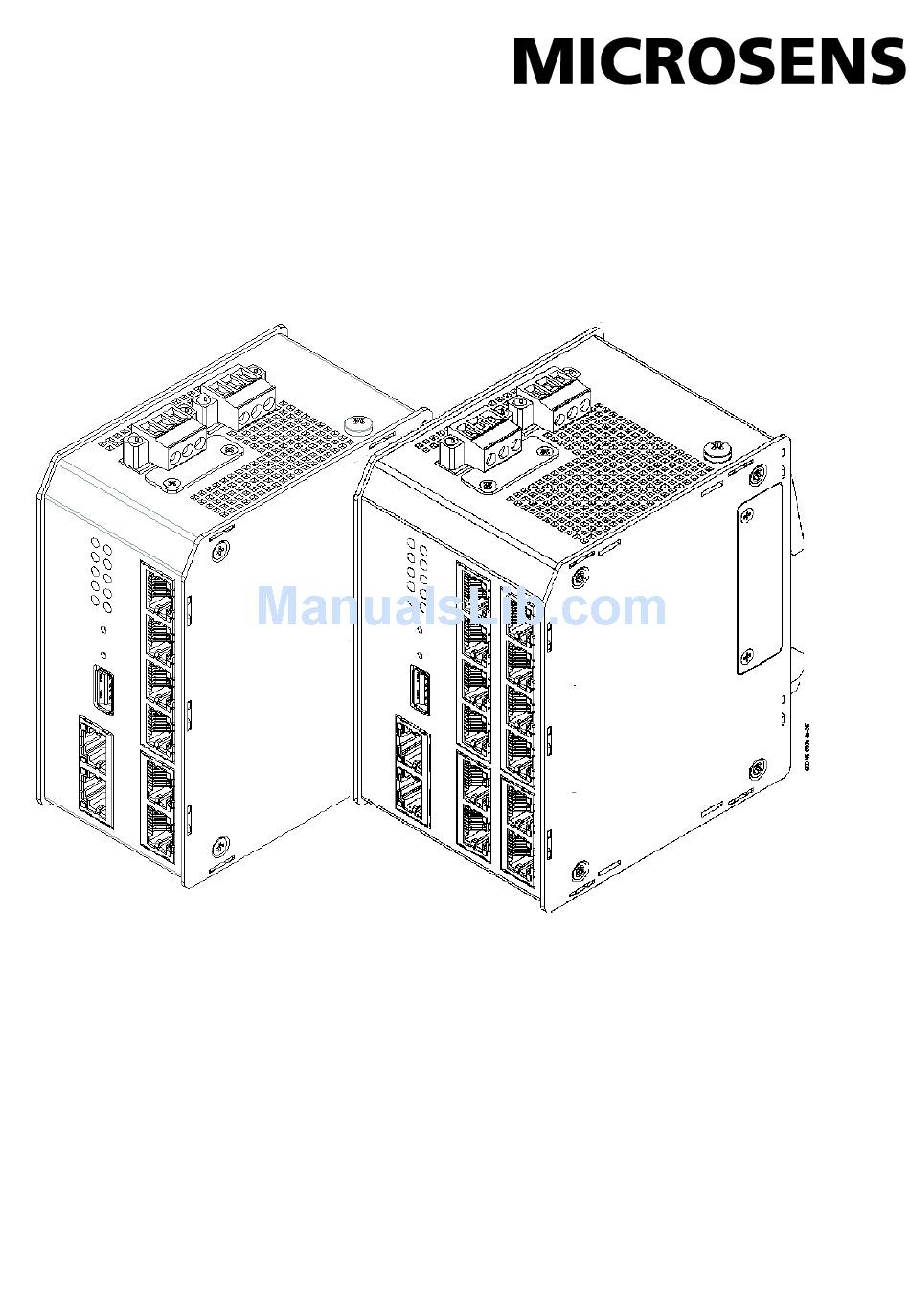

Page 1: Quick Start Guide
Quick Start Guide Commissioning Gigabit Ethernet industrial switch Profi Line Modular/Profi Line+ Generation 6 V.2.0.7.2 MICROSENS GmbH & Co. KG, Küferstraße 16, 59067 Hamm, Germany... - Page 2 ● setting up access to the network management, ● and configuring the ring protocol (media redundancy) For further documentation see the Web Manager or visit the MICROSENS website (see section 10). MICROSENS GmbH & Co. KG, Küferstraße 16, 59067 Hamm, Germany...
- Page 3 Mechanical handling ◊ Attaching an expansion module Note: Install the expansion module before you mount the switch on the hat rail. When combined, the switch and expansion modules support up to 25 ports. ● Place the switch on a steady surface, such as a table ●...
-
Page 4: Connecting The Power Supply
- Third-party SFP: 1000Base-X check the release notes for ● Ring function Turned off information about any ● VLAN filter Turned off changes to the factory settings before carrying out a firmware update. MICROSENS GmbH & Co. KG, Küferstraße 16, 59067 Hamm, Germany... -
Page 5: Operating Elements
‒ Link up, port open (able to send and receive data) Orange ‒ Link up, port blocked: Port Access Control (PAC), Spanning Tree (STP), MICROSENS Ring Protocol or Local Loop Protection have rejected the user Green blinking ‒ Port sending or receiving data Fig. 8 ●... -
Page 6: Network Management Access
● Click the button 'MAC-based Device Discovery' (please consider your firewall configuration) ◦ The software lists all MICROSENS switches within a subnet by their MAC addresses. ● Use the list to assign the IP parameters to the switch. Clicking the 'Send' button stores the information to the... - Page 7 > Support > Software tools A license key is required to operate this software. A test licence is available either from your MICROSENS products sales partner or directly from MICROSENS Sales (sales@microsens.de). Operating in ring mode The industrial switch ProFi Line Modular/Profi Line+ features the high-performance MICROSENS Ring Protocol to support the operation of a ring topology (copper or fiber-optic ring).
-
Page 8: Sd Memory Card
Ring ports You have a free choice of which physical ports operate as ring ports A and B. MICROSENS recommends that you choose the same slot for the ports of a ring. When operating two rings, always assign just one physical port to a ring port.
