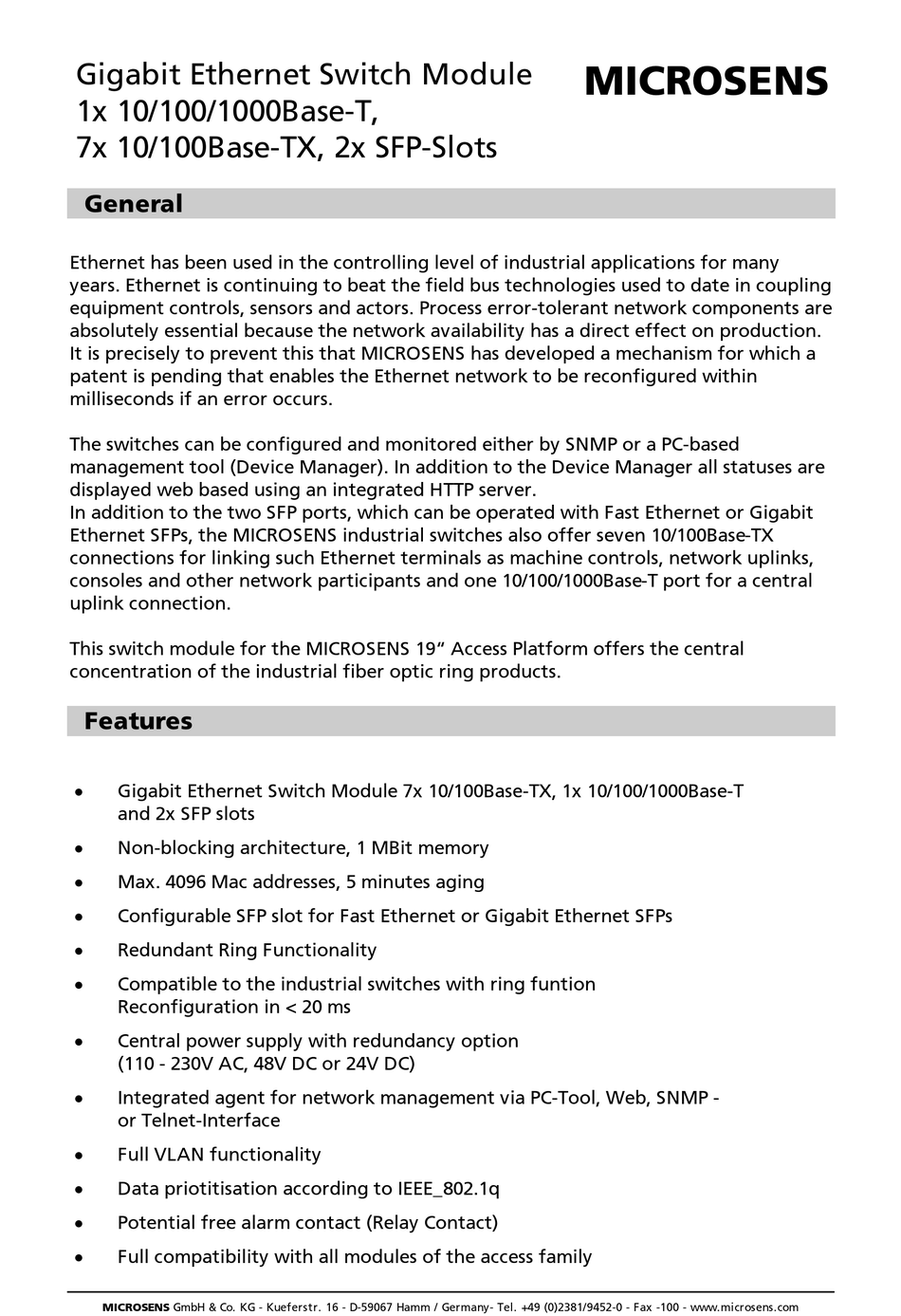

Gigabit Ethernet Switch Module
1x 10/100/1000Base-T,
7x 10/100Base-TX, 2x SFP-Slots
General
Ethernet has been used in the controlling level of industrial applications for many
years. Ethernet is continuing to beat the field bus technologies used to date in coupling
equipment controls, sensors and actors. Process error-tolerant network components are
absolutely essential because the network availability has a direct effect on production.
It is precisely to prevent this that MICROSENS has developed a mechanism for which a
patent is pending that enables the Ethernet network to be reconfigured within
milliseconds if an error occurs.
The switches can be configured and monitored either by SNMP or a PC-based
management tool (Device Manager). In addition to the Device Manager all statuses are
displayed web based using an integrated HTTP server.
In addition to the two SFP ports, which can be operated with Fast Ethernet or Gigabit
Ethernet SFPs, the MICROSENS industrial switches also offer seven 10/100Base-TX
connections for linking such Ethernet terminals as machine controls, network uplinks,
consoles and other network participants and one 10/100/1000Base-T port for a central
uplink connection.
This switch module for the MICROSENS 19" Access Platform offers the central
concentration of the industrial fiber optic ring products.
Features

Gigabit Ethernet Switch Module 7x 10/100Base-TX, 1x 10/100/1000Base-T
and 2x SFP slots

Non-blocking architecture, 1 MBit memory

Max. 4096 Mac addresses, 5 minutes aging

Configurable SFP slot for Fast Ethernet or Gigabit Ethernet SFPs

Redundant Ring Functionality

Compatible to the industrial switches with ring funtion
Reconfiguration in < 20 ms

Central power supply with redundancy option
(110 - 230V AC, 48V DC or 24V DC)

Integrated agent for network management via PC-Tool, Web, SNMP -
or Telnet-Interface

Full VLAN functionality

Data priotitisation according to IEEE_802.1q

Potential free alarm contact (Relay Contact)

Full compatibility with all modules of the access family
