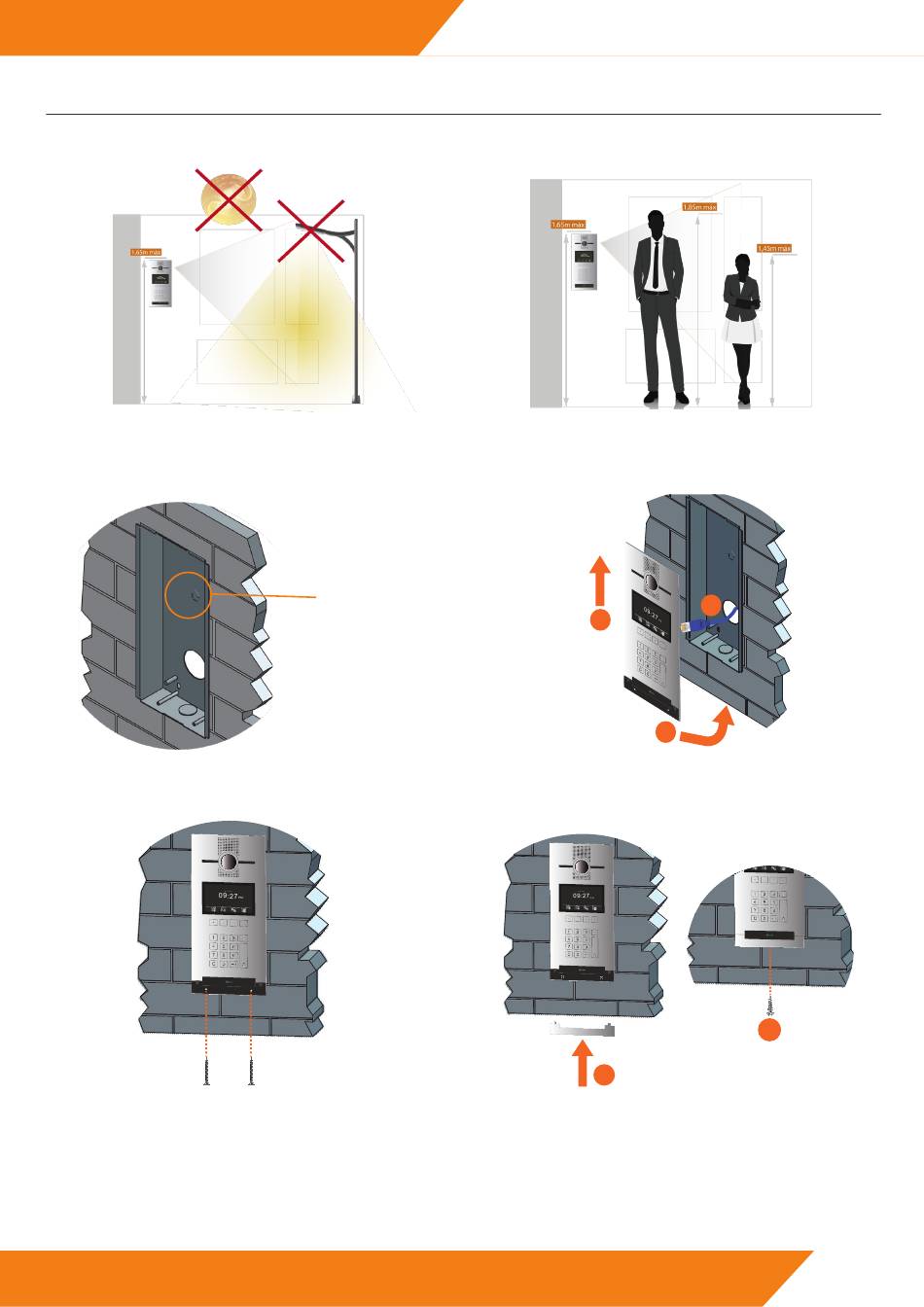

4. PANEL INSTALLATION

1 -Avoid locating the panel exposed to direct sun light or ex-
ternal light sources like streetlamps, to get a good image.
3- Make a hole in the wall where to fit the embedding box CE-
6502/G+. The dimensions of the hole are 128(W) x 306 (H) x 44
(D). Assure the box is fixed upside correctly.
5- Fix the bottom part of the panel using the screws supplied.
www.golmar.es
2- Locate the top part of the entry panel at 1,65m height from
ground.
4- Connect the ethernet cable (1) and hang the upper part of the
panel in the nails which protrude out of the box (2), then tilt the
panel to fit into the bottom part of the box.
Mind the embedding box orienta-
tion.
It is recommended to floow the
instructions andtips mentioned in
the embedding box mount guide:
(https://bit.ly/3incuSb)
6- Slide up the header supplied, to cover the bottom part of the
panel and tight the screws underneath.
(*) Header screw should be tight using the supplied tool.
