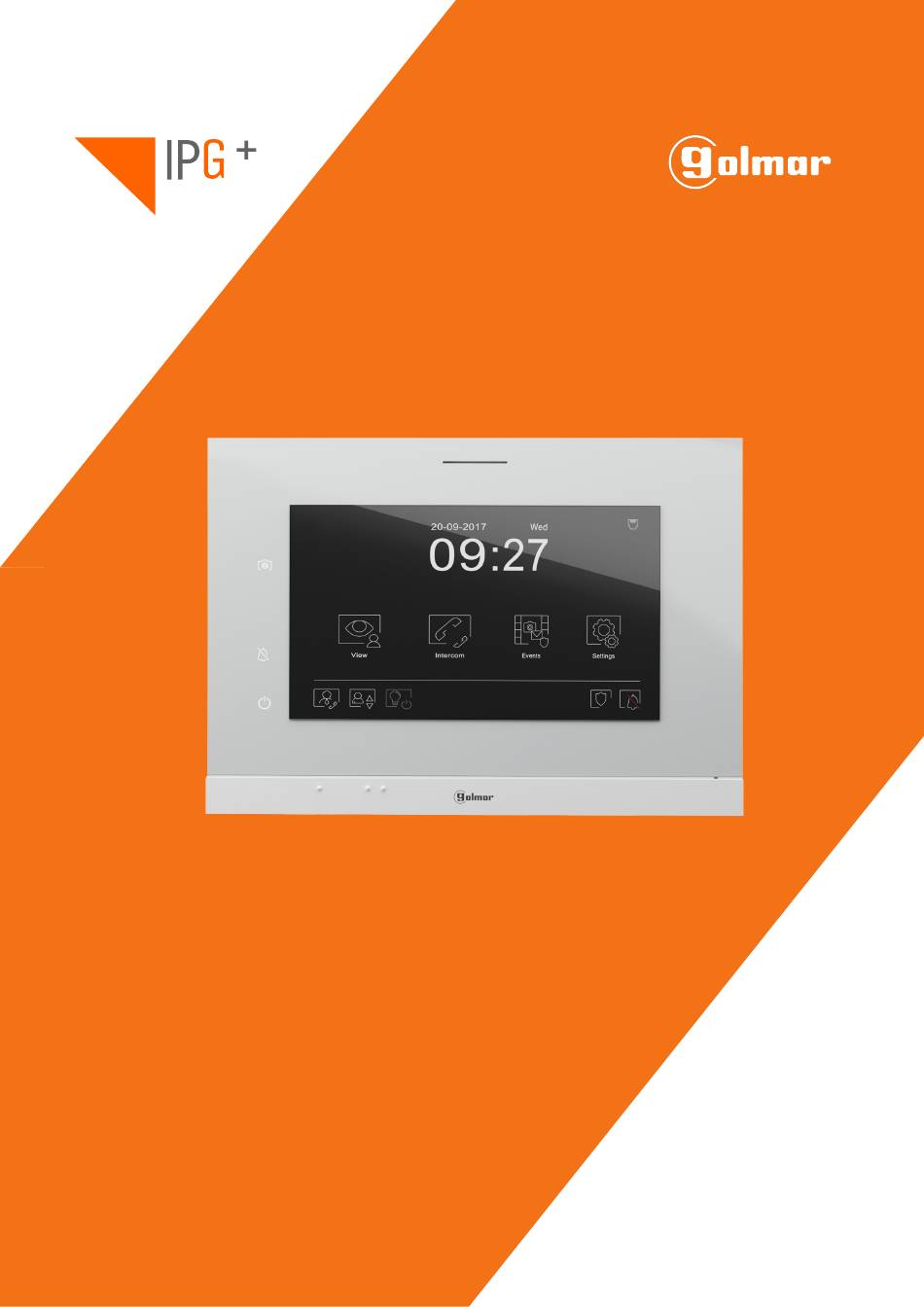

- Page 1 ART 7/G+/48 ART 7W/G+/48 INSTALLER MANUAL ART 7/G+/48 V01 REV.0121|ENGLISH...
-
Page 2: Table Of Contents
6.1. Settings .................................. 6 6.2. SIP Servers ................................6 6.3. About ..................................7 7. Settings ................................... 7 7.1. Address.................................. 8 7.2. Privacy ................................... 8 7.3. Guard..................................8 7.4. Devices .................................. 9 7.5. SIP ..................................9 7.6. Password ................................9 Footer Infos www.golmar.es... -
Page 3: Safety Cautions And Warnings

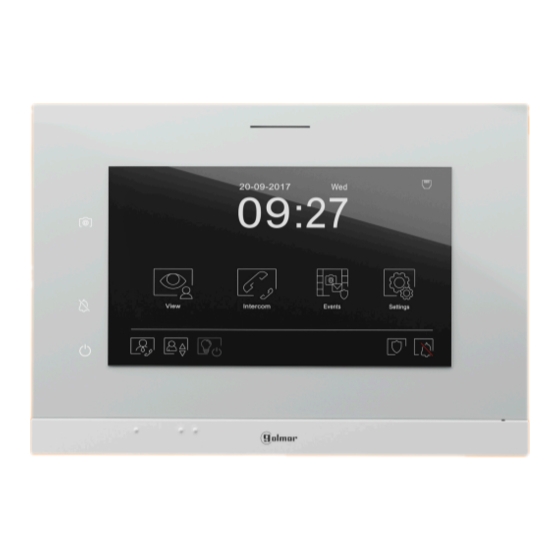

Status leds. Visualizar Intercomunicación Eventos Ajustes Microphone. - Back side: MONITOR IP 7” ART 7/G+/48 12310704 Supply voltage selector GOLMAR S.A. C/ Silici, 13 DUAL 08940 - SPAIN jumper. RJ45 connector. Alarm input connectors. PCM/G+ connector(*) 12V local supply connector. HZ(**) -
Page 4: Jumper Description
Add ART 7/G+/PCM DUAL POE y ART 7W/G+/PCM DUAL POE video units if you want the apartment unit has a PCM/G+ private call panel. • In case of a daisy-chain distribution of the devices (IN/OUT), use DCP/G+ injectors with the FA-DC48/G+ power supply and Ethernet DCS/G+ switches in monitors. www.golmar.es... -
Page 5: Initial Configuration
10.0.0.254. If the device is already configured we must enter the IP address that the system automatically assigned or we manually assigned. Type the IP address in the web browser: Log in the Web Client: The password to access is 888999. www.golmar.es... -
Page 6: Settings
Enabled Name grandstream- 10.0.128.8 IP Address Transmission port 5060 Port Normally is the 5060. 1000 User Created user and password in the PABX ***** Password Transmission mode* *Transmission mode 0 IP - 1 to 30 SIP Servers Apply Delete www.golmar.es... -
Page 7: About
To return the monitor settings to factory values, we must press on the icon located on the bottom right in the screen. It will appear the following screen and we must confirm the restore to factory values of the monitor settings. Reset all settings? Sistema www.golmar.es... -
Page 8: Address
With regard to the guard unit settings, we will be able to set to which address we will call when we press the direct call to the guard icon from the main screen of the monitor. We will also be able to enable the reception of alarms by the general concierge when these occur. Guard Direct call button Block number Unit address Notify alarm alerts Sistema www.golmar.es... -
Page 9: Devices
Sistema 7.6. Password To finish with the system settings menu, we will emphasise in the “Password” section which allows us to change the password to access the system settings of the monitor. Password **** Contraseña Enter new password Sistema www.golmar.es... - Page 10 Sistemas de comunicación S.A. C/ Silici 13. Poligon Industrial Famadas 08940 – Cornellà del llobregat – Spain golmar@golmar.es Telf: +34 934 800 696 www.golmar.es...
