Installation - Eltek Valere Flatpack2 Quick Start Manual

Installing Rectifiers and Opening Smartpack2 Master
!
Device
Hazard
Flatpack2
rectifier
Handle
in unlocked position
Screwdriver
to release the
locking tabs
Blind panel's upper
locking tabs
Opening and Closing Smartpack2 Master Controller
Opening the controller's right side enables inserting an SD card
and temporarily connecting an Ethernet cable.
1. To open it,
pull the handle's knob slightly outwards
(use your fingers or a pen) and
2. then slide the handle to the left
(the controller's right side opens)
3. To close it,
push the controller's front inwards
Quick Start Guide Flatpack2 PS System, 4U, SP2-based
CAUTION:
- The rectifiers may be warm, but do not hand-carry them by their handles
- Open the handles before inserting them into the power shelves (hot-pluggable)
The rectifier incorporates a Mains fuse in each line. Double Pole / Neutral Fusing

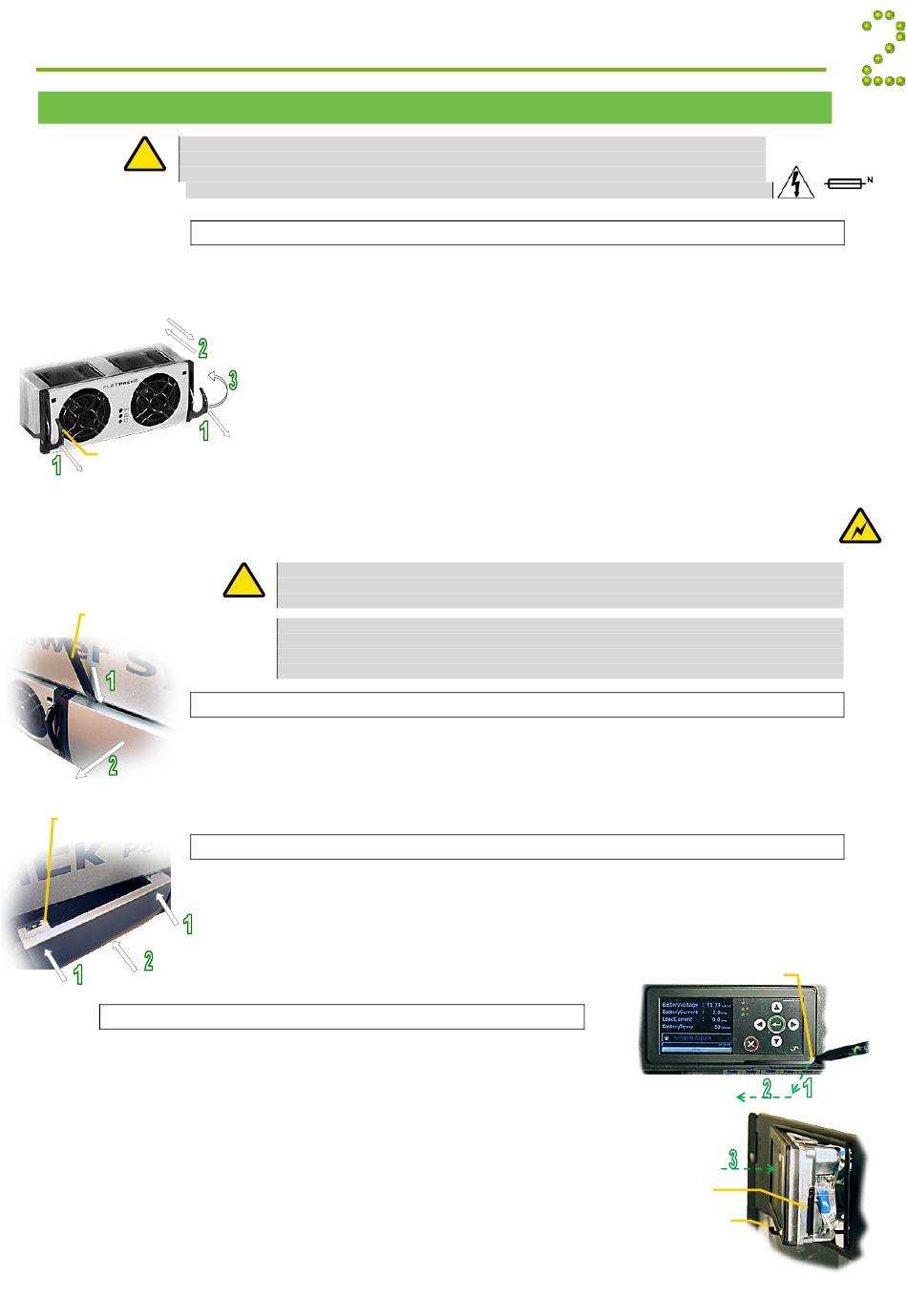

Mounting or Removing Flatpack2 Rectifiers
For an overview of available rectifiers, refer to "User Guide Flatpack2 Rectifier
Modules", document 350002.013.
1. Unlock the handles by
inserting a screwdriver into the holes to release the spring mechanism
2. Insert or remove the rectifier by
sliding it fully into the power shelf, so that it makes proper contact
or
using both handles to pull the module loose. Support from underneath
before the unit is completely free
3. Lock the handles by
pushing the handles up into their housings (locked position). Then, the
rectifier will be securely locked in the shelf, or ready for transport
4. Mount blind panels in
unused rectifier locations
CAUTION: Do not relocate already hot-plugged rectifiers to other positions in the power
!
shelf. New rectifiers must be hot-plugged in the power shelf, one at time, starting from ID
number 1, 2, 3 and so on; refer to page 19.
Device
Hazard
WARNING: To replace installed rectifiers with new ones, remove the installed rectifiers and
wait for the controller to notify communication error with the extracted rectifiers. Push the new
rectifiers fully into the power shelf — one module at a time, allowing a 2s delay. Start with the
shelf position with lowest ID number. Lock their handles.
Removing Blind Panels
1. Release the panel's upper left and right corners by
inserting a small screwdriver into the panel's upper left gap and carefully press
down and out to release the locking tabs. Repeat on the upper right gap.
2. Remove the blind panel by
using you hand to pull the panel loose
Mounting Blind Panels
1. Insert the panel's upper edge by
pressing gently so that its upper locking tabs engage
2. Lock the panel's lower edge by
pressing with your hand so that the blind panel's lower tabs lock into position.

Installation

Handle in locked position
Smartpack2 Master
controller (locked)
SD card
Handle in open
position
Smartpack2 Master
controller (open)
356825.103, 2v0 -2011-09
